A/T - KM170 Manual Control Shaft Modification
87mitsubishi01SUBJECT:
KM170-SERIES AUTOMATIC TRANSMISSION MANUAL CONTROL SHAFT MODIFICATION
NO. STB-87-21-020
DATE September, 1987
MODEL 1987 Galant, Mirage, Cordia/Tredia

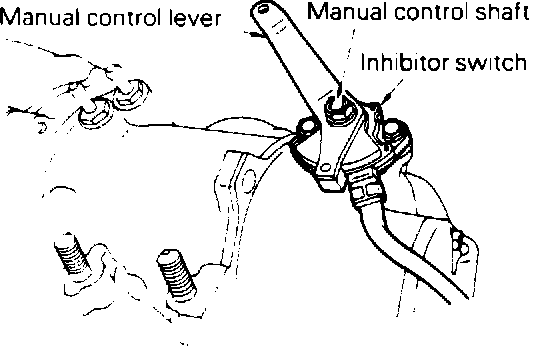

FIGURE 1:
PURPOSE
To improve shift feeling of the KM170-series automatic transmission in 1987 Galant, Mirage and Cordia/Tredia vehicles, the manual control shaft has been modified (Figure 1).
EFFECTIVE TRANSMISSION NUMBER
The modified shaft has been added to production vehicles beginning with the following transmission number.
From Transmission Number BV2867

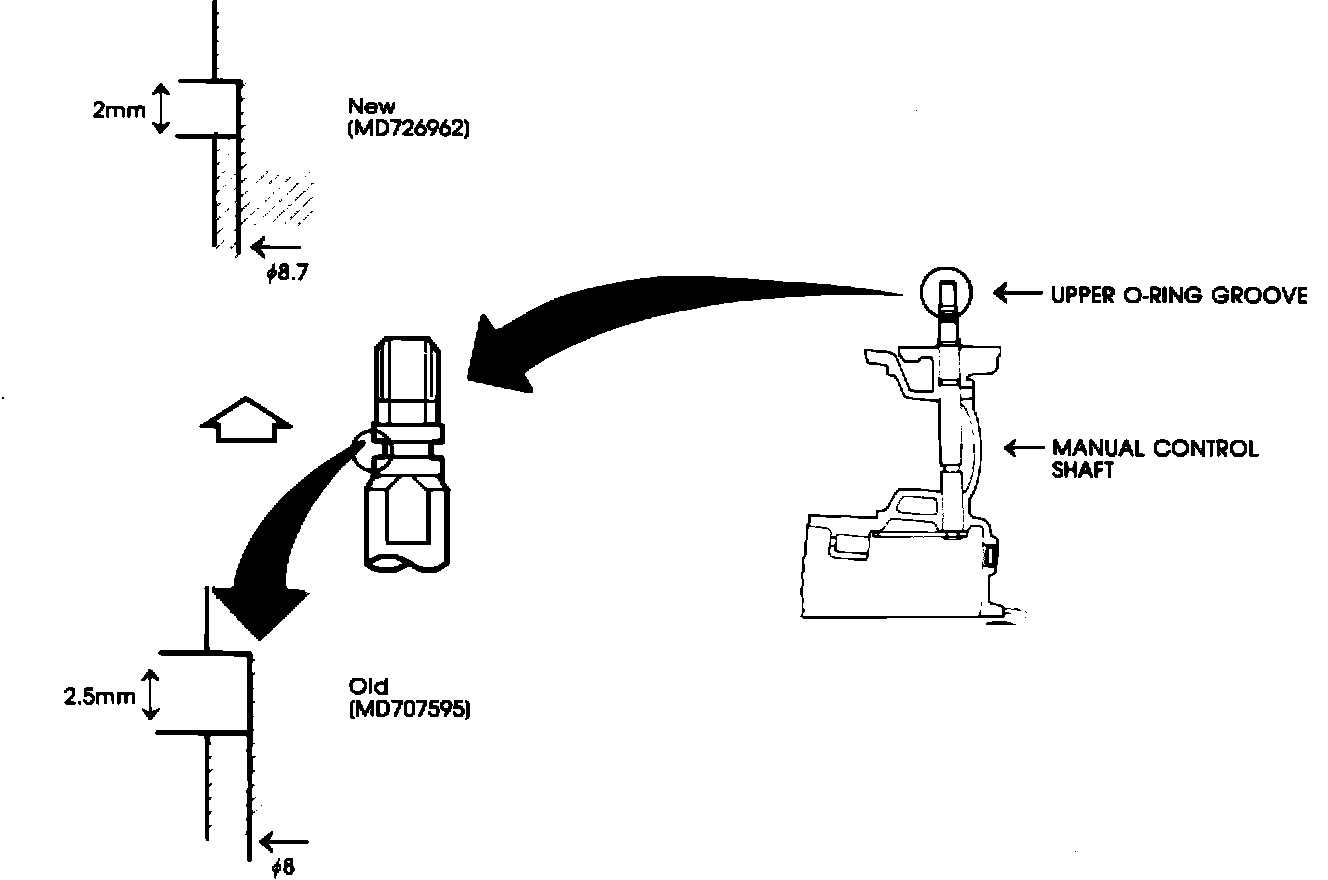

FIGURE 2:
MODIFICATION DETAILS
^ The upper O-ring groove in the manual control shaft has been modified as shown in Figure 2.
^ As a result of the O-ring groove change, the upper O-ring (smaller of two) has also been changed.

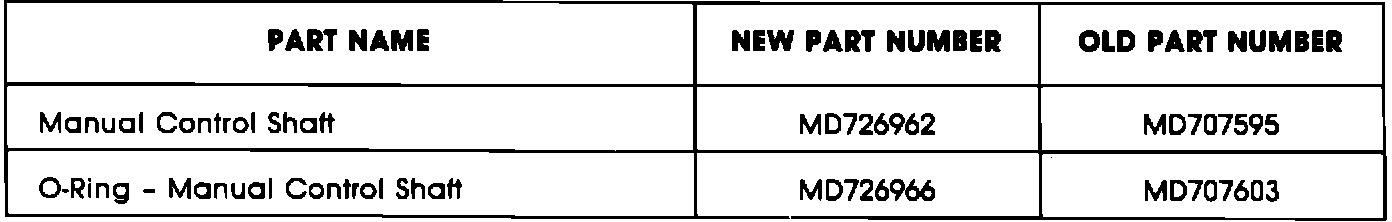

PARTS INFORMATION
Interchangeability
Yes, new replaces old when manual control shaft and upper O-ring are replaced as a set.
