SUBJECT:

MIRAGE FBC CIRCUIT CORRECTION - SERVICE MANUAL UPDATE
NO. TSB-88-08-008

DATE May, 1988

MODEL 1987-1988 Mirage
TSB Revision: TSB-88-08-008

PURPOSE

This bulletin contains corrections to the FBC (feedback carburetor) system circuit wiring diagram in the 1987 and 1988 Mirage Service Manuals, Volume 2. As reference to this bulletin, please write the TSB number in the revision boxes on page 8-50 in the 1987 Mirage Service Manual, Vol. 2 and page 8-54 in the 1988 Mirage Service Manual, Vol. 2.

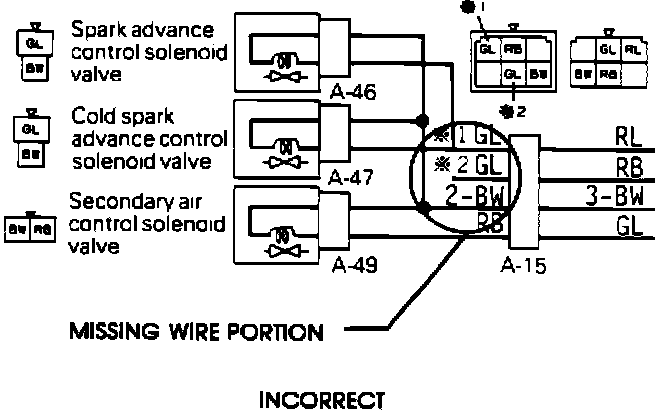

FIGURE 1:

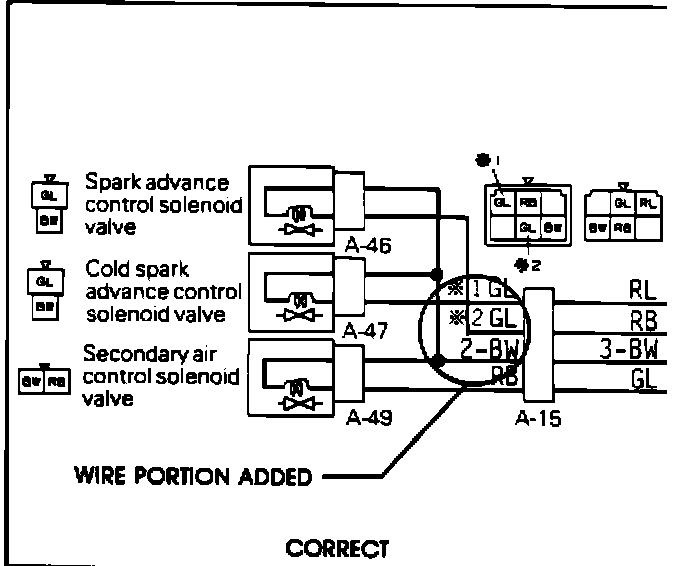

FIGURE 2:

SERVICE MANUAL CORRECTION

In the diagram of the FBC system circuit, a portion of the GL wire (*2) for the spark advance control solenoid valve near connector A-15 is missing as shown in Figure 1. The corrected diagram is shown in Figure 2. Please correct your Service Manuals by drawing in the missing wire portion as shown in Figure 2.
