Home >> Mitsubishi >> 1987 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Bowl Vent Valve >> Locations

Bowl Vent Valve: Locations

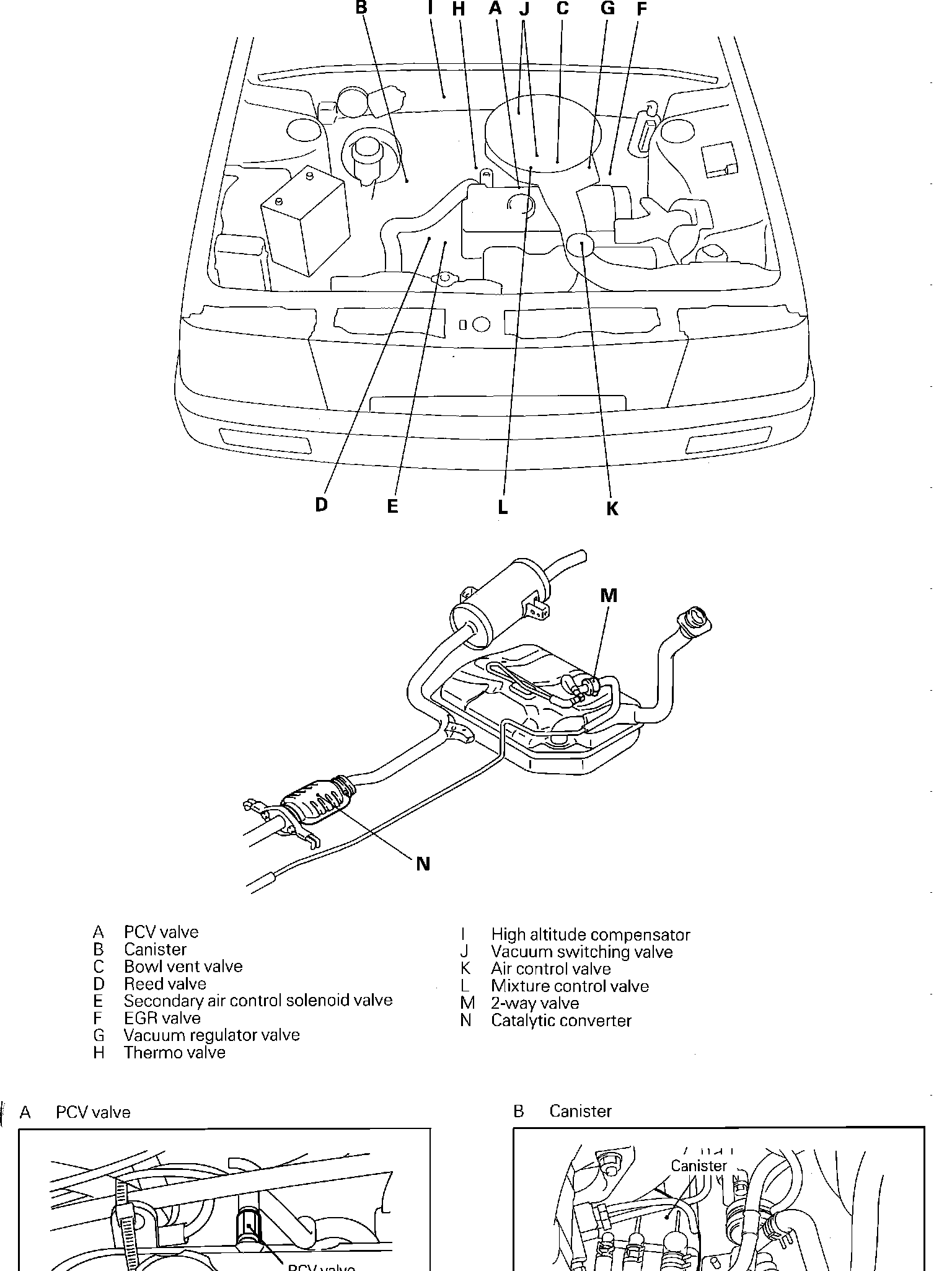

ѣ�0�7�0Fig. 68 Component Locations:
