Complete Emission Control Sys. Diagram (Calif.)
Complete Emission Control Sys. Diagram (Calif.)

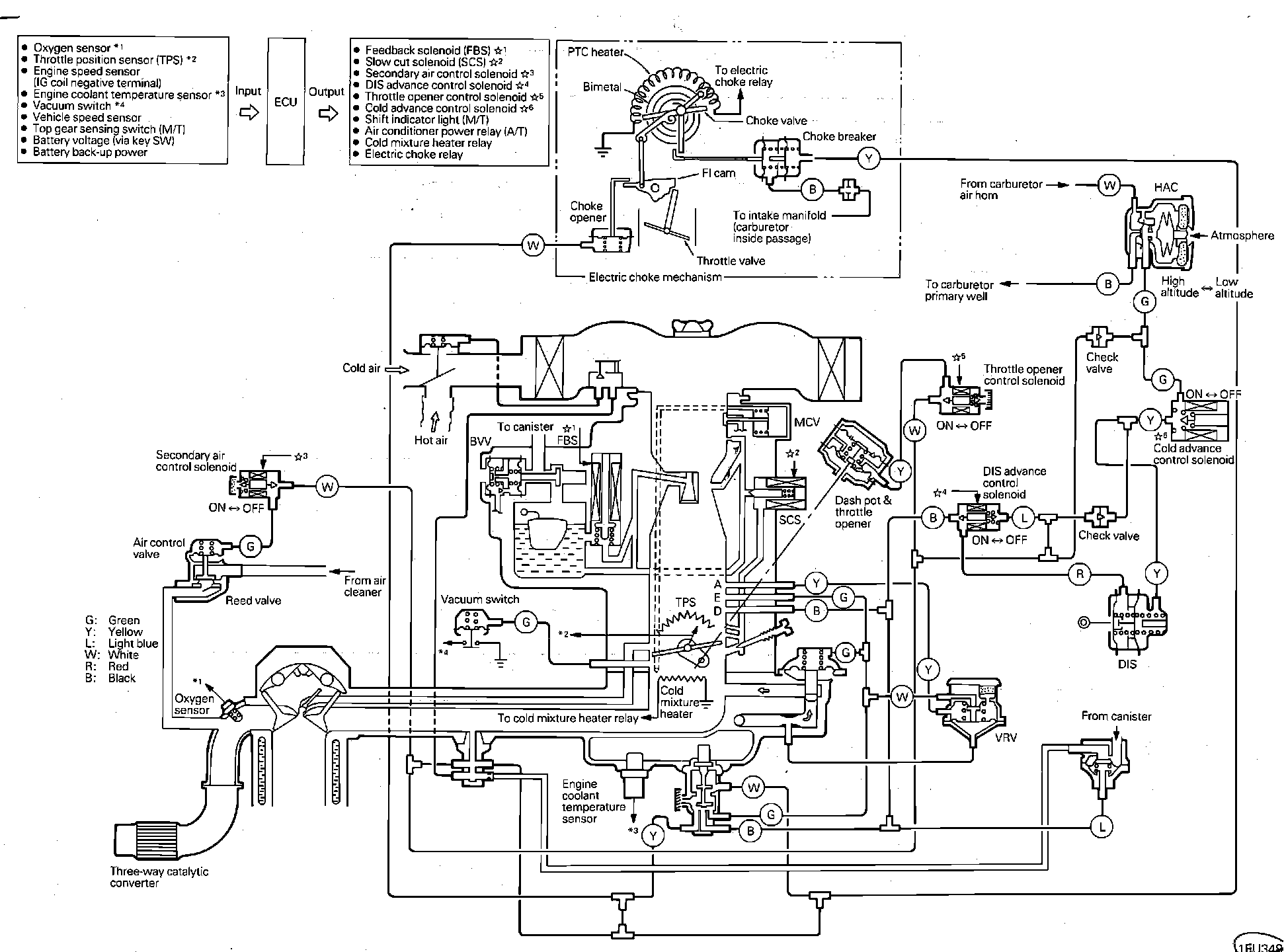

Fig. 502 Complete emission control system diagram (California):
