M/T - Synchro Ring Update
No.: TSB-88-21-029DATE: November, 1988
MODEL: Galant, Sigma, Mirage
SUBJECT:
SYNCHRONIZER RING CHANGE IN KM SERIES MANUAL TRANSAXLES
[TSB Revision: TSB-88-21-029]
PURPOSE
Beginning in October of 1987, the KM series manual transaxles have synchronizer ring cones which are 1 mm smaller than those previously used. This bulletin describes the changes and has charts to be used when replacing the synchronizer rings and speed gears.
AFFECTED VEHICLES
1988 Galant Sigma with KM210 manual transaxle
1987 Galant with KM210 manual transaxle
1988 Mirage with KM201, KM206 manual transaxle
1987 Mirage with KM200, KM201, KM206 manual transaxle
NOTE:

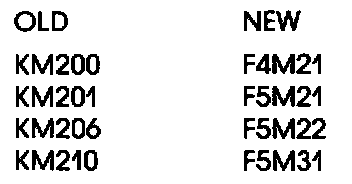

Under the new transmission numbering system (TSB-88-21-024) these transaxles are designated:
AFFECTED SERVICE MANUALS
1988 Galant Sigma Service Manual Vol.1, pages 21-34, 21-36, 21-41
1987 Galant Service Manual Vol.1, pages 21-31, 21-33, 21-39
1988 Mirage Service Manual Vol.1, pages 21-44, 21-46, 21-51, 21-56
1987 Mirage Service Manual Vol.1, pages 21-42, 21-44, 21-50, 21-56
As a reference to this bulletin, write "TSB-88-21-029" in the Revision Box at the top of these pages.
DETAILS OF CHANGE
All of the synchronizer ring cones and speed gear cones in the KM200
series transaxles were reduced in size 1 mm beginning October, 1987.
NOTE:
If the large end of the synchronizer ring cone measures 54, 63, or 72 mm, you are working on an older transaxle. If the cone measures 53, 62, or 71 mm at the large end, it is a newer unit.
INTERCHANGEABILITY
New parts are useable on older vehicles when synchronizers and speed gears are replaced as a set.
New parts can be replaced individually on newer vehicles.
Old parts can not be used on newer vehicles.
Use the charts to identify which parts should be used when replacing or repairing synchronizers or speed gears on KM200 series transaxles.

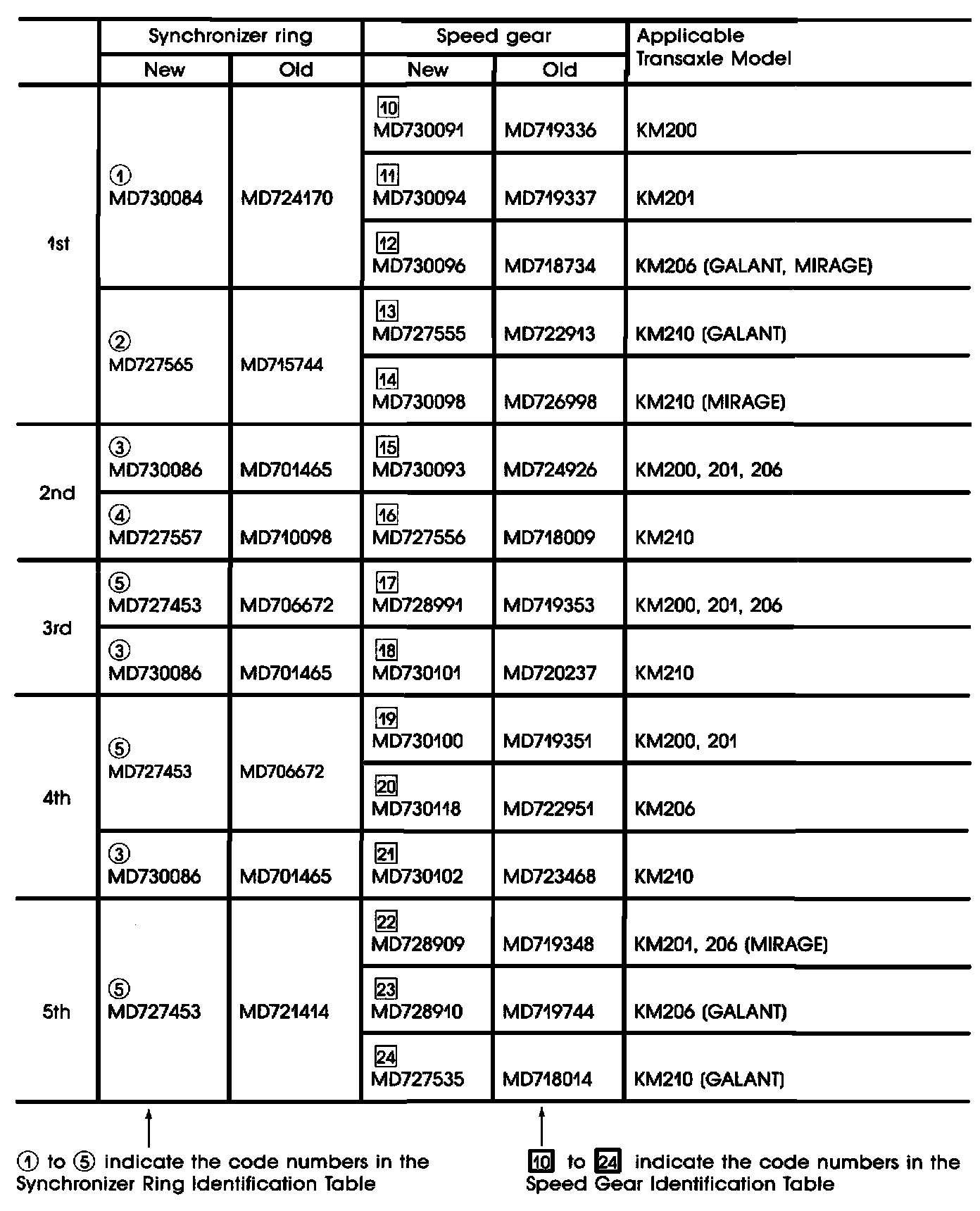

Old and New Part Numbers Identification Table

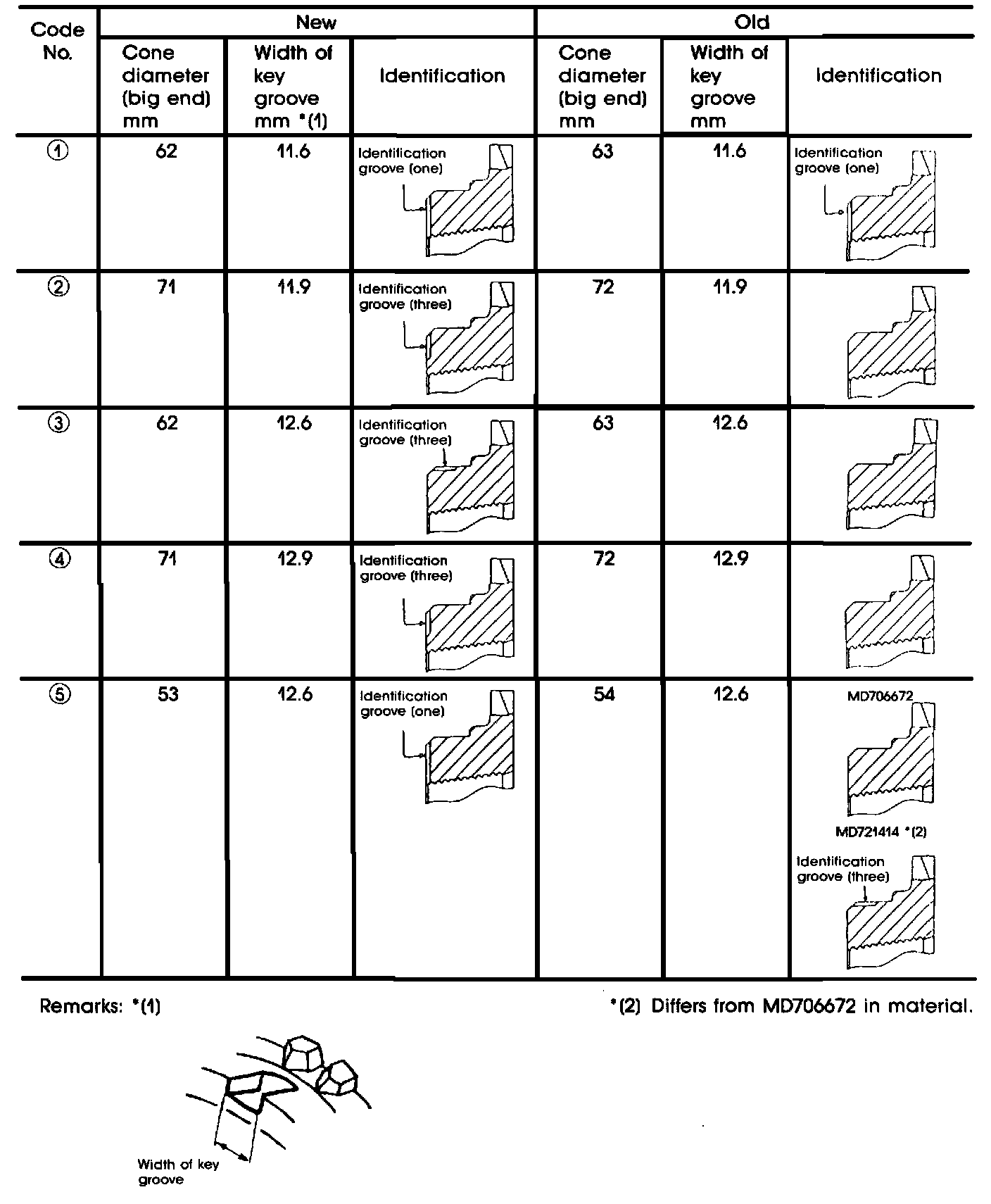

Synchronizer Ring Identification Table

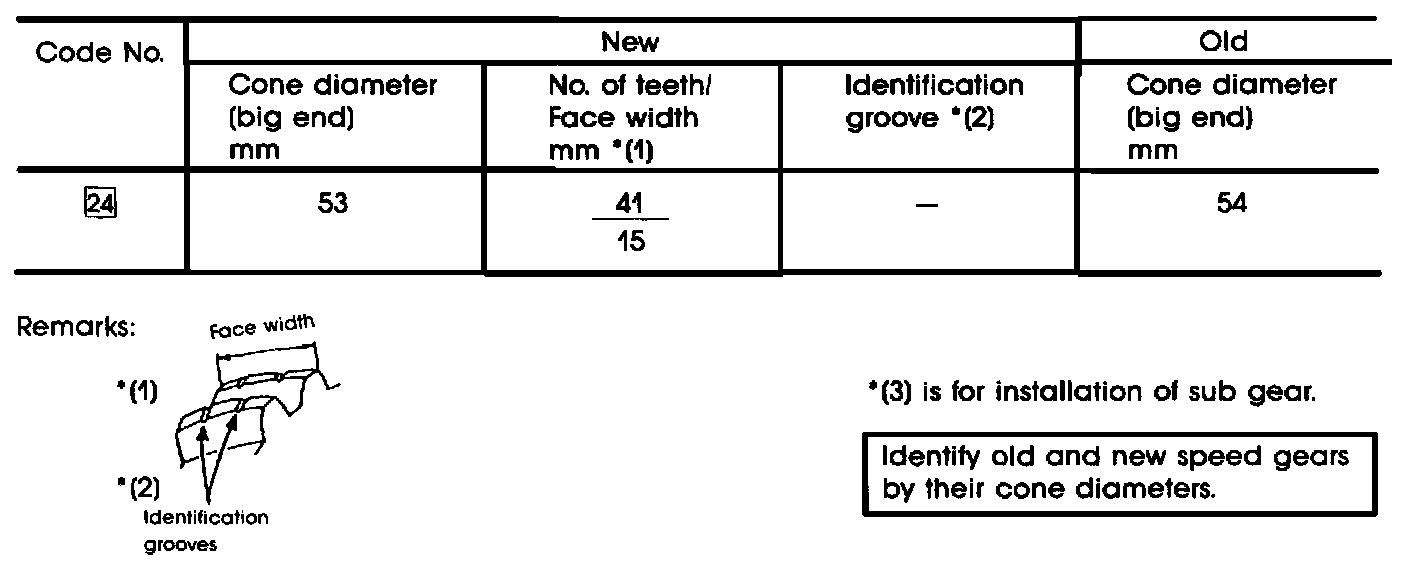

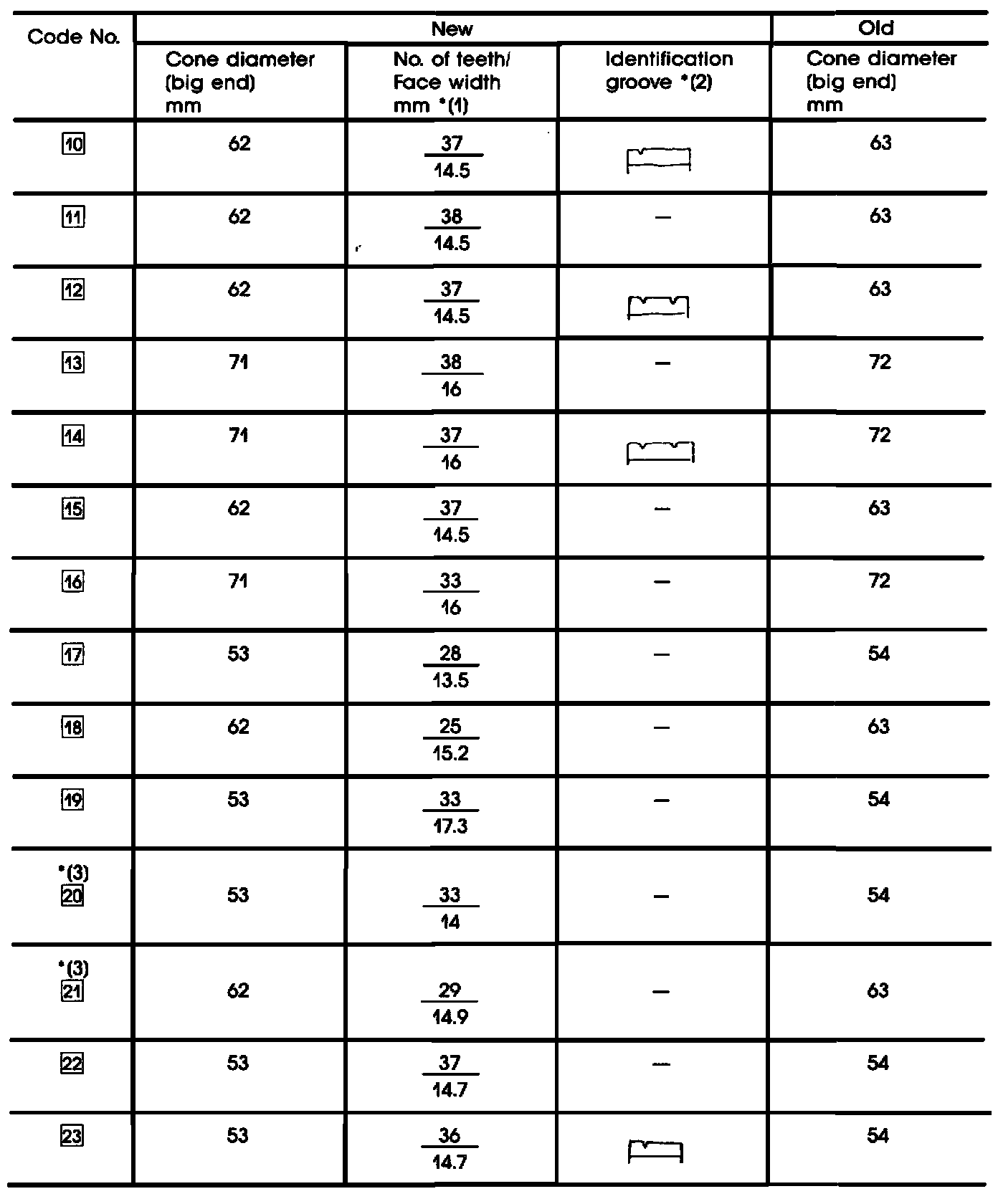

Speed Gear Identification Table
