Malfunction Code 7
Malfunction Code 7

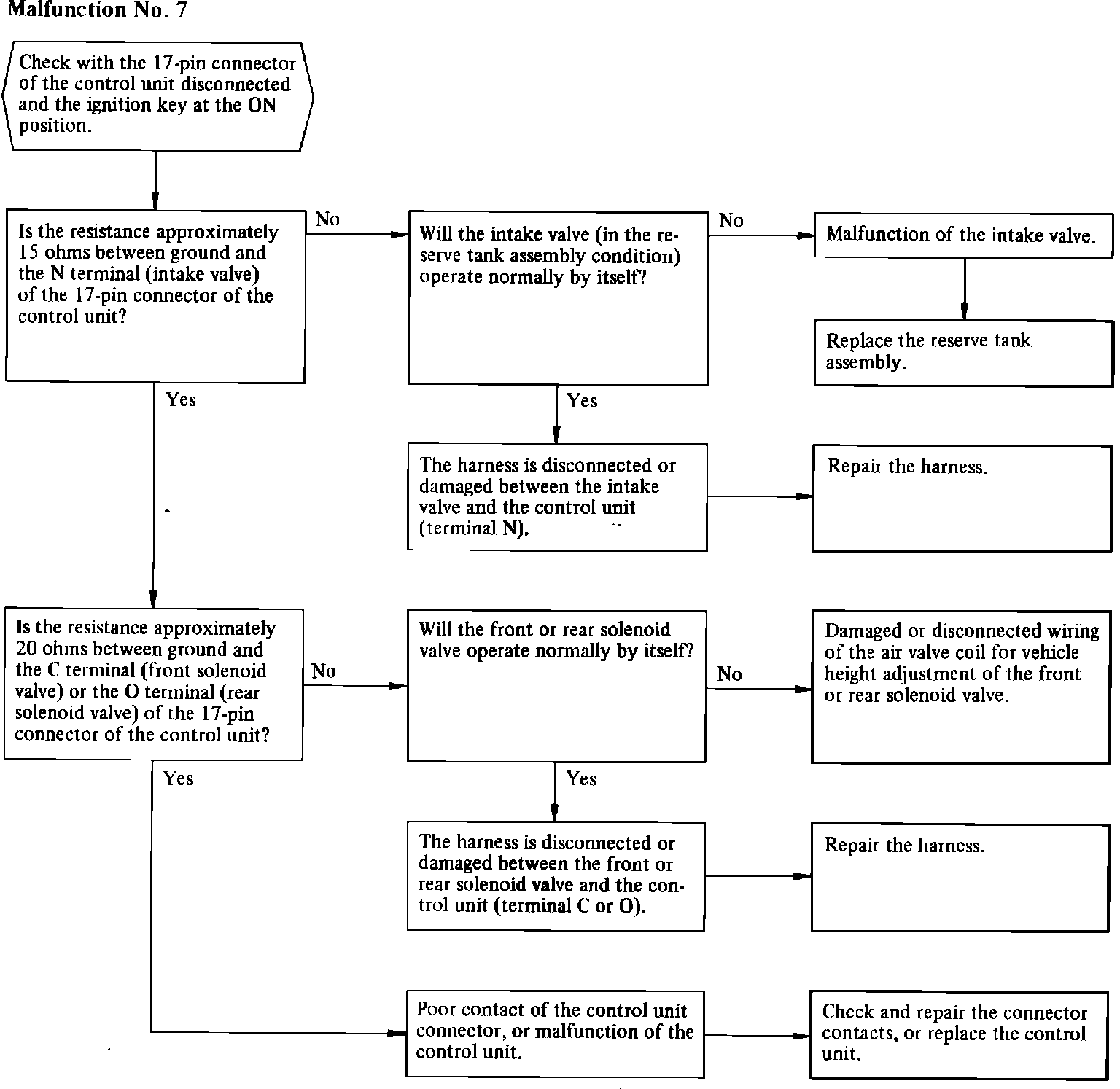

Fig. 11 Troubleshooting by using self-diagnosis output patterns (Part 6 of 8):
