Home
>>
Mitsubishi
>>
1987
>>
Galant L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Testing and Inspection
>>
Troubleshooting By Using Output Patterns
>>
Malfunction Code 10
Malfunction Code 10

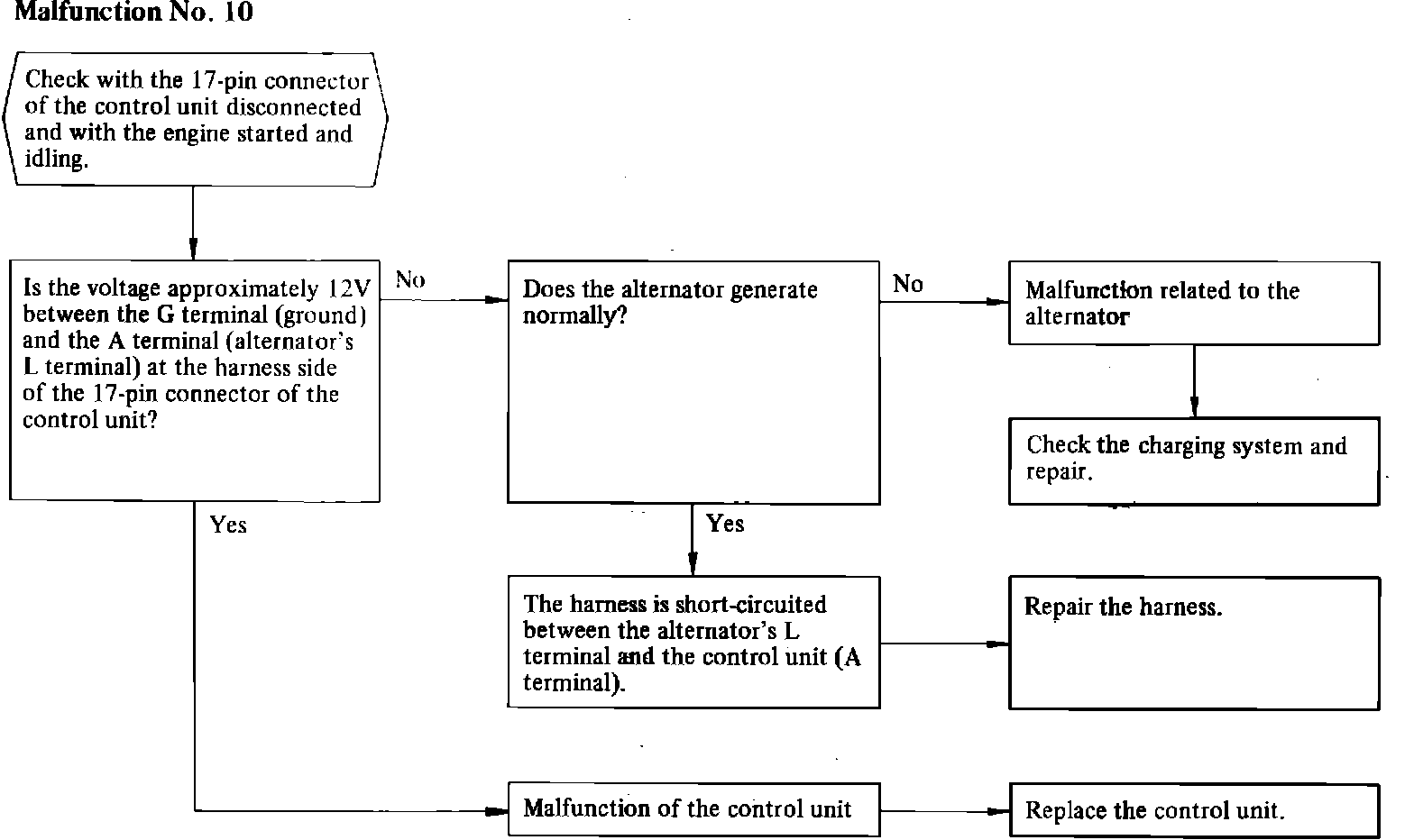

Fig. 11 Troubleshooting by using self-diagnosis output patterns (Part 8 of 8):
