Connector Locations

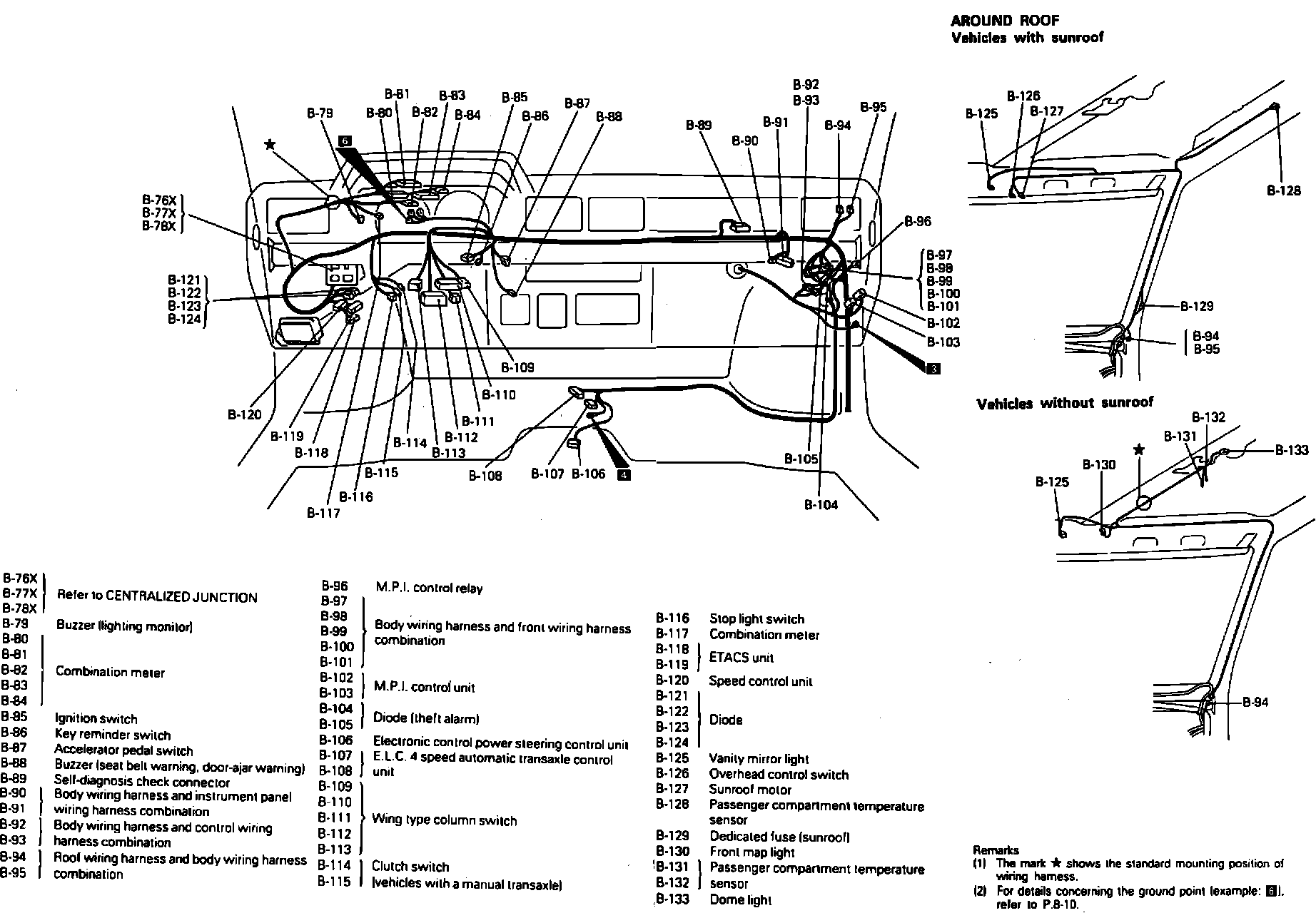

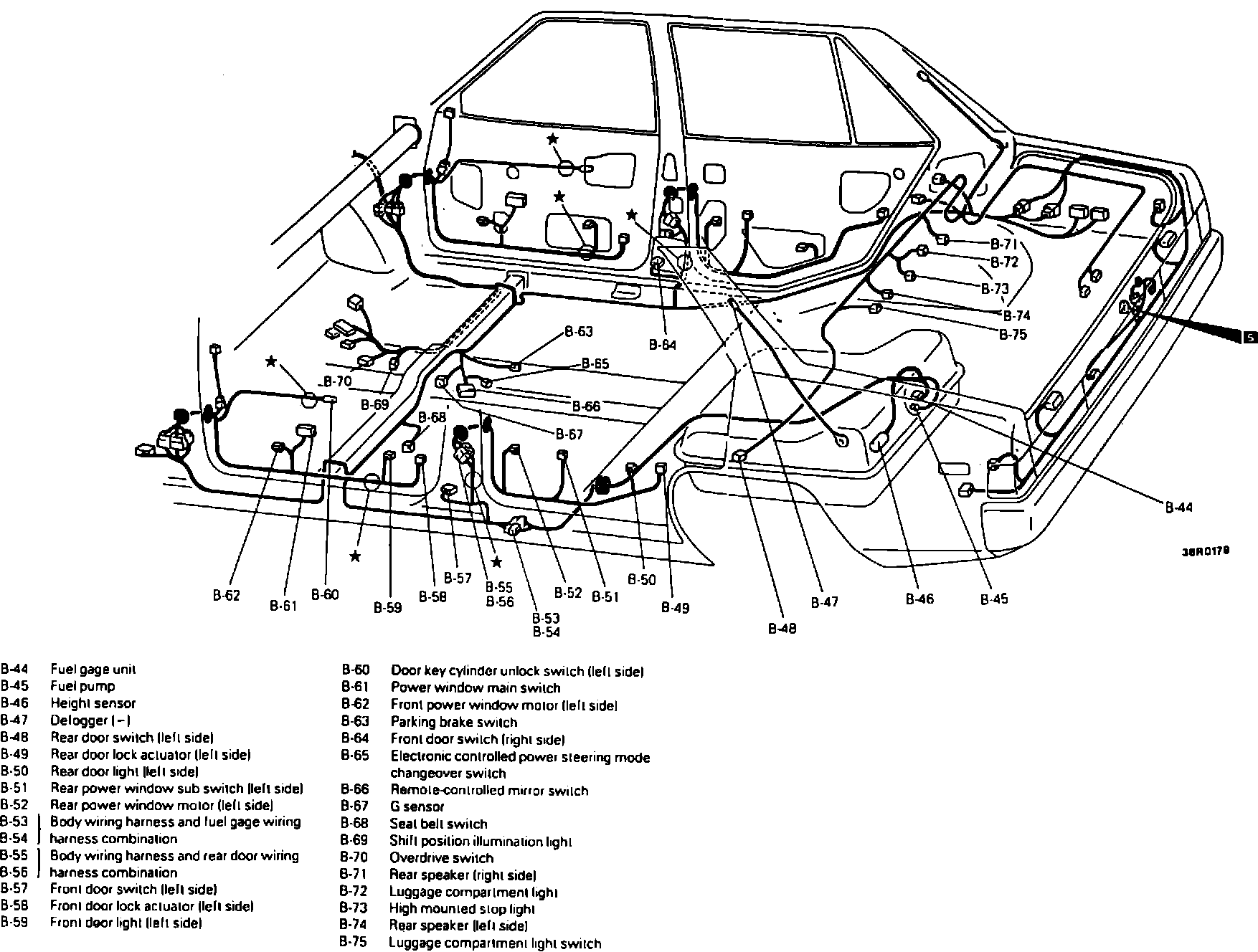

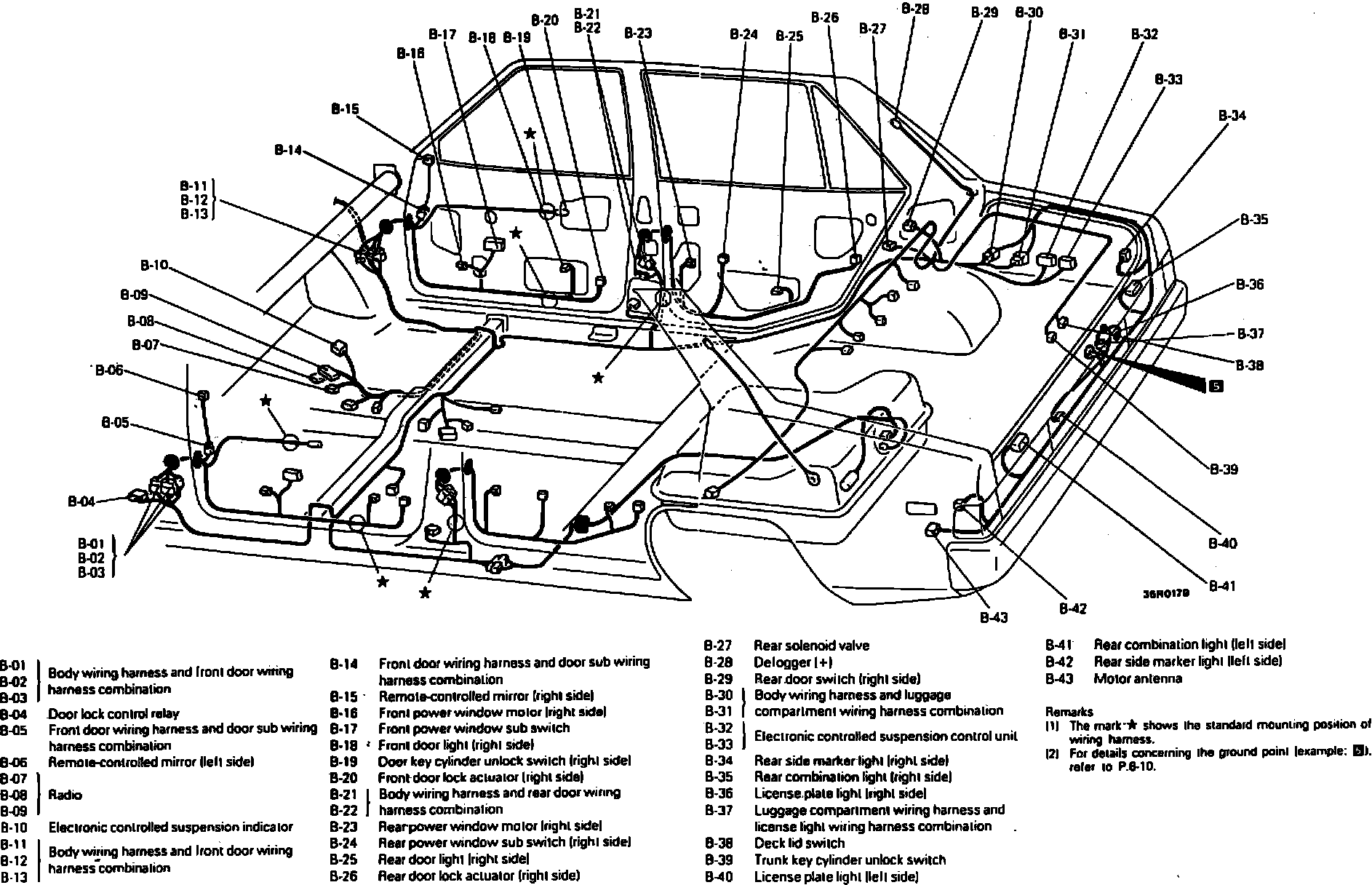

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

B107, Lower Center Of I/P

Applicable to: 1987 Galant

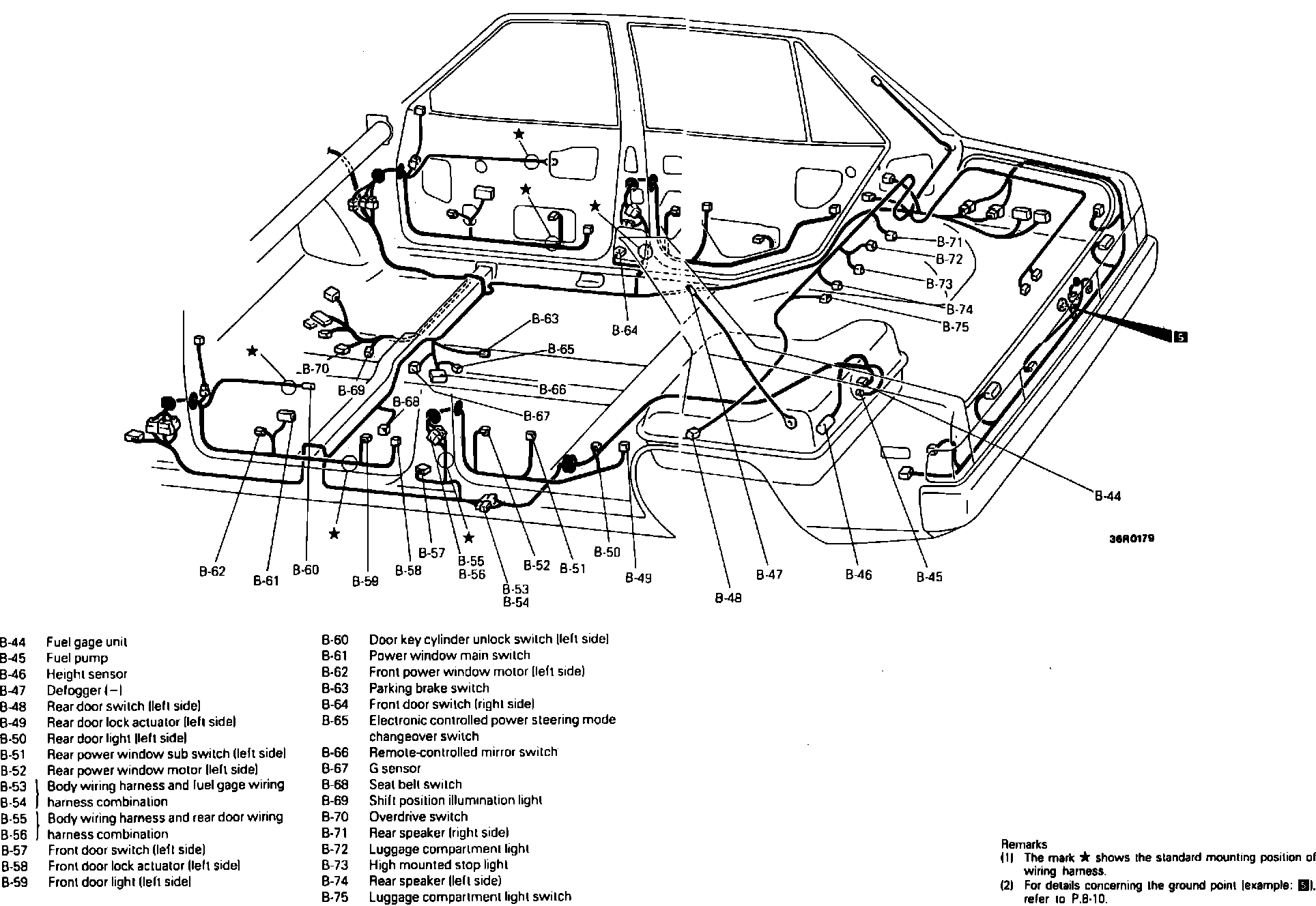

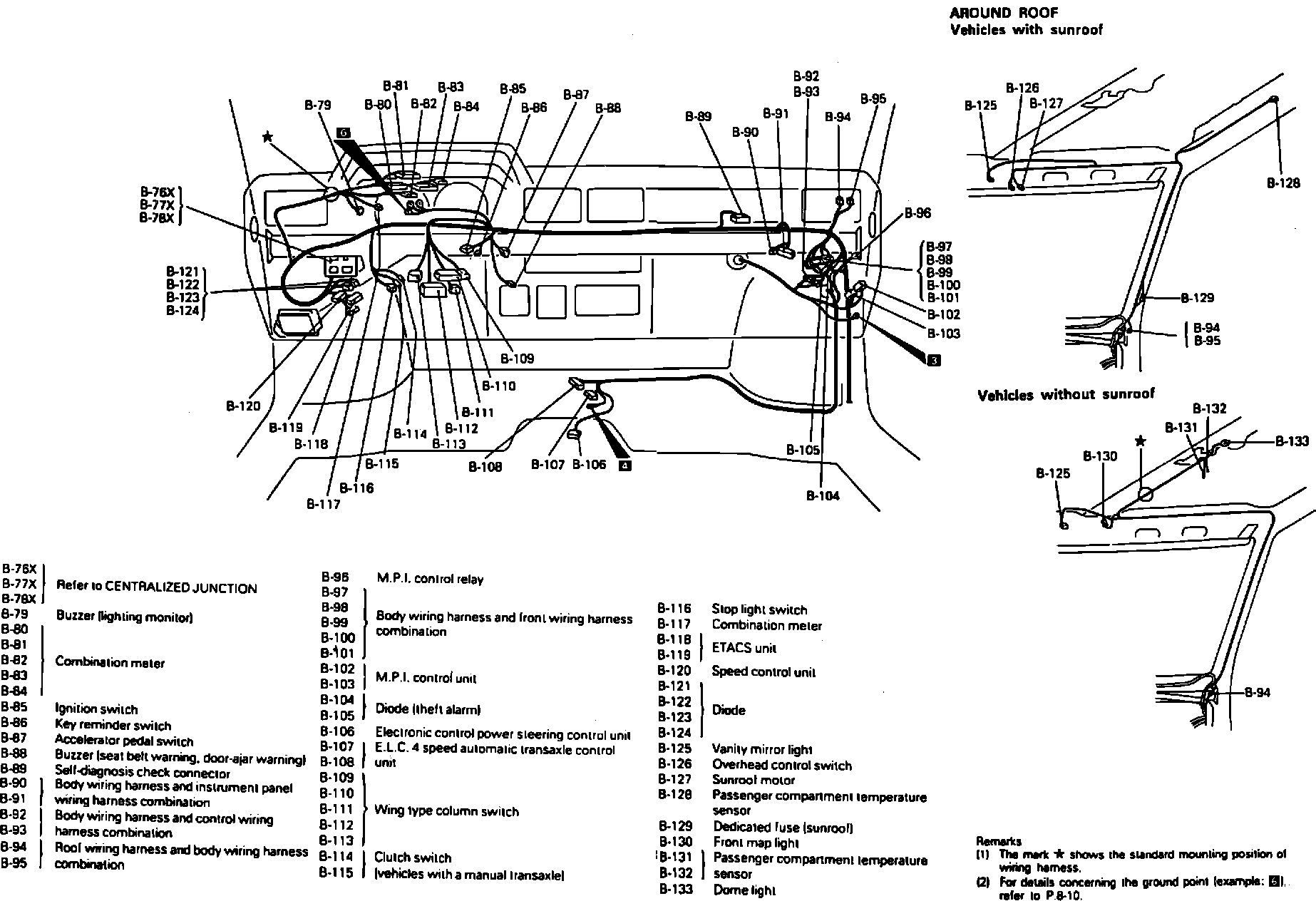

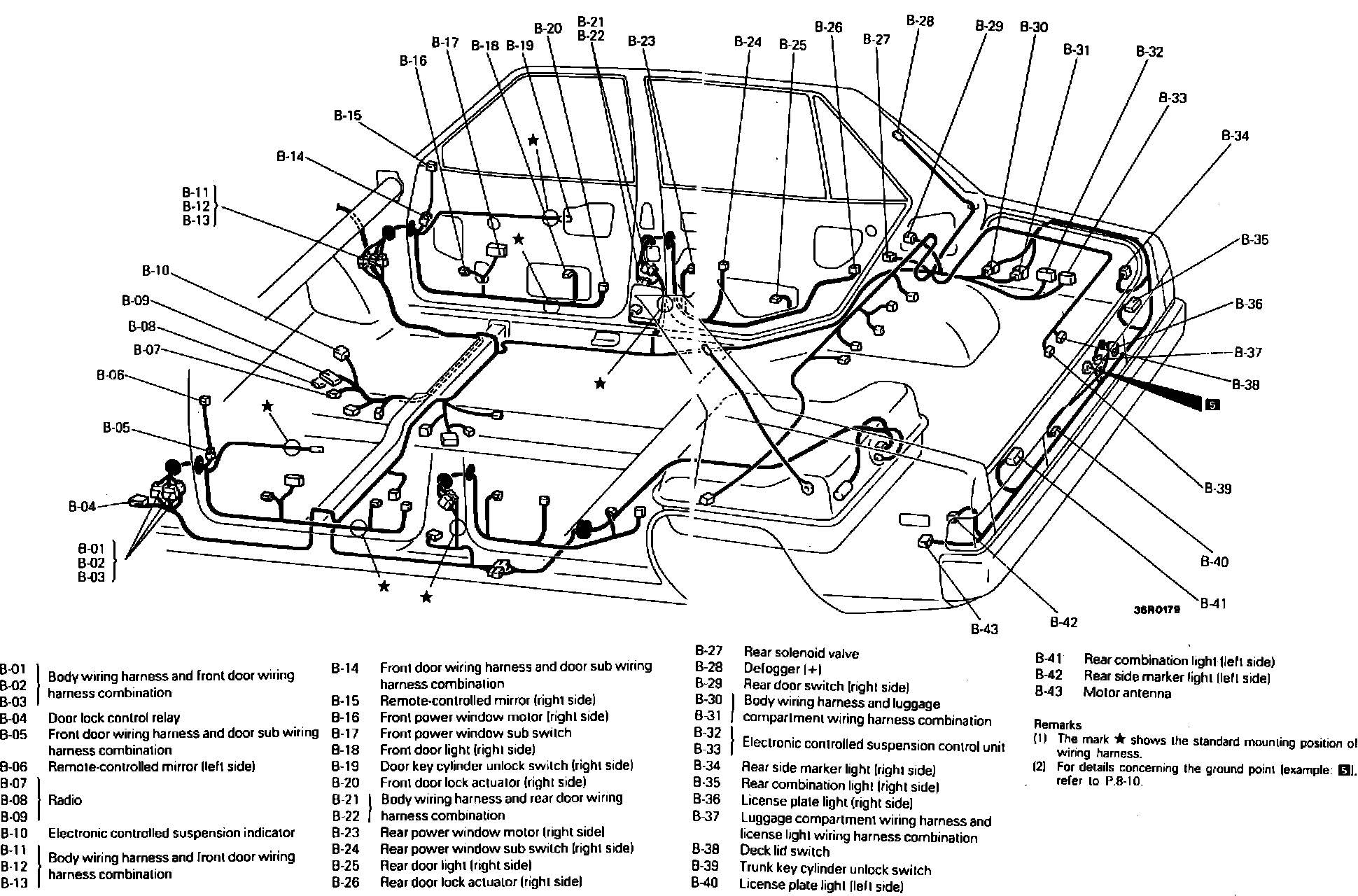

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

Luggage Compartment & Interior Connector Locations (Part 1 Of 3).:

B107, Lower Center Of I/P

Applicable to: 1988 Galant
