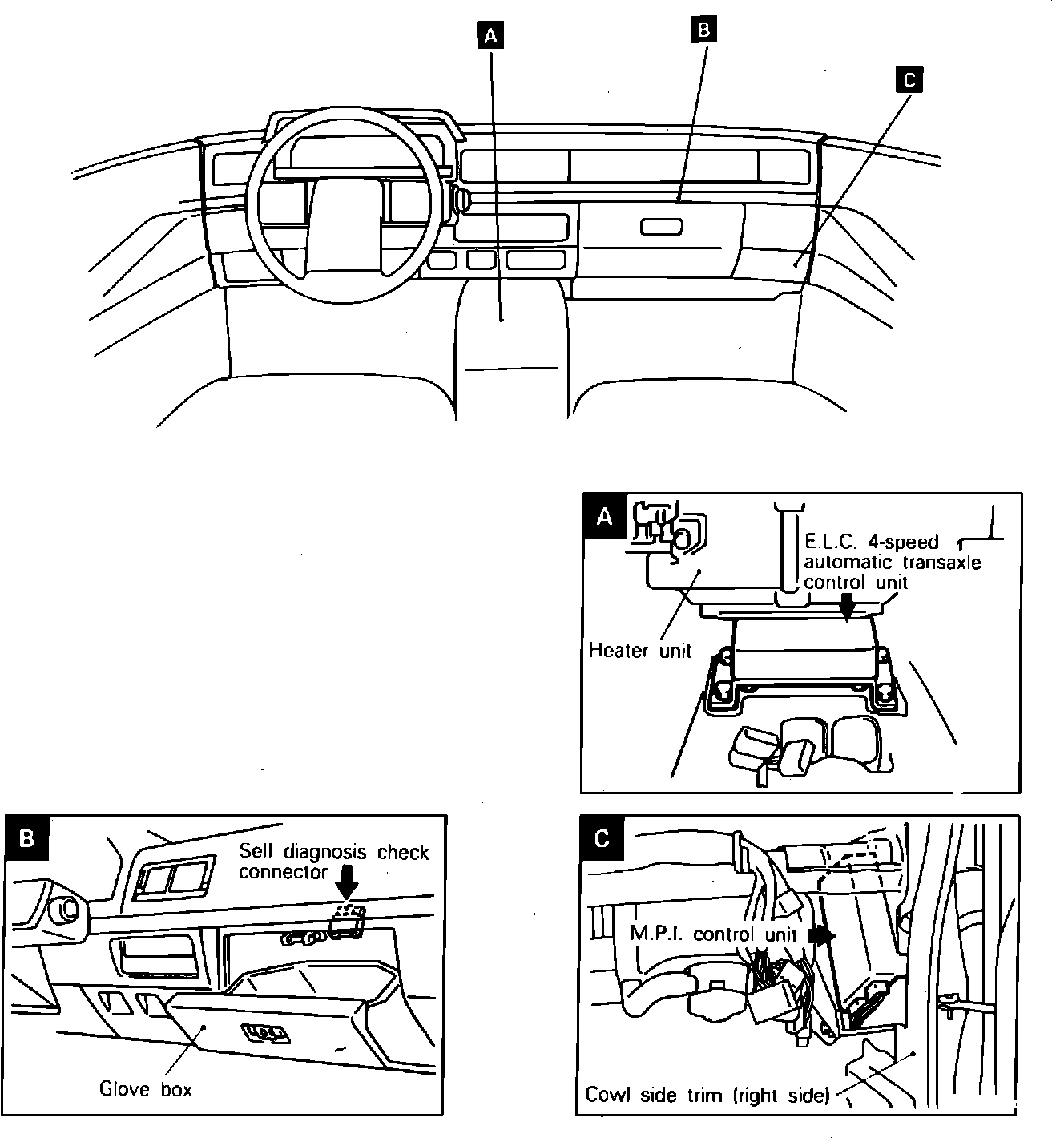

ELC Control Unit

Control Unit Locations.:

Center Of I/P

Applicable to: 1987 Galant

Electronic Lock-Up Converter Component Locations (Part 1 Of 2).:

Electronic Lock-Up Converter Component Locations (Part 1 Of 2).:

At Center Console Near Heater Unit

Applicable to: 1988 Galant
