ECS Control Unit

Control Unit Locations.:

RH Inner Quarter Panel

Applicable to: 1987 Galant

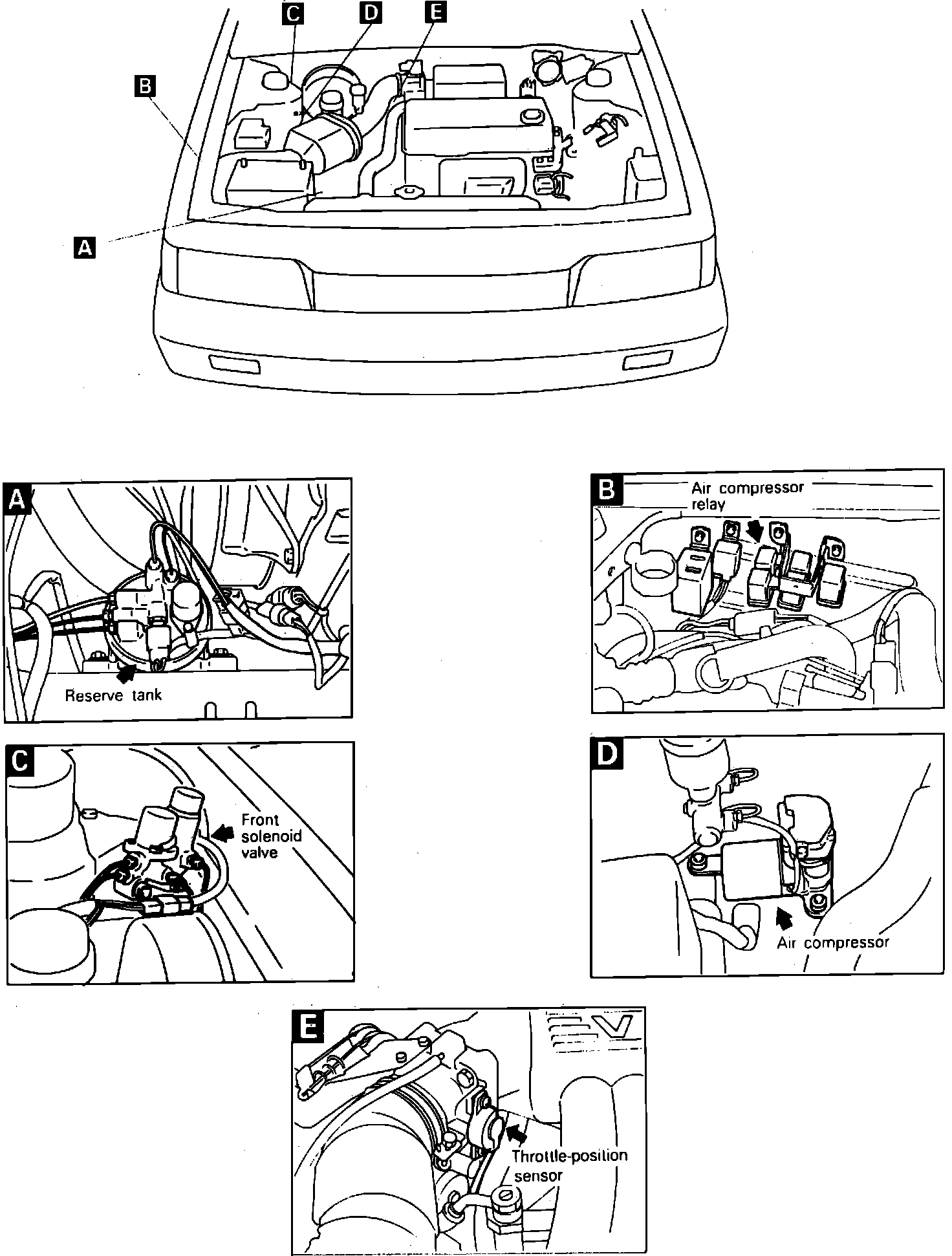

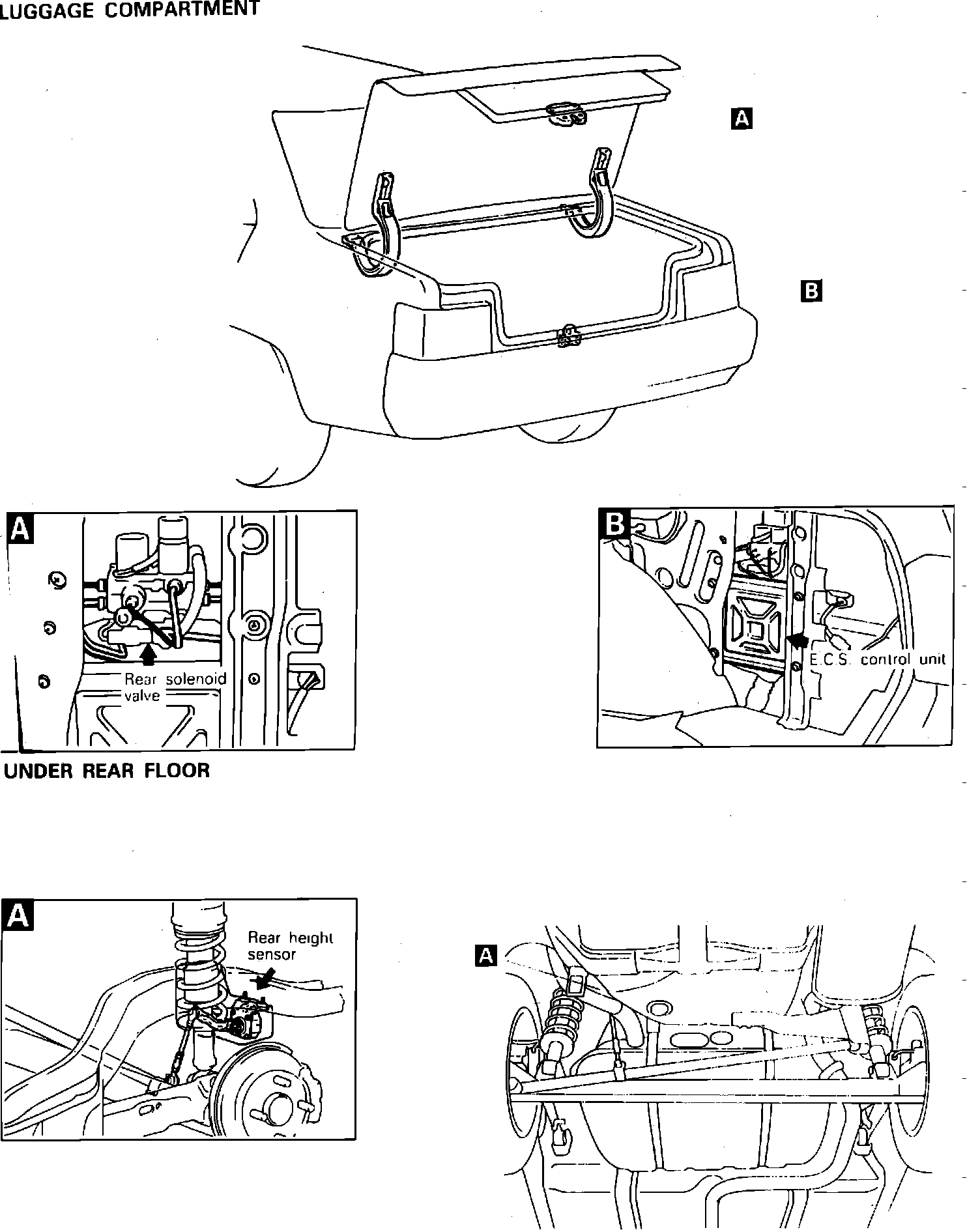

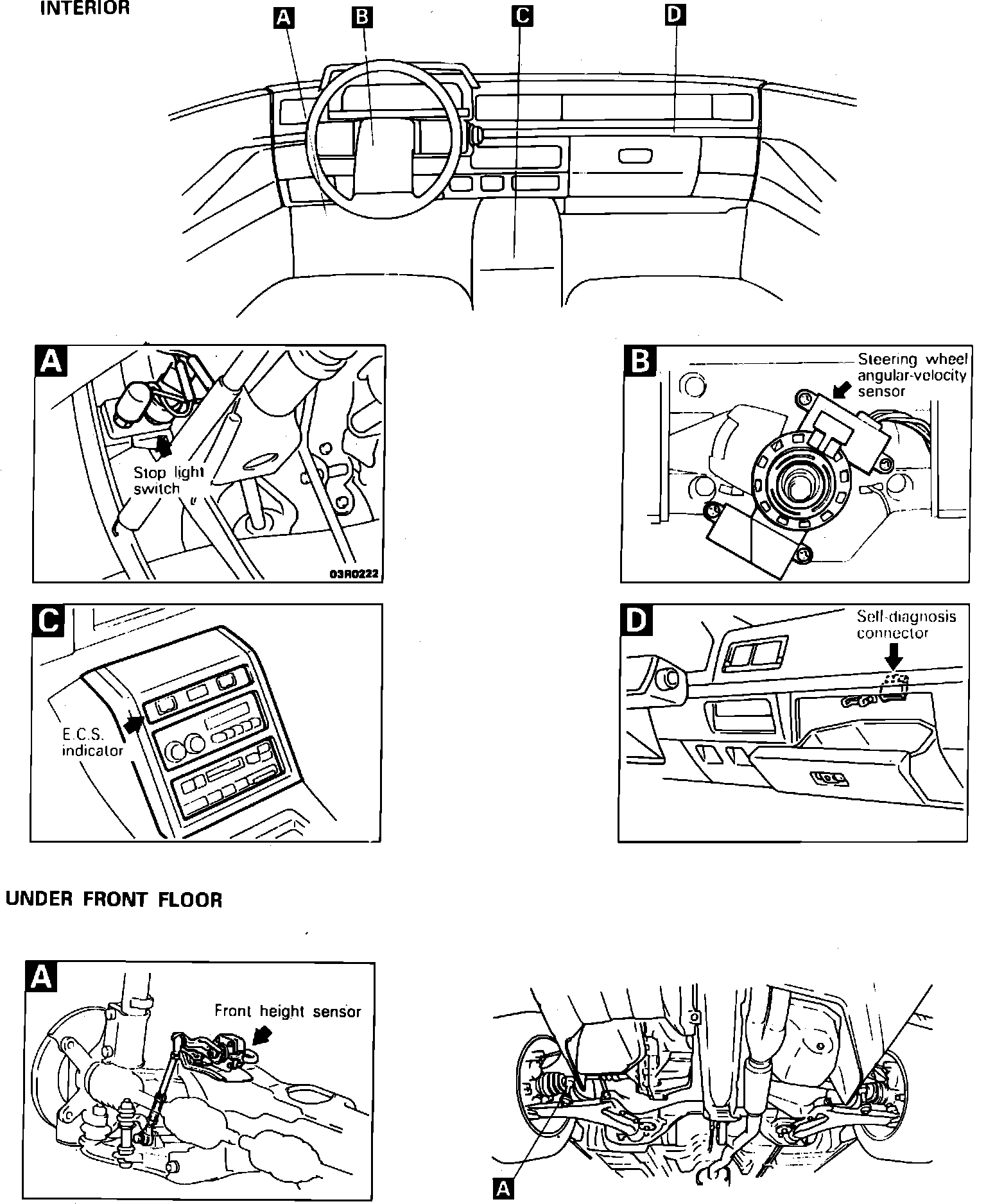

Electronic Controlled Suspension Component Locations (Part 1 Of 3).:

Electronic Controlled Suspension Component Locations (Part 1 Of 3).:

Electronic Controlled Suspension Component Locations (Part 1 Of 3).:

RH Inner Quarter Panel

Applicable to: 1988 Galant
