Home >> Mitsubishi >> 1987 >> Galant L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Trouble Symptom 2 and 3 Flow Chart

Trouble Symptom 2 and 3 Flow Chart

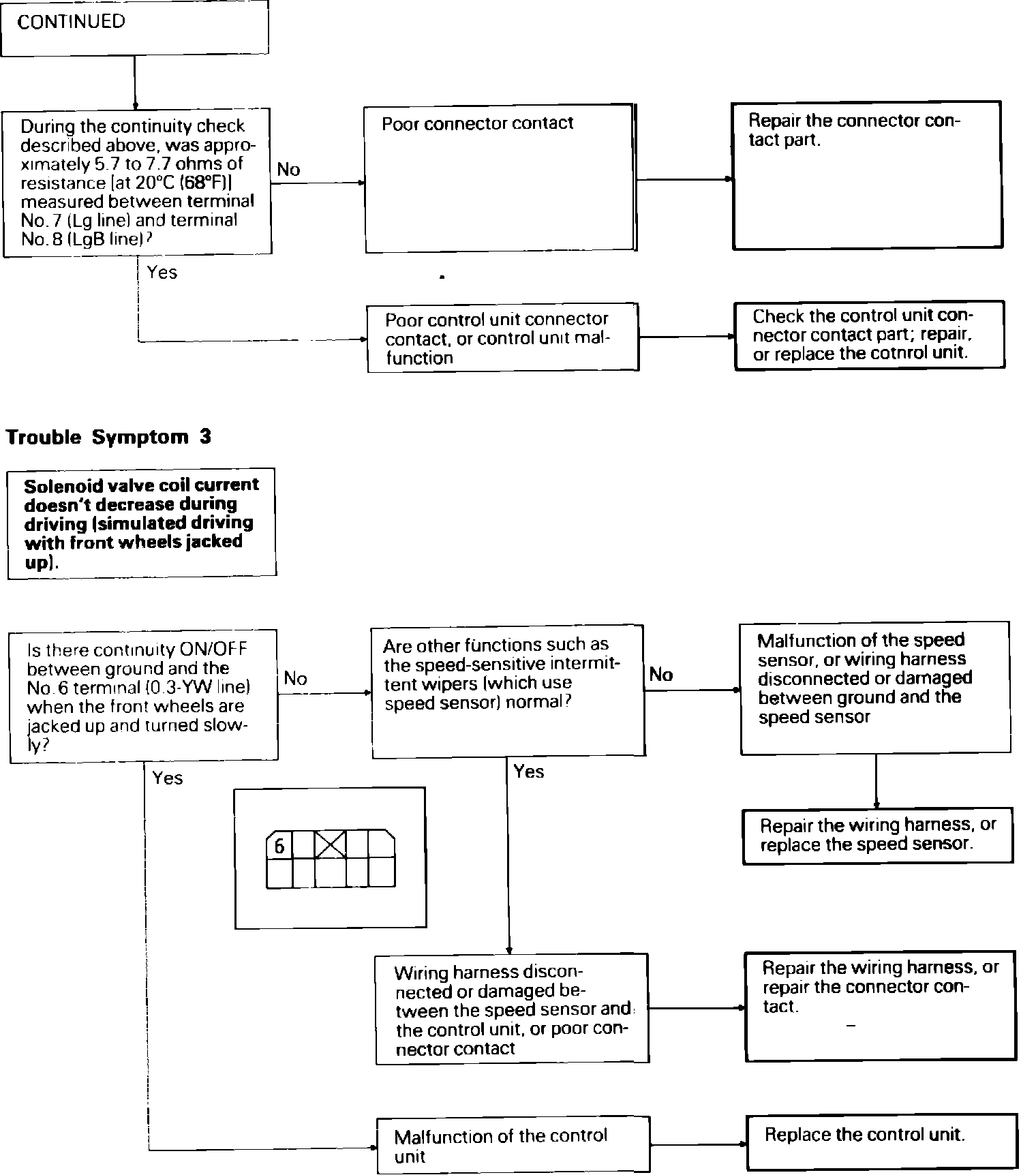

Fig. 13 Troubleshooting chart (Part 8 of 9).:
