1987 Mirage Service Manual, Volume 2, Page 8-139, 1.6L Engine

IGNITION TIMING ADJUSTMENT FOR 1.6L ENGINE

Adjustment conditions:
Coolant temperature: 85 - 95~C (185 - 205~F)
Lamps and all accessories: Off
Transaxle: N (Neutral) Set Parking Brake
1. Connect tachometer and timing light.
2. Start engine and run at curb idle speed.
Curb idle speed: 700 +/- 100 rpm

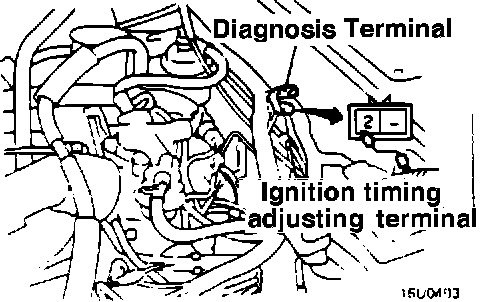

3. When checking the basic ignition timing at high altitude [altitude of 1200 m (3900 ft.) or more], stop the engine and disconnect the water-proof female connector from the ignition timing connector. Connect a lead wire with an alligator clip to the ignition timing adjusting terminal to ground it.

NOTE: Some early-production 1987 Mirage turbos were not equipped with the Ignition Timing Adjusting Terminal described in Step 3. When adjusting ignition timing at high altitude on these cars, disconnect and plug the distributor vacuum line (white stripe) before setting the timing to the value given below in Step 4.



4. Check basic ignition timing and adjust if necessary.
Basic ignition timing: 10~ +/- 2~ BTDC

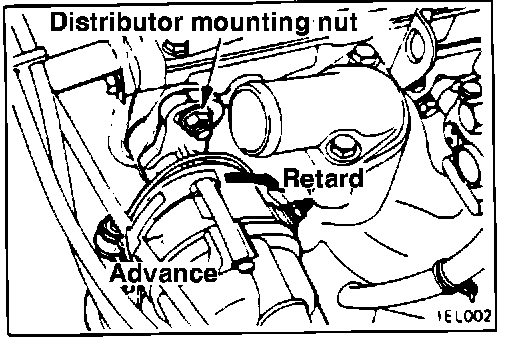

5. To adjust ignition timing, loosen distributor mounting nut and turn distributor housing.
6. After adjustment, securely tighten mounting nut.


7. When checking ignition timing at high altitude, stop the engine and return the ignition timing adjusting terminal grounded in Step 3 to the original condition. Then, restart the engine to make sure that the ignition timing "is been advanced to the actual ignition timing.
Actual ignition timing: 15~ BTDC

NOTE: After adjusting ignition timing at high altitude on early models without the Ignition Timing Adjusting Terminal, unplug and re-connect the distributor vacuum line before re-testing for actual ignition timing.
