Throttle Body: Service and Repair

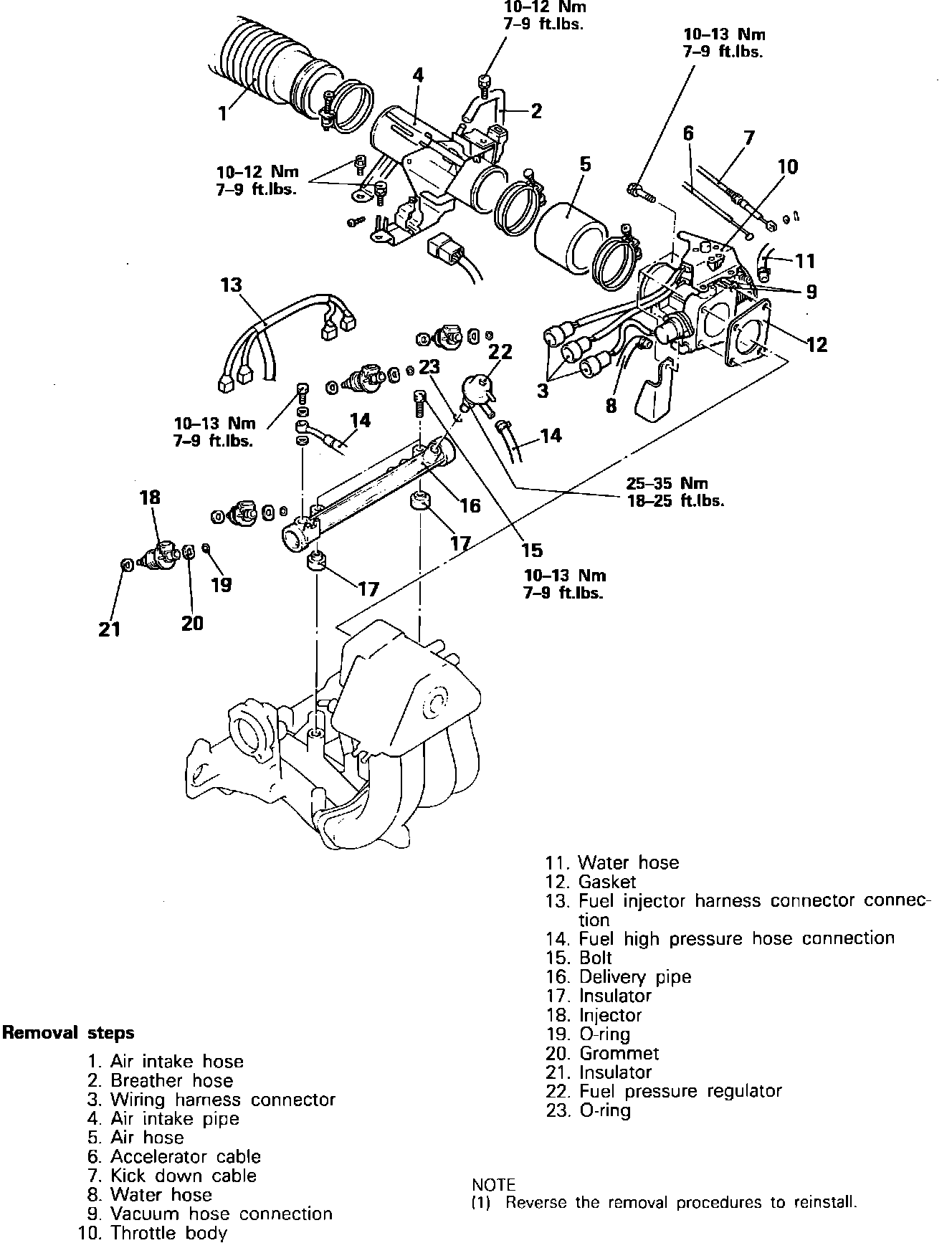

Fig. 37 Injector & throttle body replacement.:

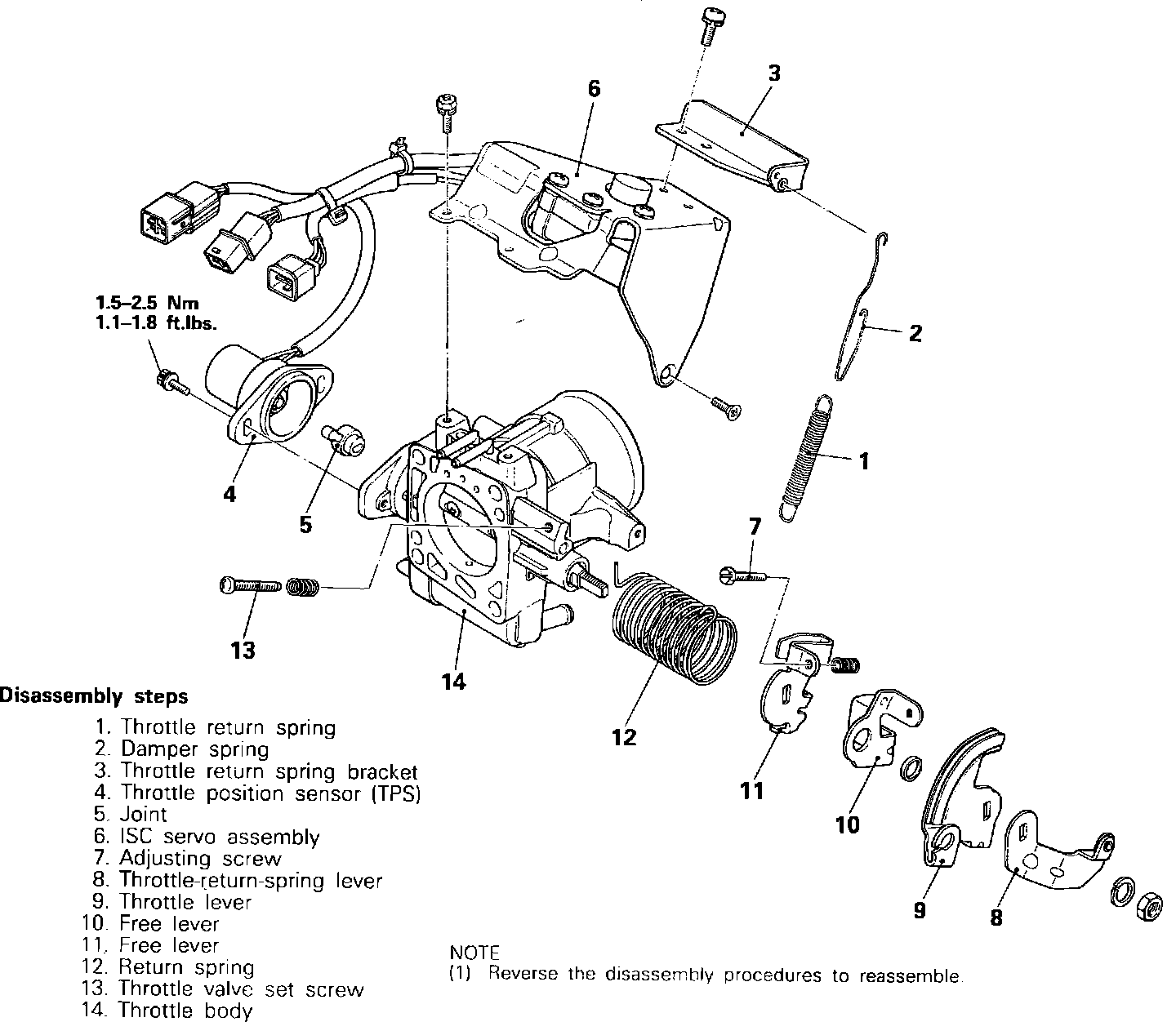

Fig. 38 Throttle body service.:






INJECTOR & THROTTLE BODY EXPLODED VIEW
