Fuel Pressure Control Solenoid: Testing and Inspection

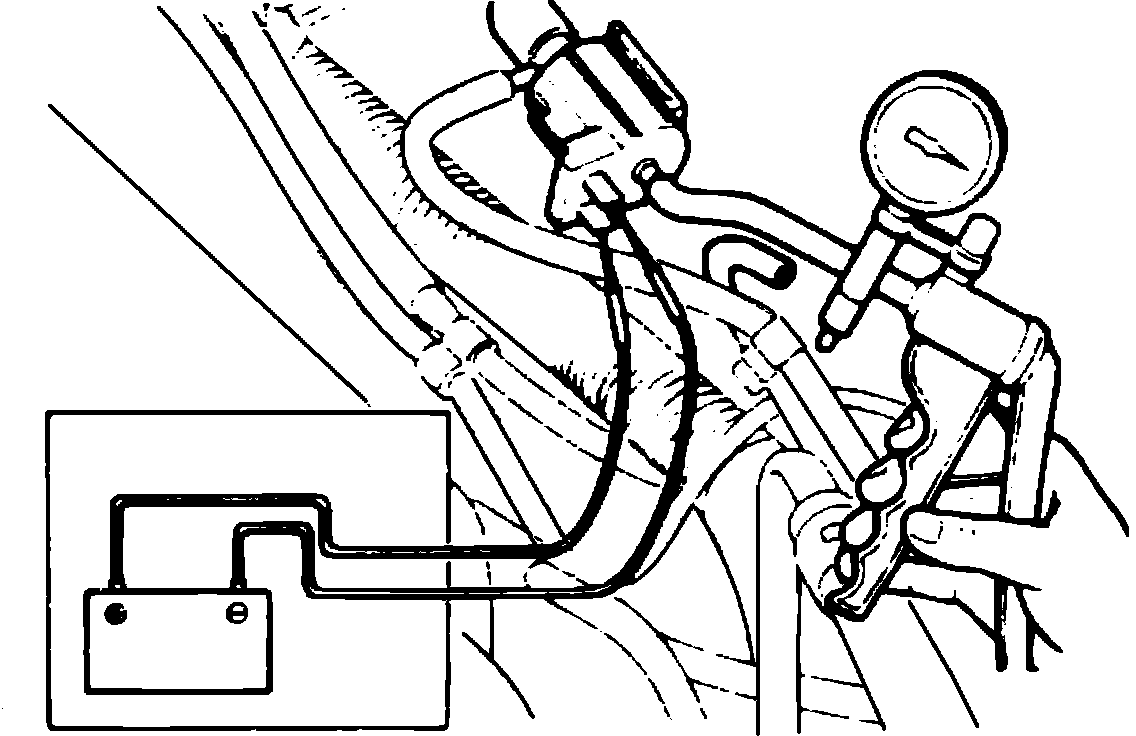

Fig. 34 Applying vacuum to fuel pressure solenoid valve.:

Fig. 35 Testing fuel pressure solenoid valve.:

***UPDATED BY TSB 87-14-007 APRIL 1987
1. Disconnect and mark position of black vacuum hose with blue stripe, from solenoid valve.
2. Disconnect harness connector.
3. Connect a suitable vacuum pump to nipple previously connected to black vacuum hose.
4. Apply vacuum and check whether solenoid valve is air tight or not when voltage is applied or not to solenoid valve terminal, Fig. 34.
5. Refer to Fig. 35, during fuel pressure solenoid valve test.
6. Measure resistance of solenoid coil. Resistance should be 36 - 46 ohms at 68°F.
