Fuel Injector Resistor: Testing and Inspection

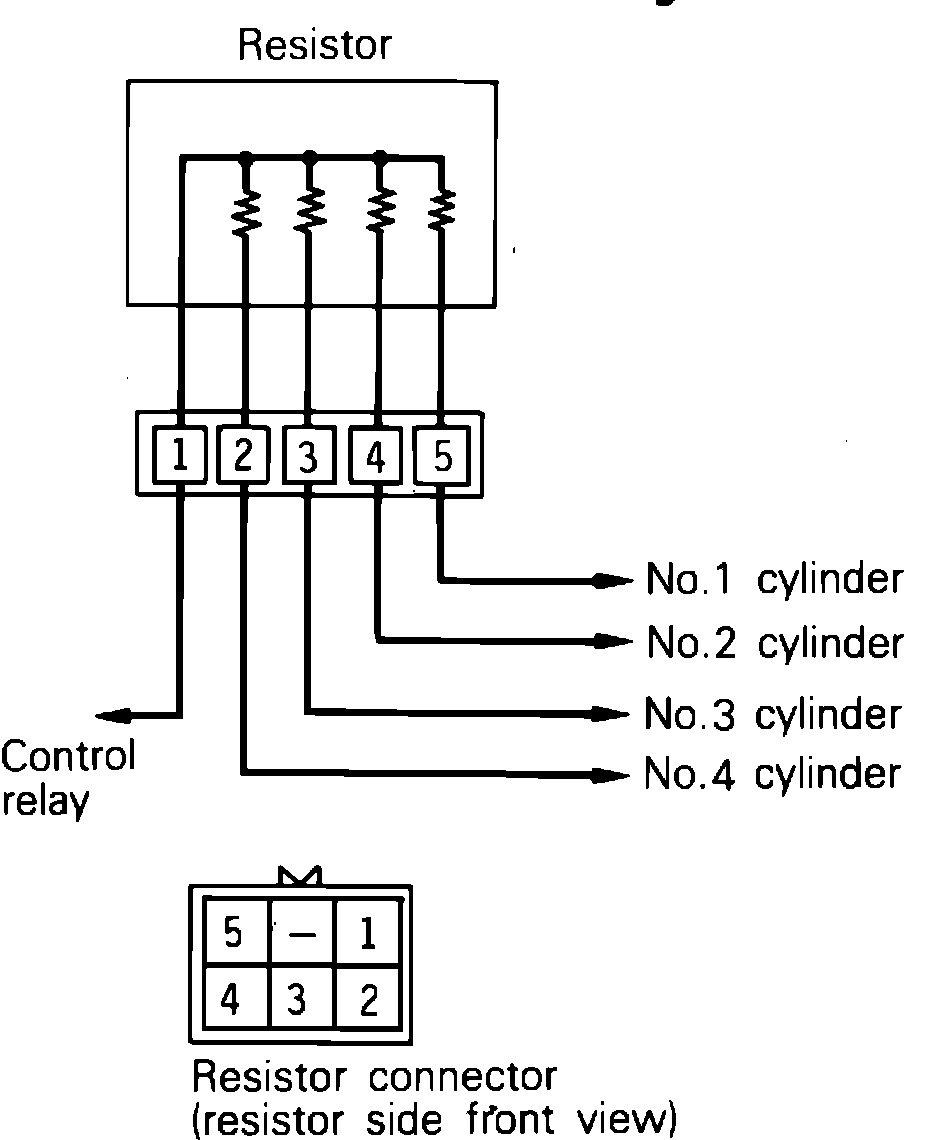

Fig. 33 Testing resistor.:

1. Disconnect resistor harness connector.
2. Measure resistance between terminals 1-2, 1-3, 1-4 and 1-5, Fig. 33.
3. If resistance exceeds 5.5 - 6.5 ohms at 68°F, replace resistor.
