Evaporative Emission Control Canister: Locations

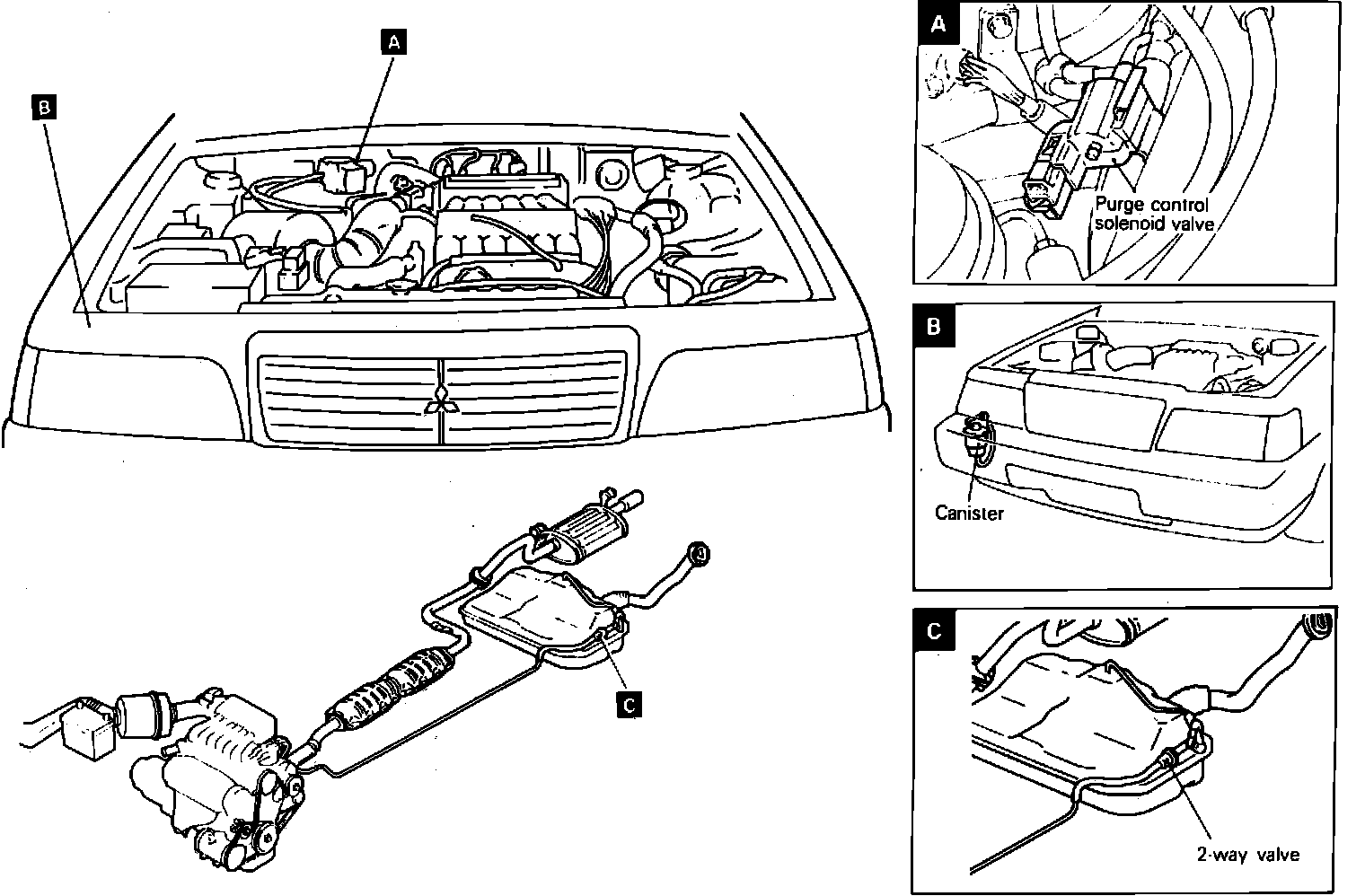

Emission Control Component Location (Evaporative System).:




Lower RH Corner Of Engine Compartment

Applicable to: 1988 Galant
