Complete Emission Control System Diagram
Complete Emission Control System Diagram

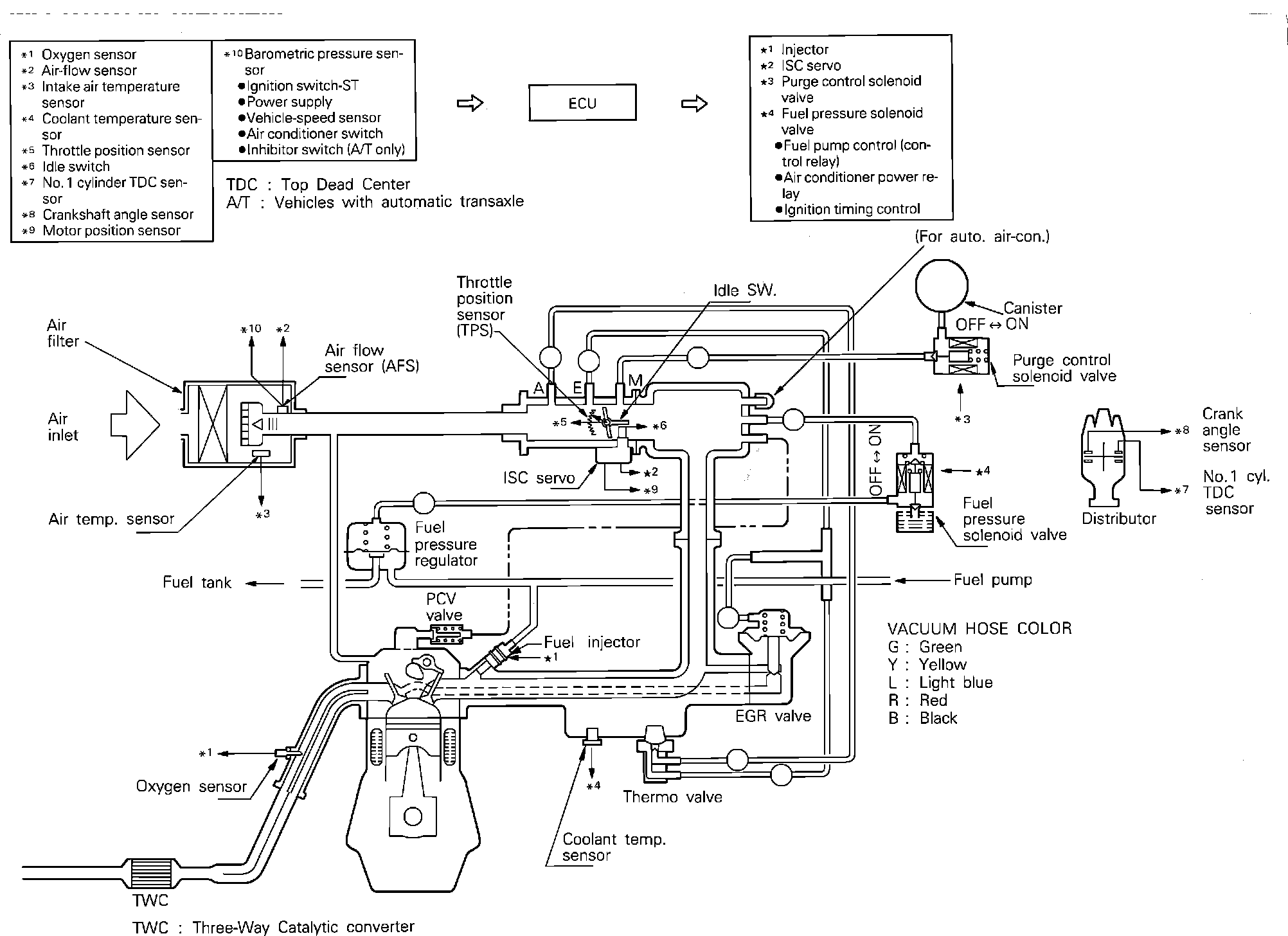

Fig. 20 Multi-point fuel injection system diagram:
