Fuel System - Specification Corrections
87mitsubishi03SUBJECT:
FUEL SYSTEM SPECIFICATIONS - GALANT & VAN/WAGON
NO. STB-87-14-007
DATE April, 1987
MODEL 1987 Galant, Van/Wagon
PURPOSE STB Revision STB-87-14-007
This bulletin contains corrected specifications for certain sections of the 1987 Galant and Van/Wagon Service Manuals. As reference to this bulletin, please write the STB number in the boxes on the pages tabulated below.
1987 Galant Service Manual, Vol. 1, Page 14-64, 14-65
1987 Van/Wagon Service Manual, Vol. 1, Page 14-64
CORRECTIONS
1987 GALANT SERVICE MANUAL, Page 14-64

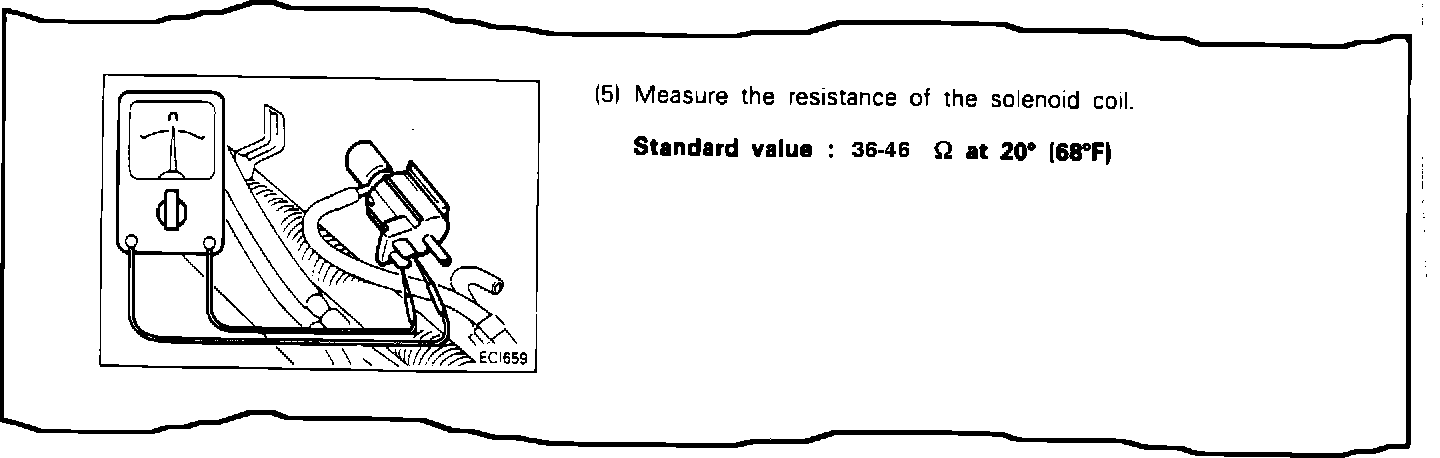

1. Change the resistance value of the fuel pressure solenoid valve to 36-46 ohms as illustrated below.
2. Delete the "approximately 7 mA" value in Step 2 as shown below.
Page 14-65
Delete the "approx. 50 mA" value in Step 3 as shown below.
1987 VAN/WAGON SERVICE MANUAL Page 14-64
Change the resistance value of the fuel pressure solenoid to 36-46 ohms as illustrated below.
