Home >> Mitsubishi >> 1987 >> Galant L4-2350cc 2.4L SOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID

Fuse: Application and ID

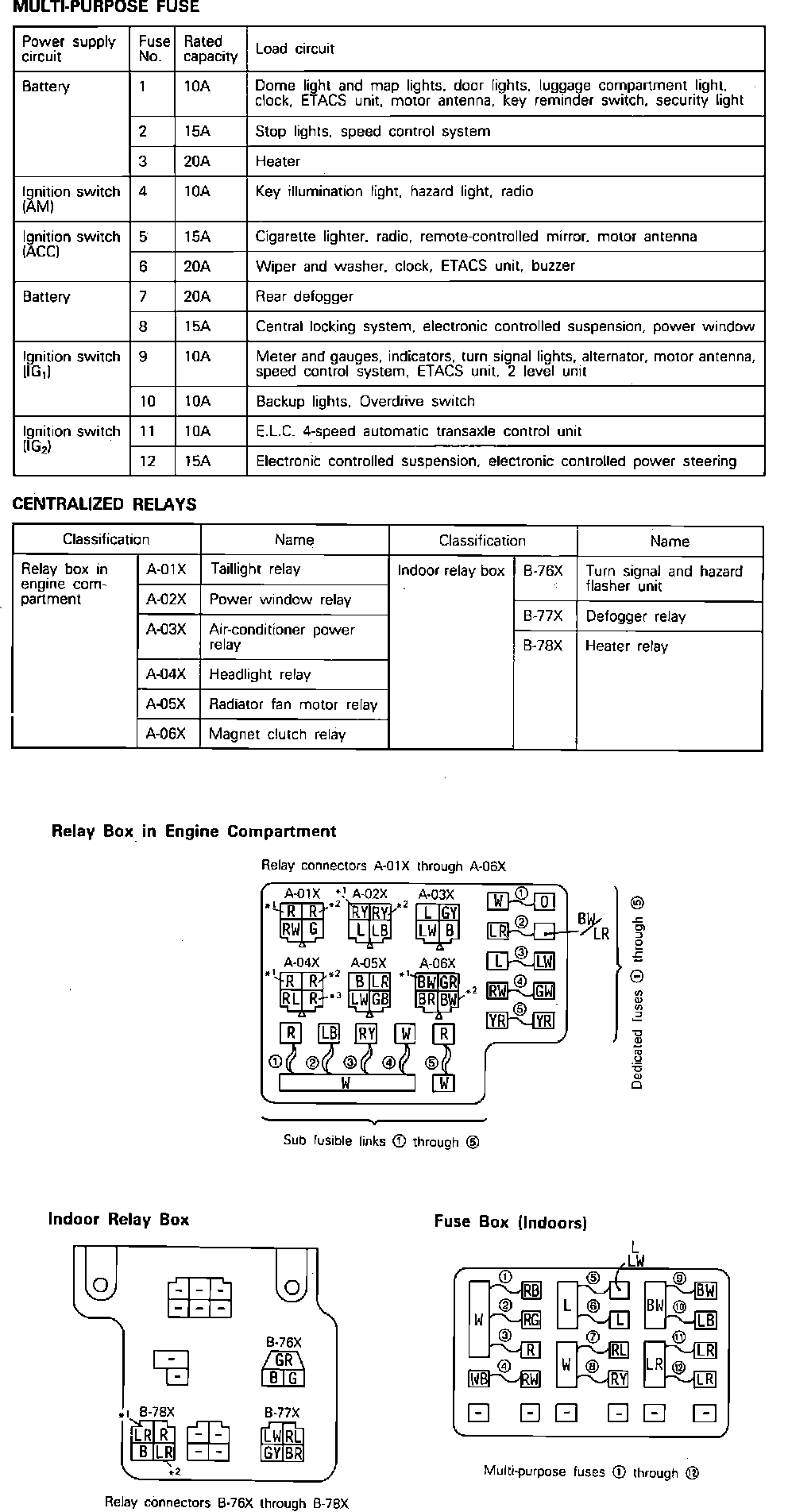

Fig. 2 Fuse & Relay Panel:
