Manual Transmission/Transaxle: Diagrams

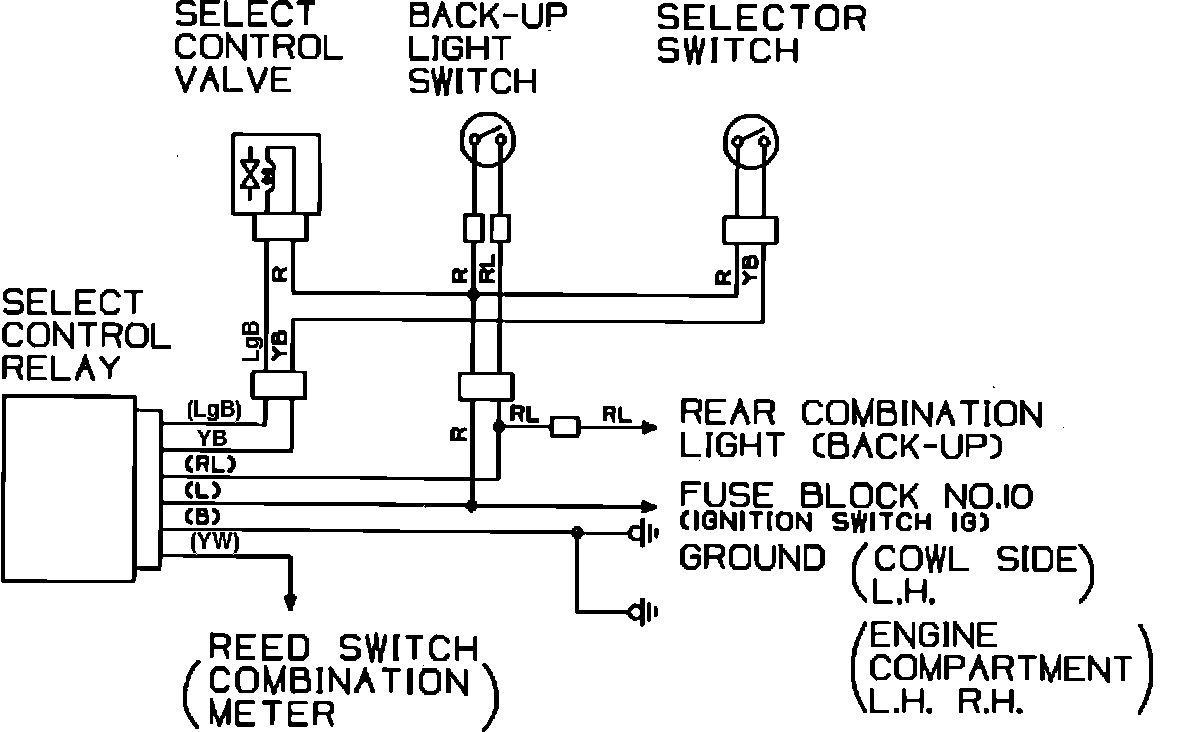

Fig. 15 Transmission Control System Wiring Circuit. W/5 Speed Manual Transmission:
