Water Cut Valve - Service Manual Revision

89mitsubishi05

SUBJECT: DELETION OF WATER CUT VALVE REFERENCE - SERVICE MANUAL REVISION

NO. TSB-89-14-002

DATE June, 1989

MODEL Cordia, Tredia, Mirage, Precis
TSB Revision TSB-89-14-002


PURPOSE

The water cut valve was dropped from production on the Cordia, Tredia, Mirage, and Precis. This bulletin instructs you to delete references to the valve in the appropriate Service Manuals. As a reference to this bulletin, please write the TSB Bulletin number in the TSB revision box at the bottom of the affected pages.

AFFECTED SERVICE MANUALS

1986 Mirage Service Manual Volume 1, page 7-17 1987 Cordia/Tredia Service Manual Volume 1, pages 7-11, 7-14 1988 Cordia/Tredia Service Manual Volume 1, pages 7-11, 7-14 1989 Precis Service Manual, page 25-10

SERVICE MANUAL CORRECTIONS

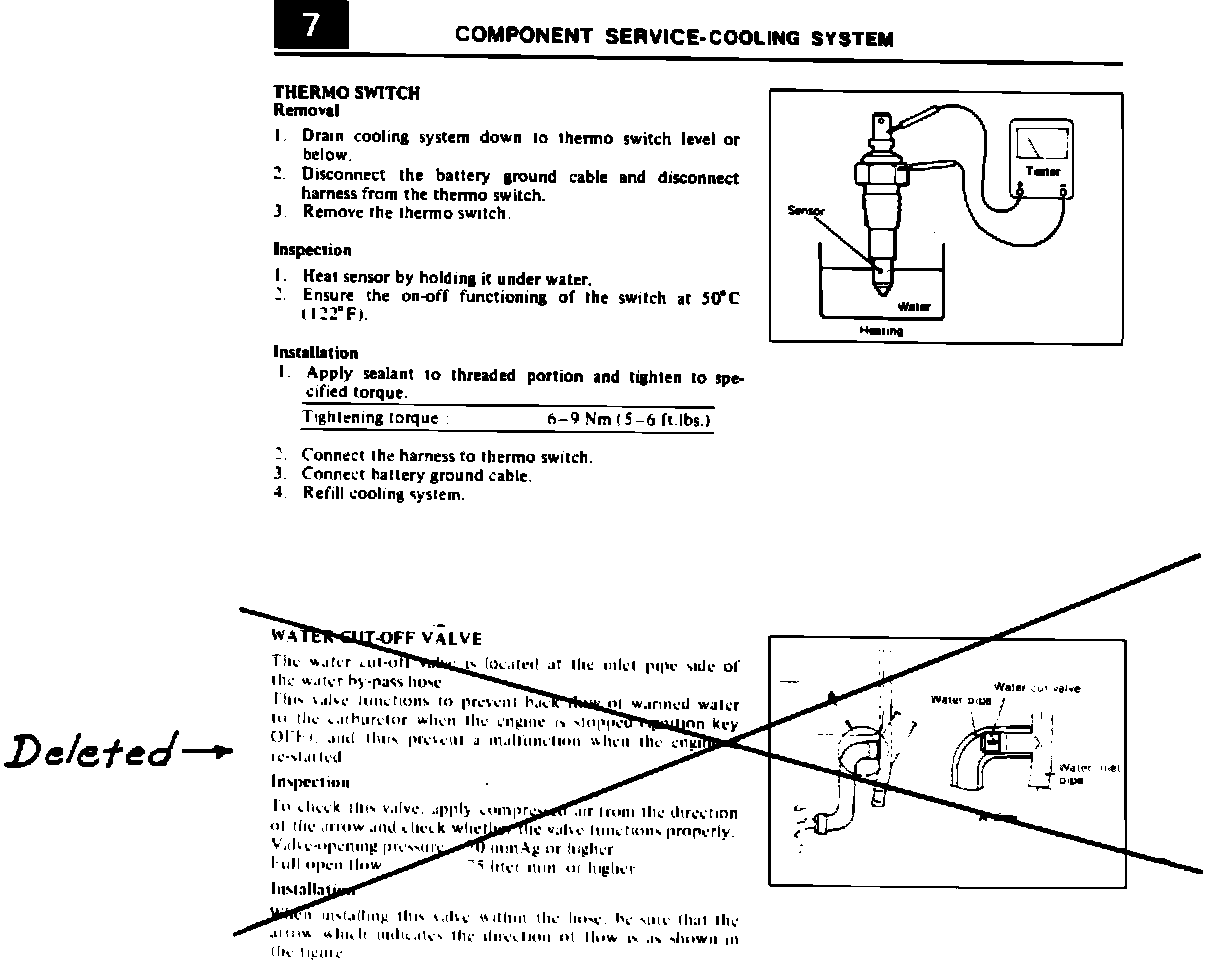

(1) 1986 MIRAGE, Page 7-17

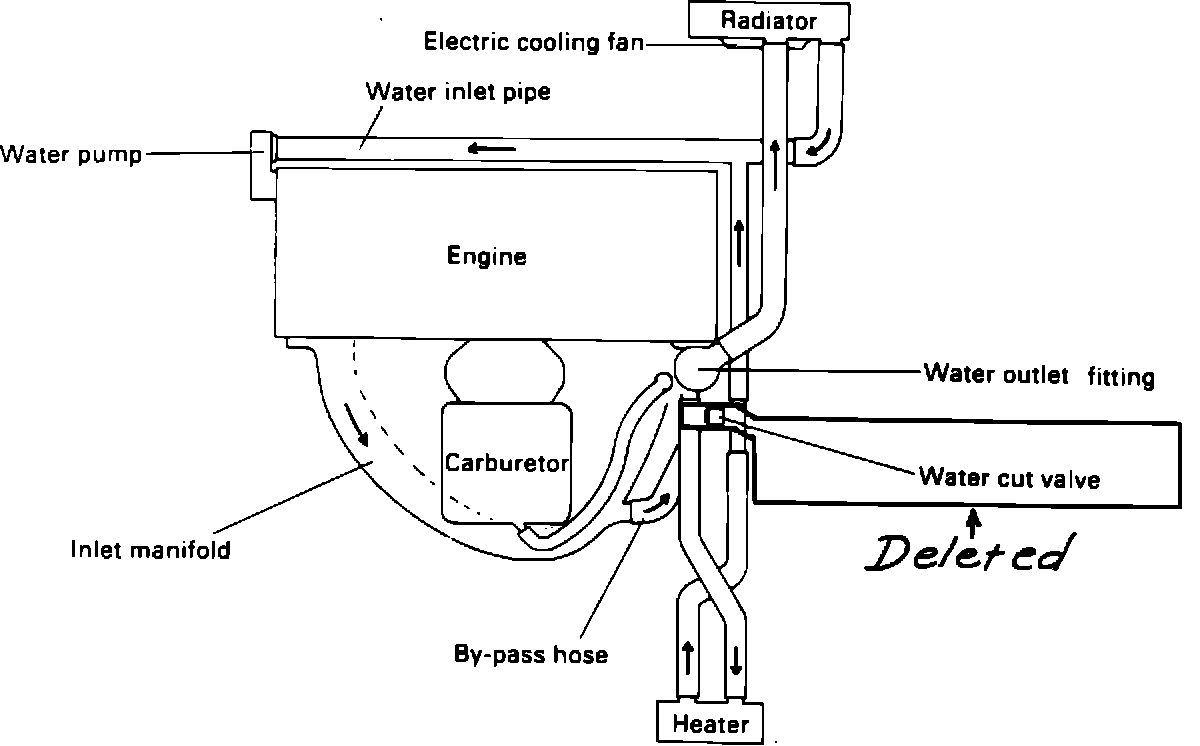

(2) 1987 CORDIA/TREDIA, Page 7-11 1988 CORDIA/TREDIA, Page 7-11

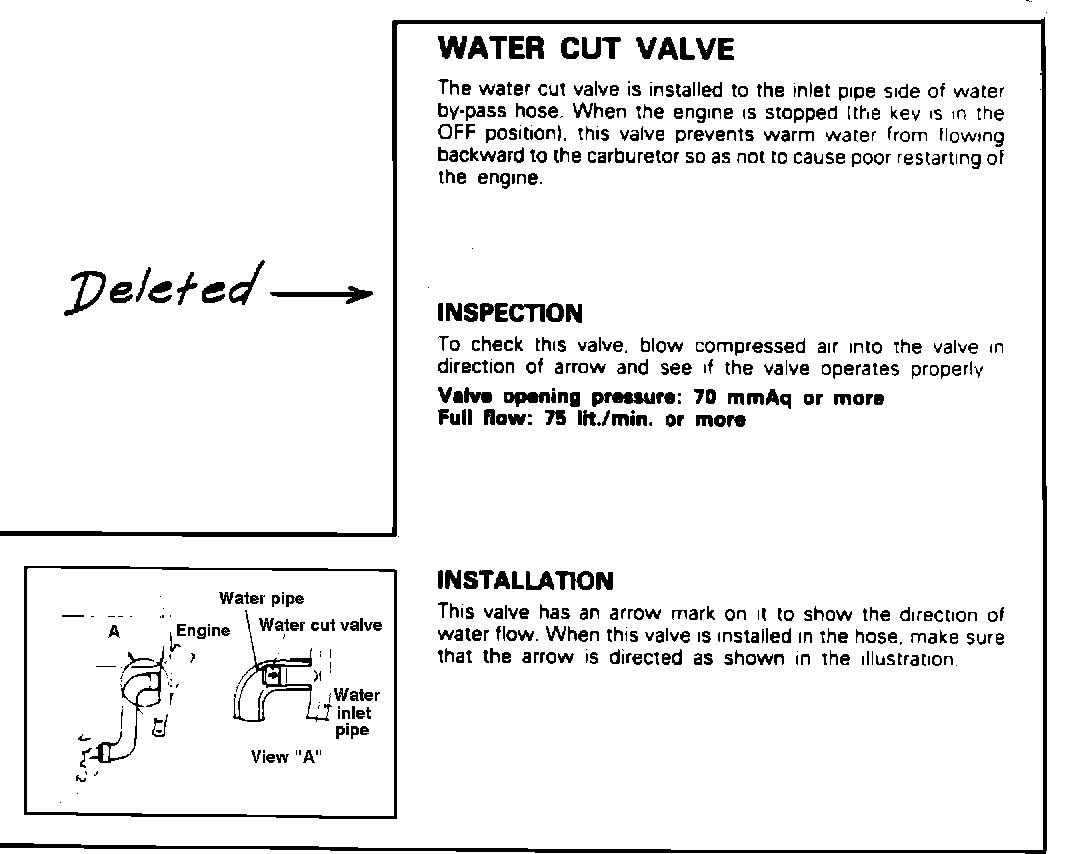

1987 CORDIA/TREDIA, Page 7-14 1988 CORDIA/TREDIA, Page 7-14



1989 PRECIS, Page 25-10
