Home >> Mitsubishi >> 1987 >> Cordia L4-2.0L SOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Multi-Purpose Fuses (In Junction Block)

Multi-Purpose Fuses (In Junction Block)

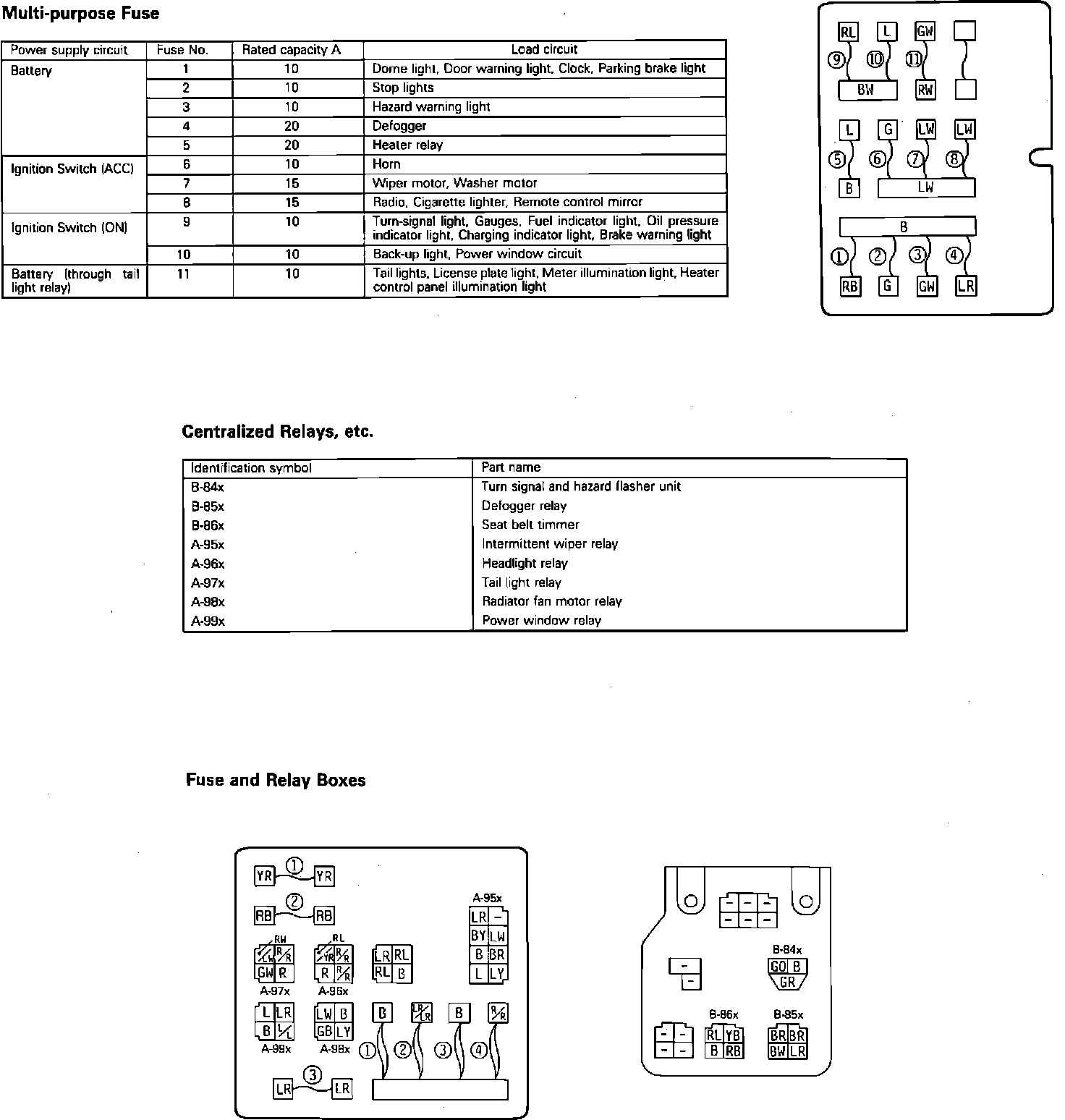

Fig. 1 Fuse & Relay Panel:
