Carburetor - Disassembly Precautions Update

88mitsubishi02

SUBJECT:

CARBURETOR DISASSEMBLY CAUTIONS - SERVICE MANUAL UPDATE

NO. TSB-88-14-005

DATE April, 1988
1987-1988 Truck, '86-88 Mirage, MODELS '87-88 Cordia/Tredia,'87-88 Montero

TSB Revision: TSB-88-14-005

SERVICE INFORMATION

This bulletin contains cautions which are important to follow when disassembling the carburetors of 1987-1988 Truck, 1986-1988 Mirage, 1987-1988 Cordia/Tredia and 1987-1988 Montero vehicles. Because these carburetors use a resin type carburetor body, adhesive is applied to the threads of the mounting screws of the accelerator pump, enrichment jet cover and auxiliary accelerator pump (Truck and Montero Only). Forced removal of these screws may cause the screws to break, preventing reinstallation. Therefore, DO NOT REMOVE these components from the mixing body, unless the component is suspected of damage.

The accelerator pump, enrichment jet cover and auxiliary accelerator pump are not available as service parts. Therefore, if the accelerator pump, enrichment jet cover or auxiliary accelerator pump is damaged, the complete mixing body must be replaced.

SERVICE MANUAL UPDATES

As a result of the information above, the following Service Manuals should be corrected as described below. As reference to this bulletin, please write the TSB number in the revision boxes of the following Service Manuals.

SERVICE MANUAL AFFECTED PAGES

1986 Mirage . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-50
1987 Mirage . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-79, 14-82
1988 Mirage . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-78, 14-81
1987 Truck . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-69, 14-72
1988 Truck . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-58, 14-61
1987 Cordia/Tredia . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-121,14-127
1988 Cordia/Tredia . . . . . . . . . . . . . . . . . . . . . . . . . Page 14-122,14-128
1987 Montero . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14-65, 14-68
1988 Montero . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14-61, 14-64





1986 Mirage Service Manual - Page 14-50

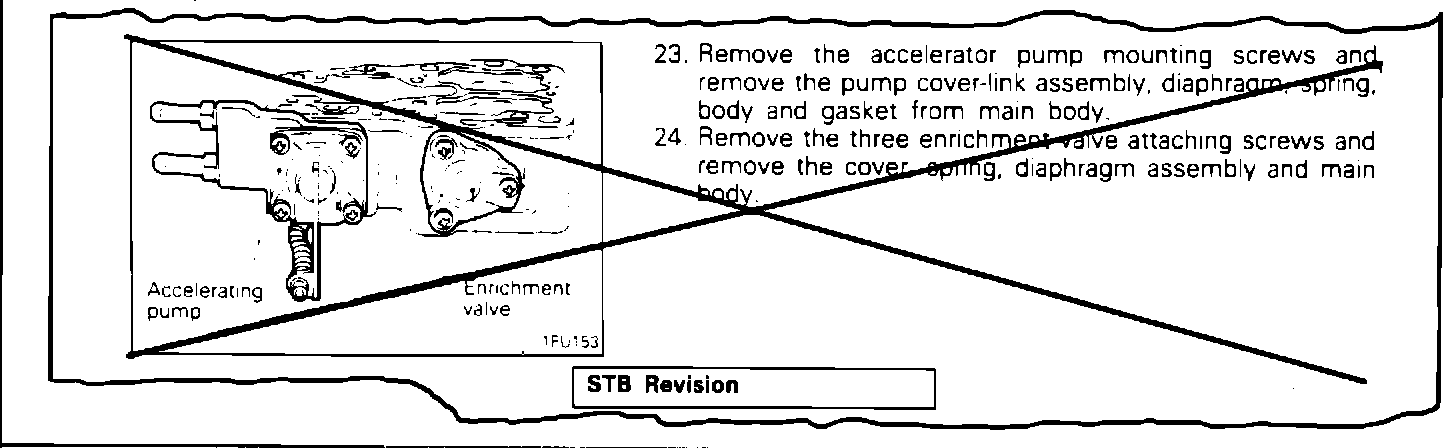

Delete Steps 23 and 24 as shown.

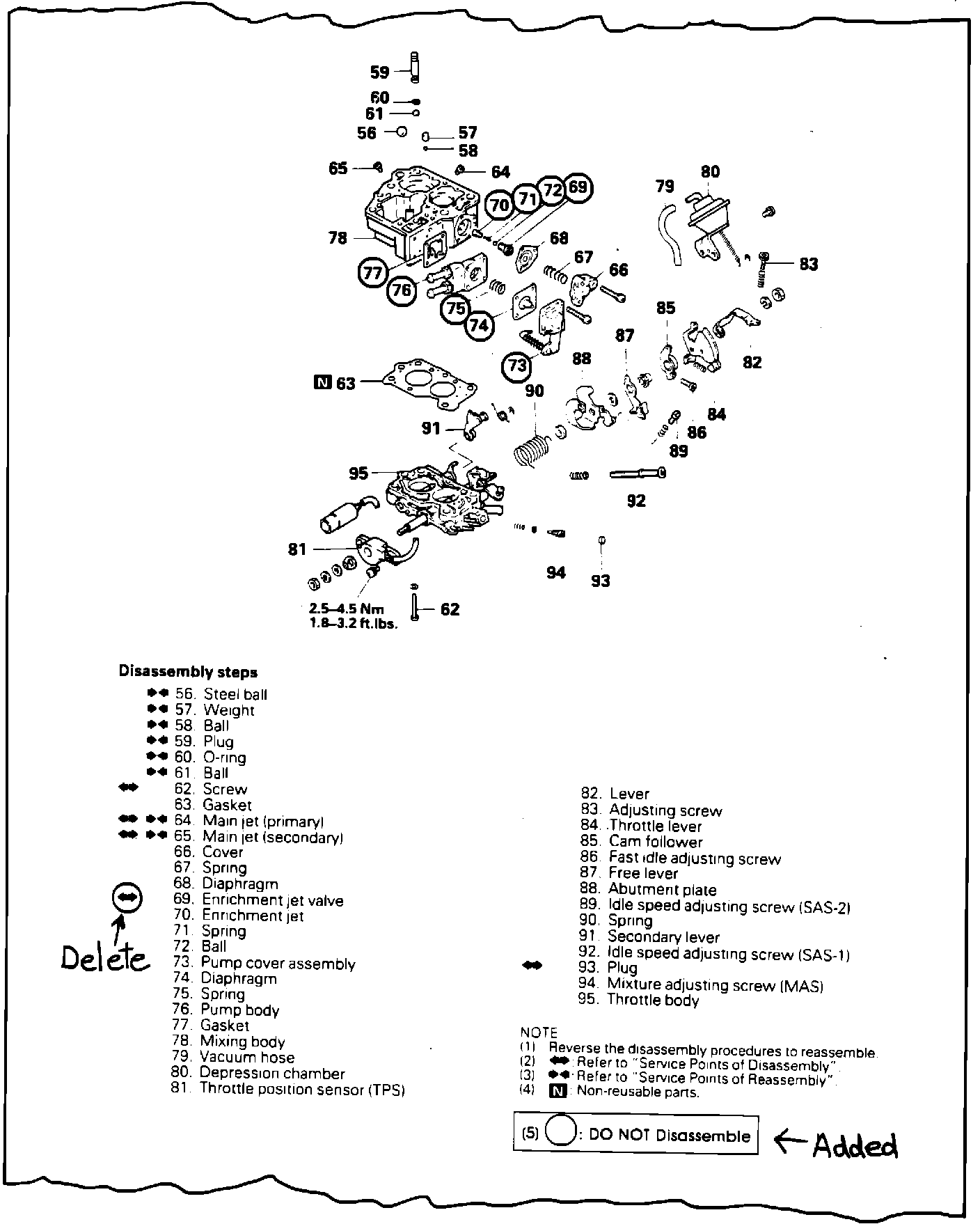

1987 Mirage Service Manual - Page 14-79 1988 Mirage Service Manual - Page 14-78 Revise the illustration as shown.

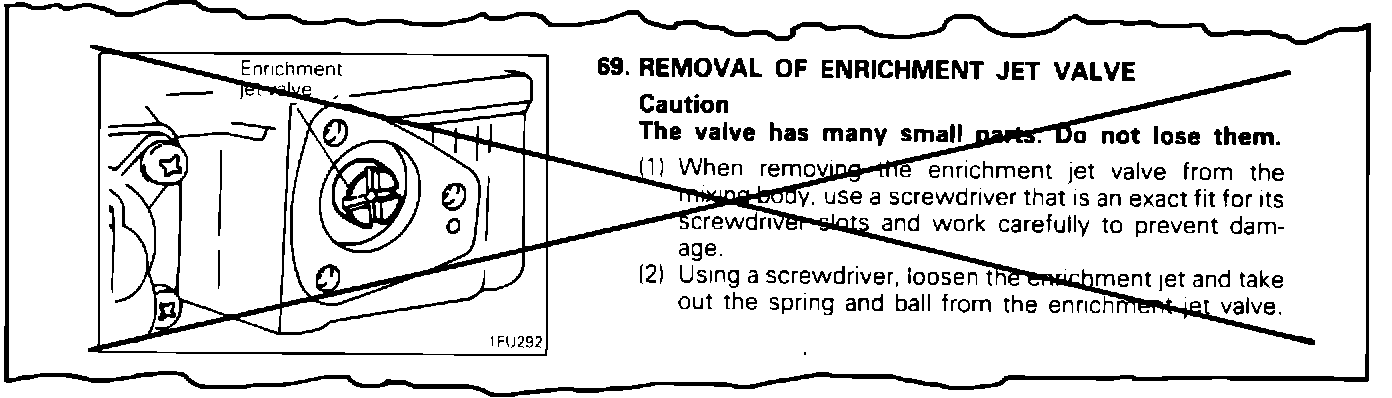

1987 Mirage Service Manual - Page 14-82 1988 Mirage Service Manual - Page 14-81 Delete Step 69 as shown.

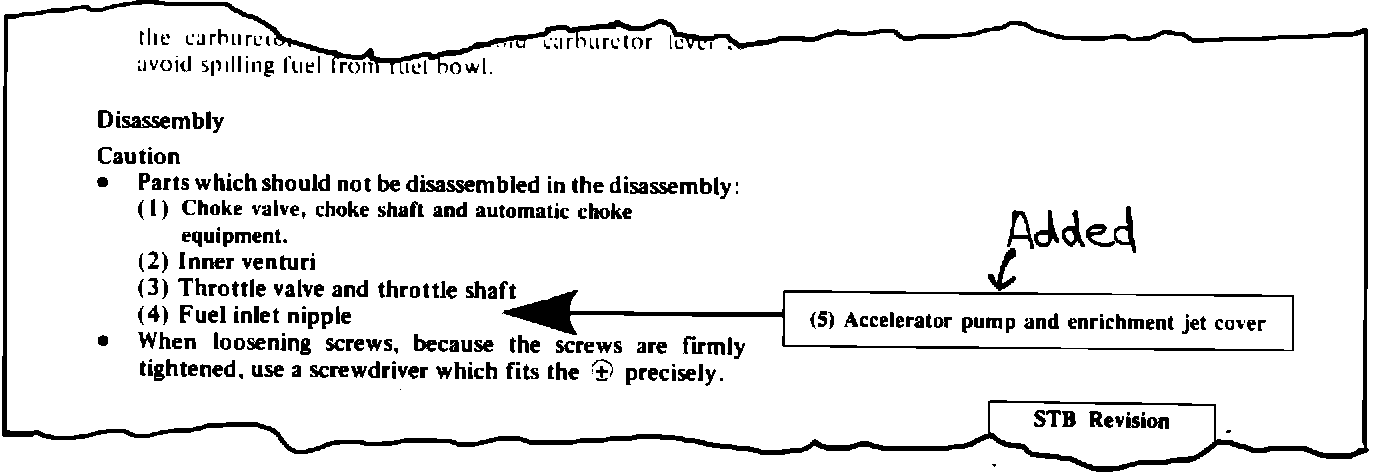

1987 Cordia/Tredia Service Manual - Page 14-121 1988 Cordia/Tredia Service Manual - Page 14-122 Add the accelerator pump and enrichment jet cover to the list of parts which should not be disassembled as shown.

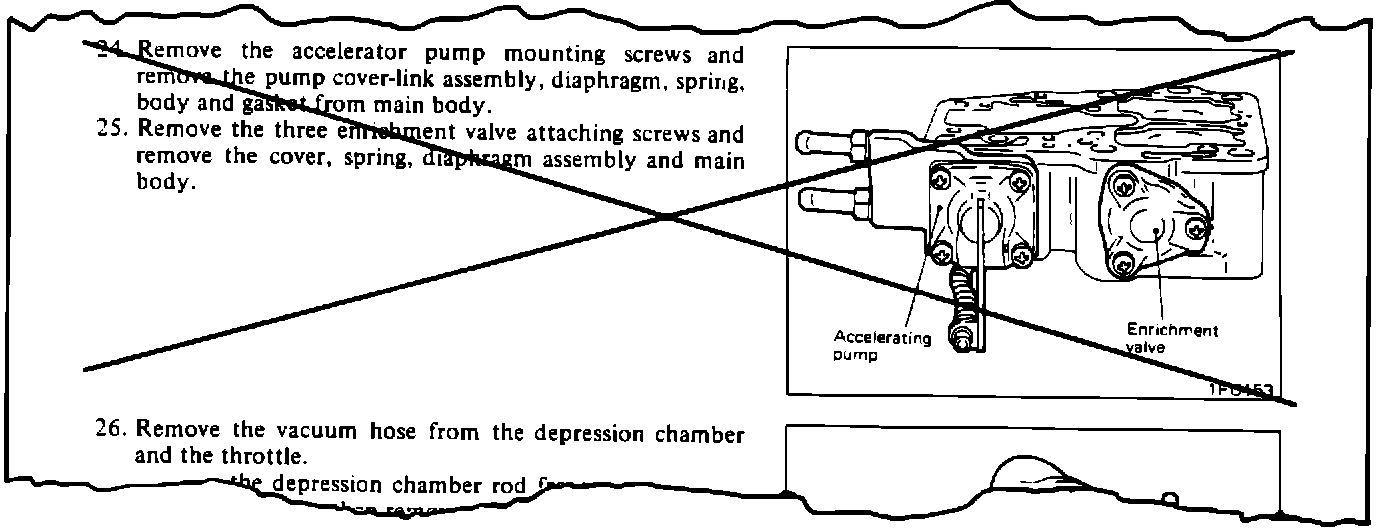

1987 Cordia/Tredia Service Manual - Page 14-127 1988 Cordia/Tredia Service Manual - Page 14-128 Delete Steps 24 and 25 as shown.

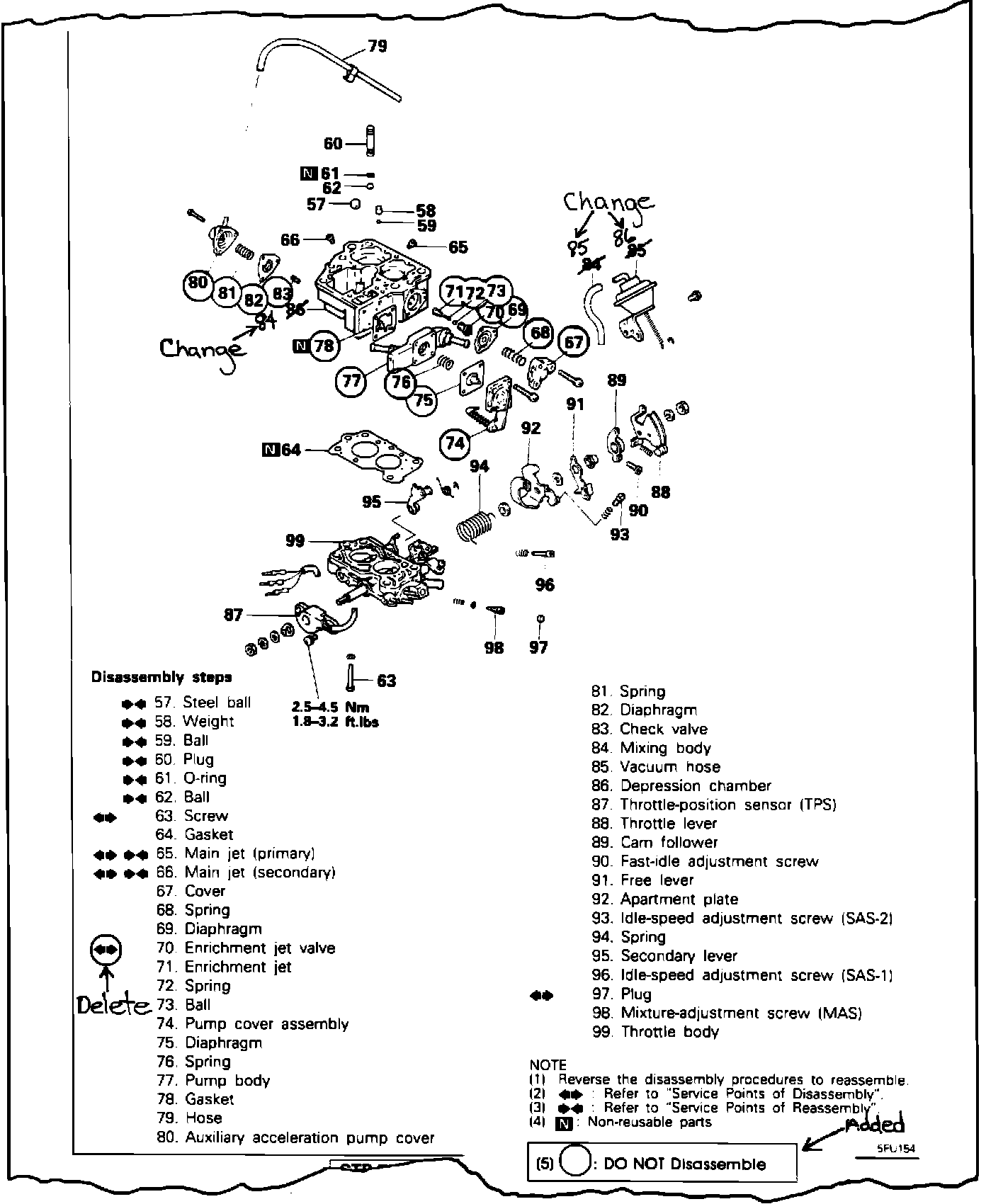

1987 Truck Service Manual - Page 14-69 1988 Truck Service Manual - Page 14-58 1987 Montero Service Manual - Page 14-65 1988 Montero Service Manual - Page 14-61 Revise the illustration as shown.

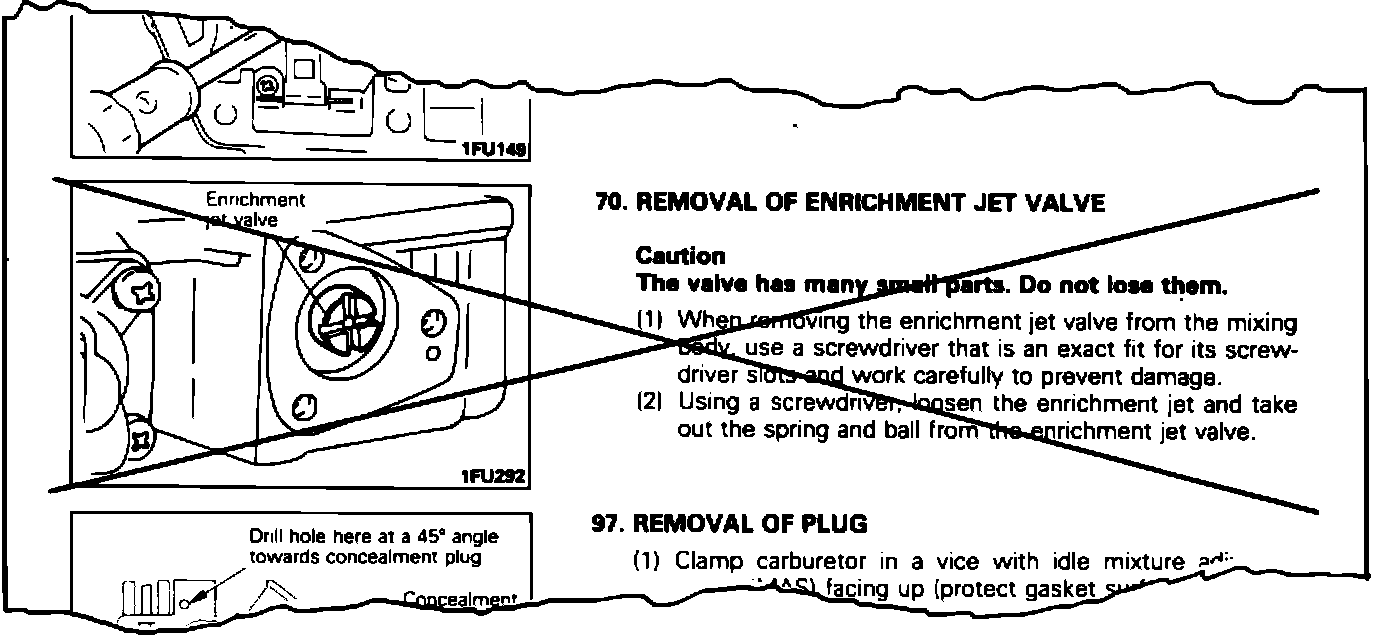

1987 Truck Service Manual - Page 14-72 1988 Truck Service Manual - Page 14-61 1987 Montero Service Manual - Page 14-68 1988 Montero Service Manual - Page 14-64 Delete Step 70 as shown.
