Vacuum Hose Routing Diagram (Calif.)
Vacuum Hose Routing Diagram (Calif.)

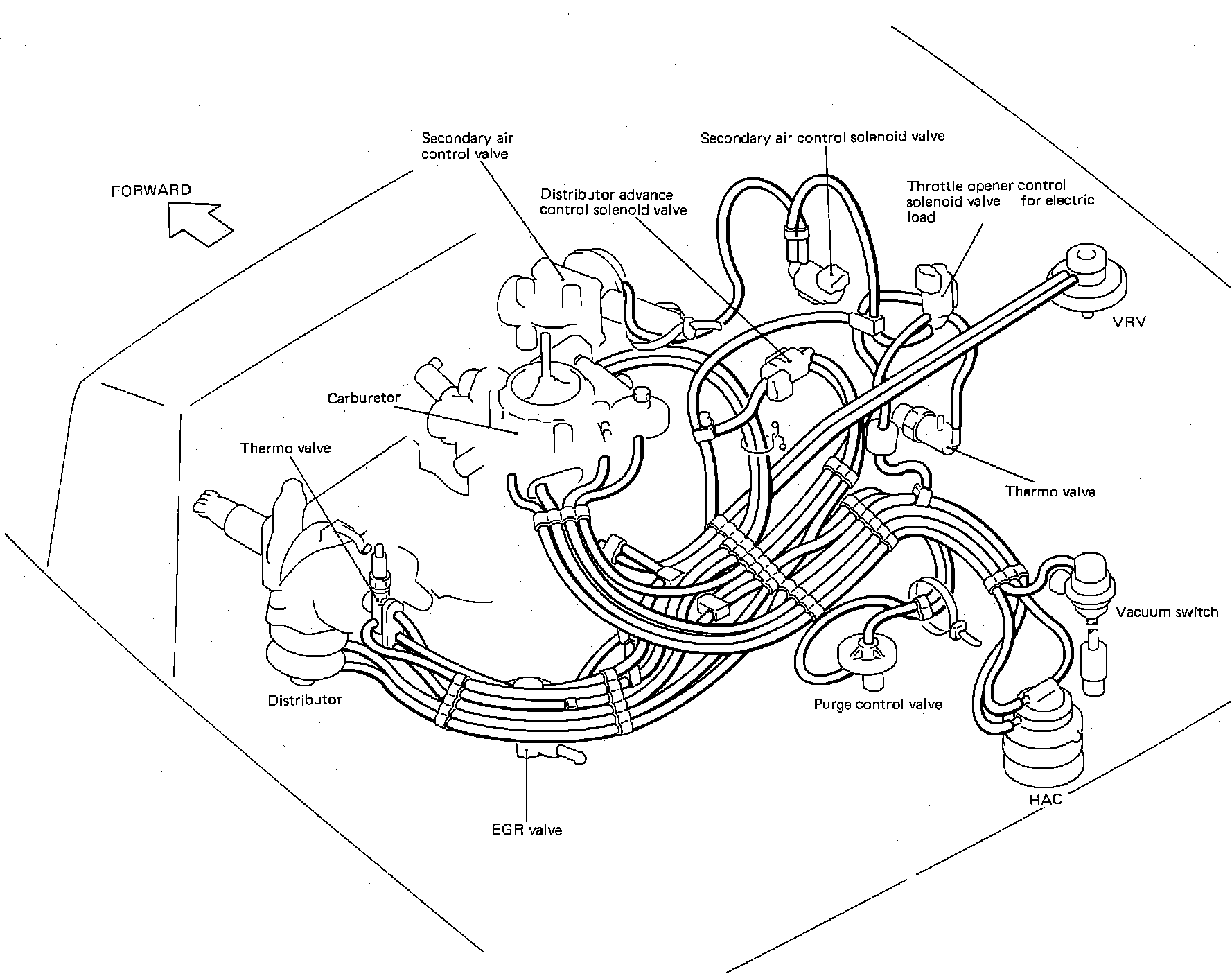

Fig. 237 Vacuum hose routing diagram:
