Feedback Carburetor System Schematic -- Calif.

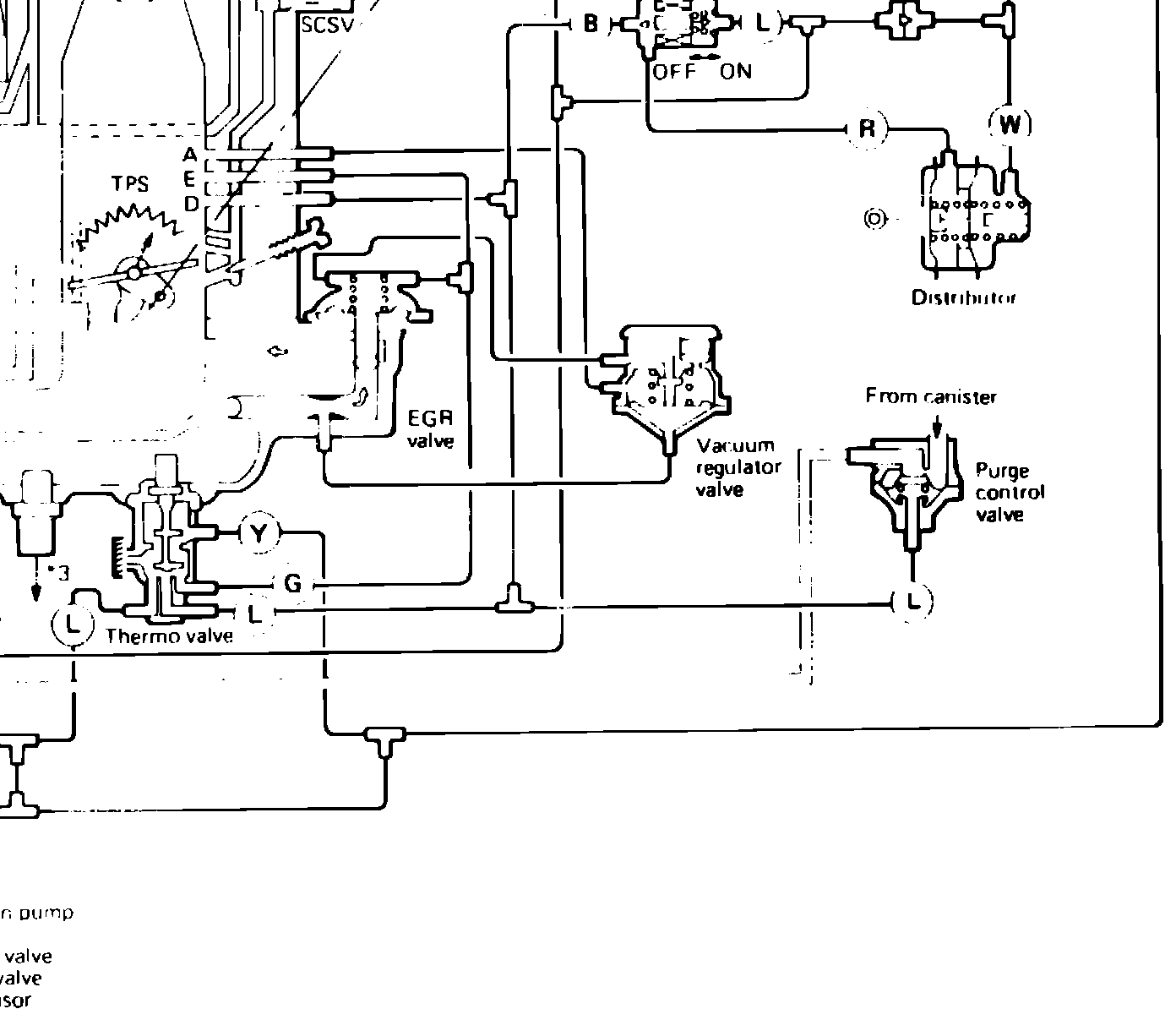

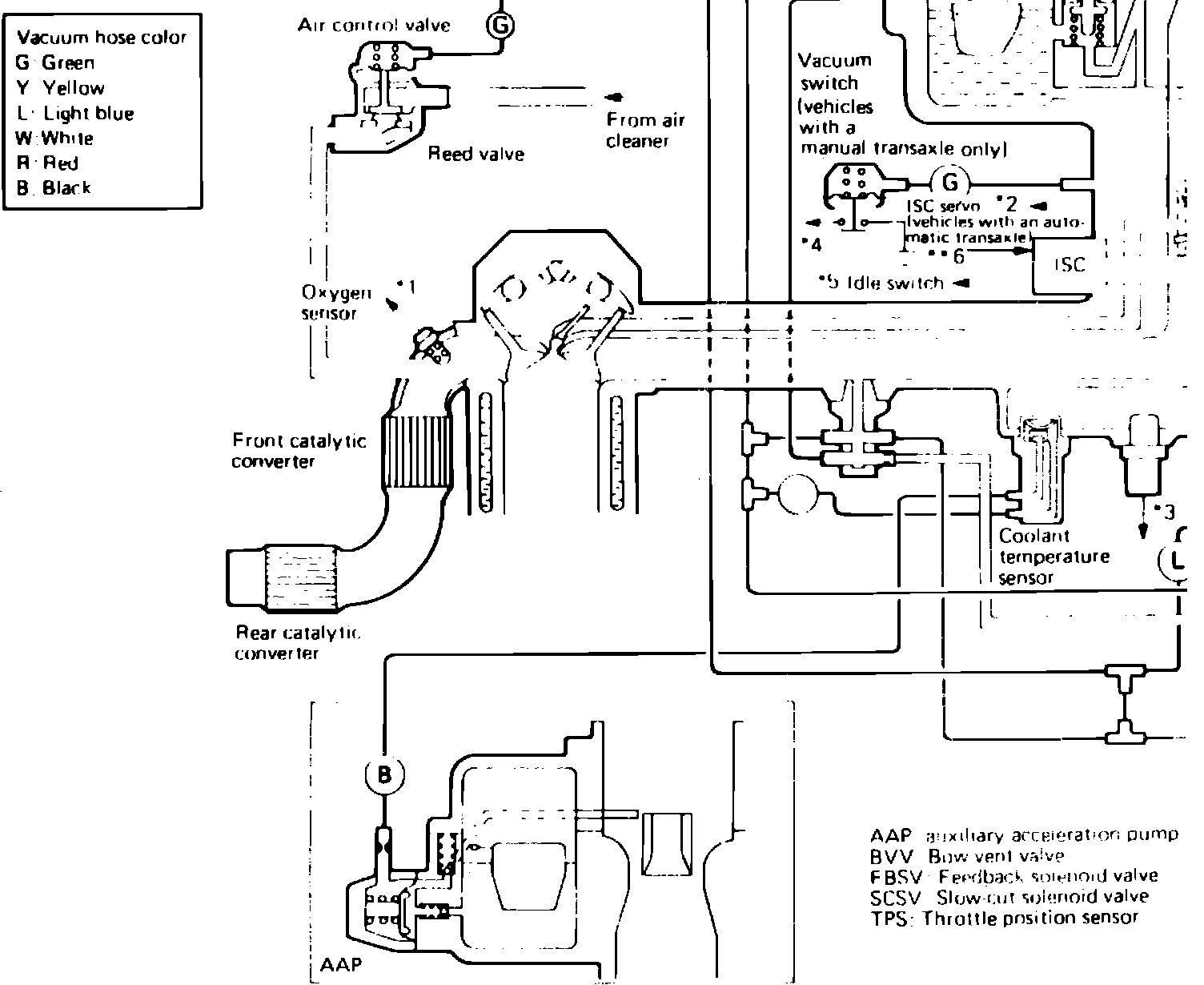

Fig. 7a Electronic feedback carburetor system.:

Fig. 7b Electronic feedback carburetor system, California. (2 of 4):

Fig. 7c Electronic feedback carburetor system, California. (3 of 4):

Fig. 7d Electronic feedback carburetor system, California. (4 of 4):
