Feedback Carburetor System Wiring Diagram (Auto. Trans.)
Feedback Carburetor System Wiring Diagram (Auto. Trans.)

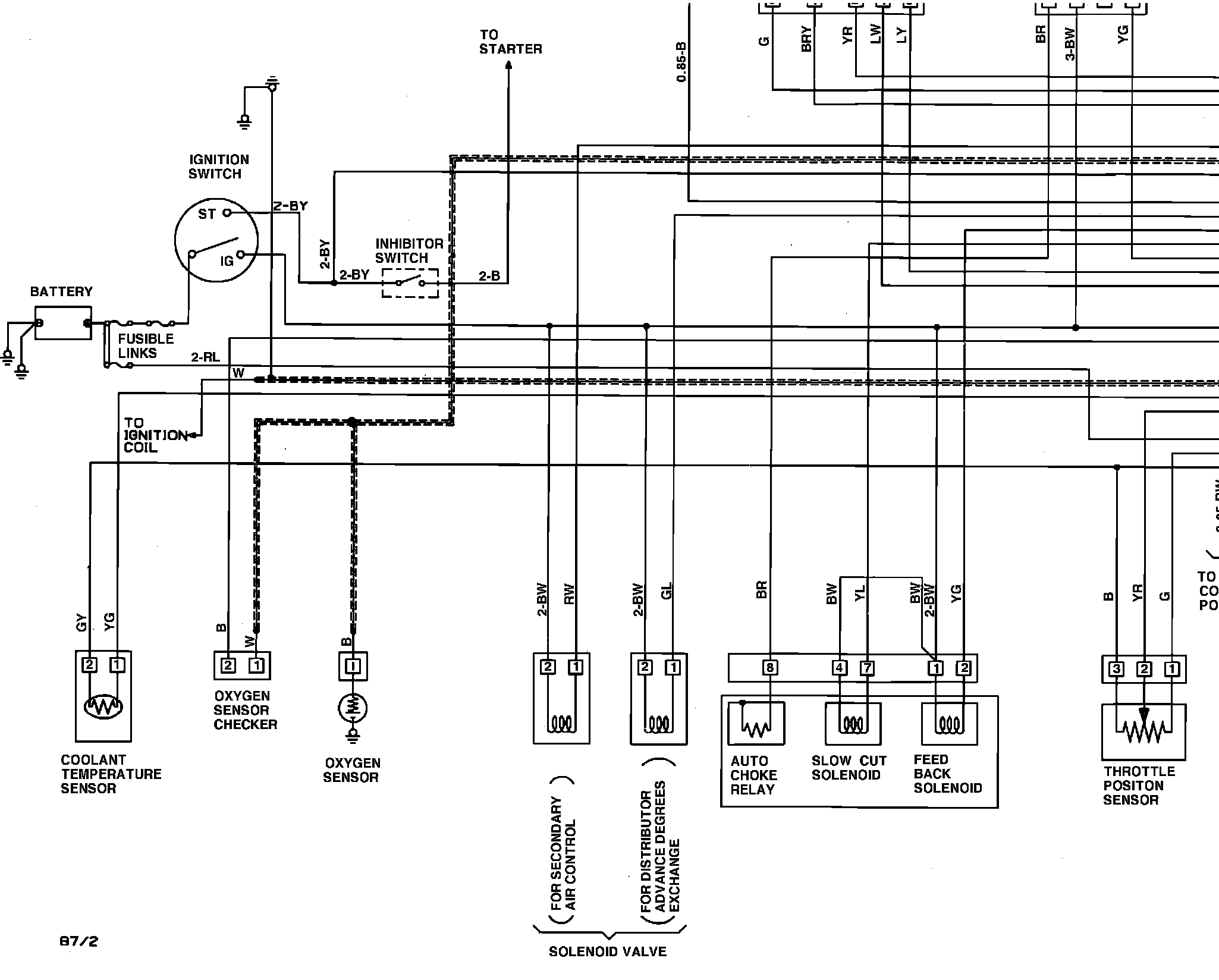

�e/��e/��e/Fig. 45d Feedback Carburetor Wiring Circuit. W/Automatic Transmission (Part 4 of 4):
