Turbocharger - Removal/Installation Manual Update
86mitsubishi01SUBJECT: TURBOCHARGER REMOVAL/INSTALLATION - SERVICE MANUAL UPDATE
NO. STB-86-09-002
DATE February, 1986
MODEL Mirage, Starion
Cordia/Tredia
STB Revision STB-86-09-002
PURPOSE This bulletin is issued to correct the turbo charger illustrations and installation procedures in the 1986 Service Manuals. (You will note that the manuals show non-watercooled units). As reference to this bulletin, please write the STB number in the revision boxes on the following Service Manual pages:
1986 Mirage Service Manual Page 9-94 1986 Cordia/Tredia Service Manual Pages 9-66 and 9-67 1986 Starion Service Manual Pages 9-56 and 9-57.
INSTRUCTIONS Instructions for Mirage are on Page 2, Cordia/Tredia on Pages 3 and 4, and Starion on Pages 5 and 6.

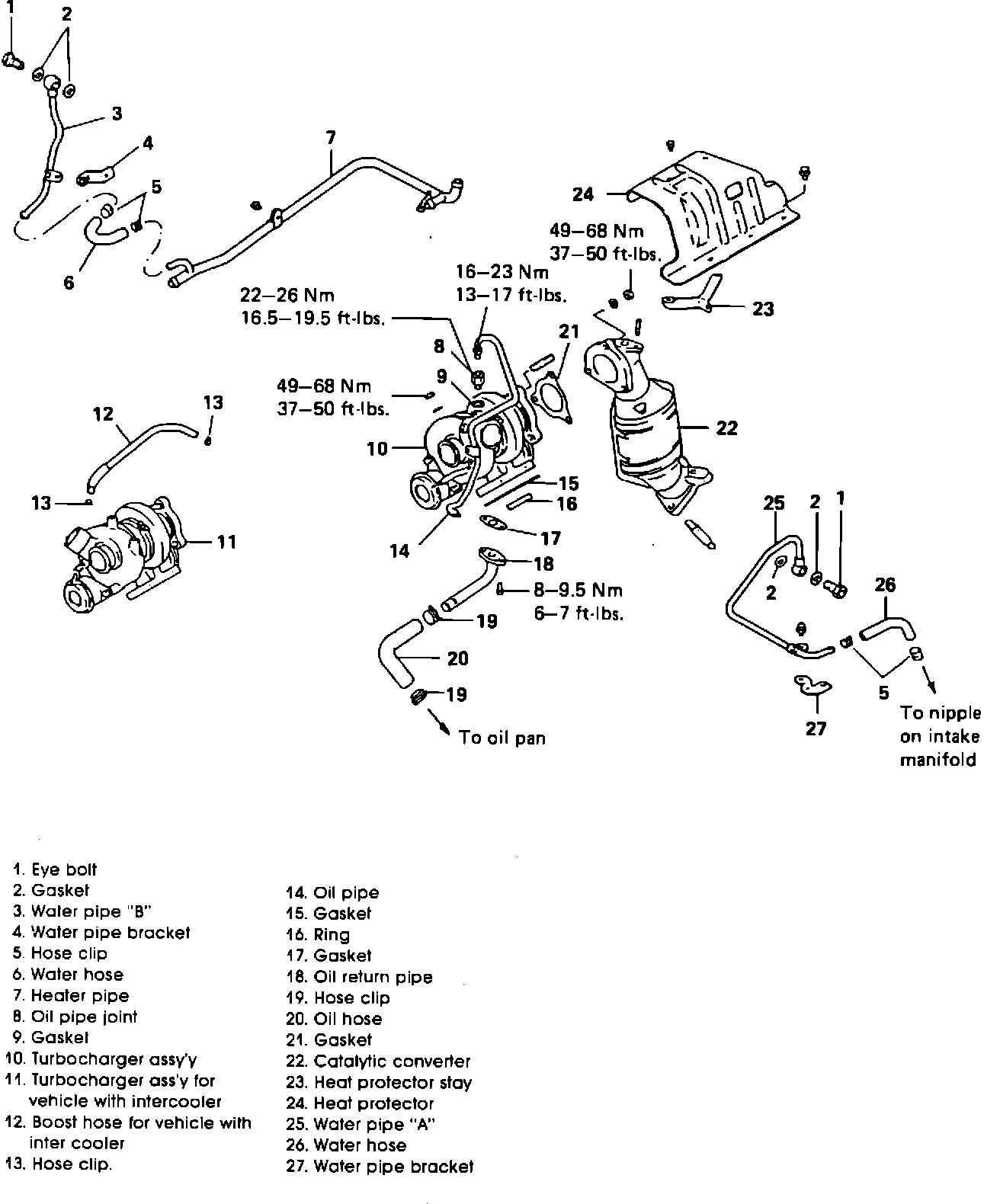

1986 MIRAGE SERVICE MANUAL PAGE 9-94 ENGINE-TURBOCHARGER
Removal steps at right refer to numbers in the illustration. Installation is the reverse of removal.
1986 CORDIA/TREDIA SERVICE MANUAL PAGE 9-66 COMPONENT SERVICE - TURBOCHARGER The illustration supersedes the illustration on Page 9-66.

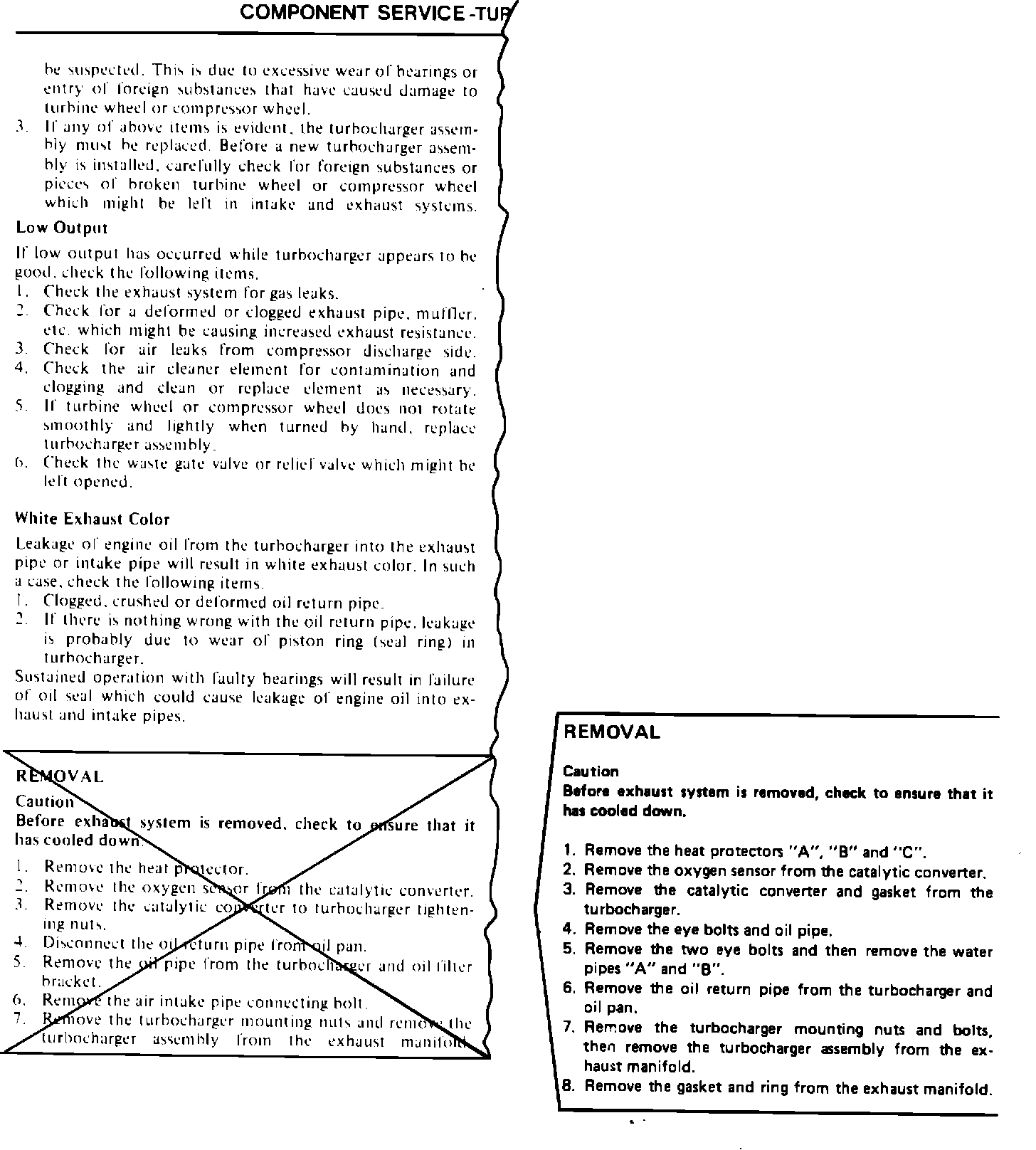

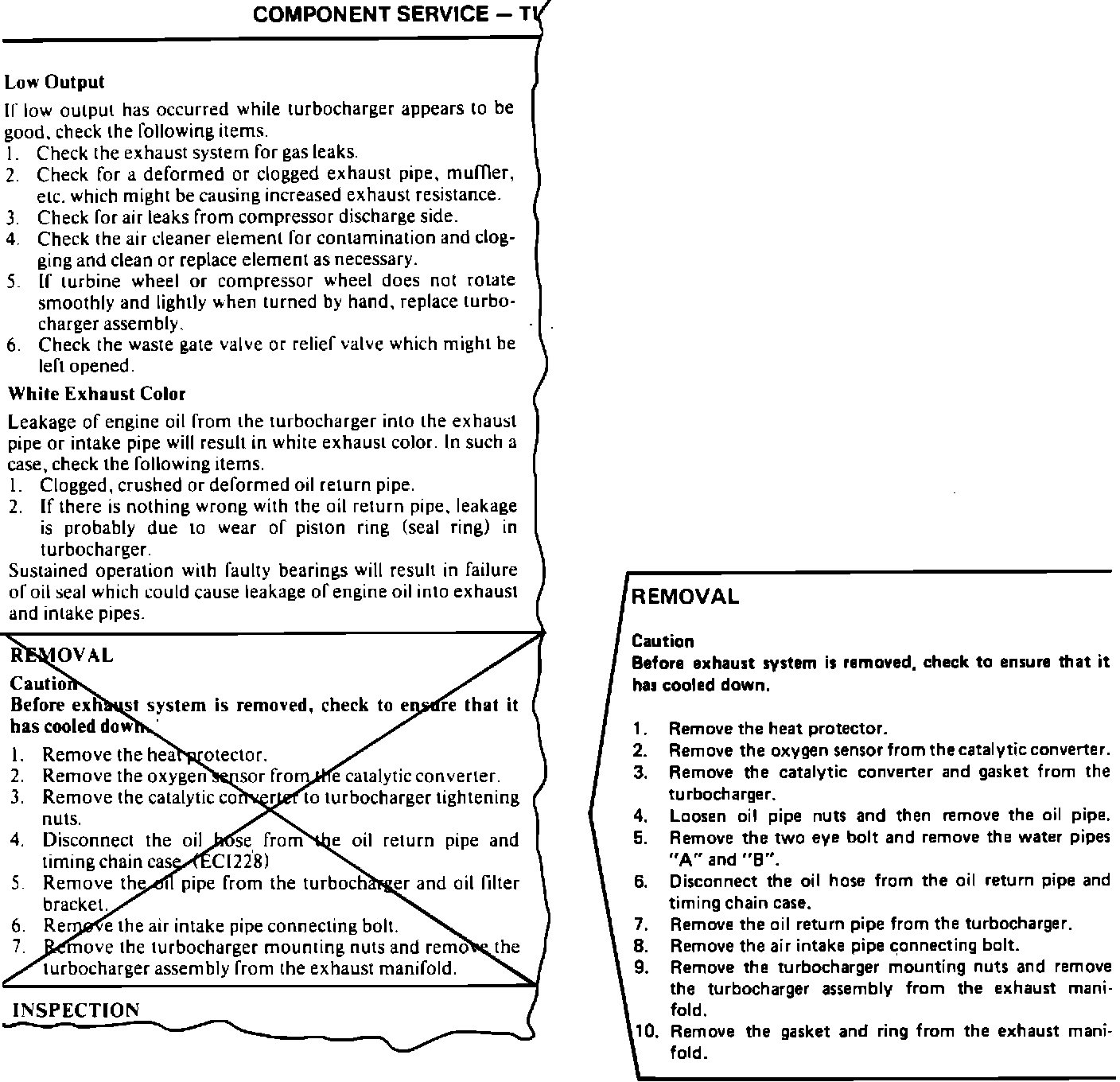

1986 CORDIA/TREDIA SERVICE MANUAL PAGE 9-67 COMPONENT SERVICE - TURBOCHARGER Replace the "Removal" steps as illustrated.

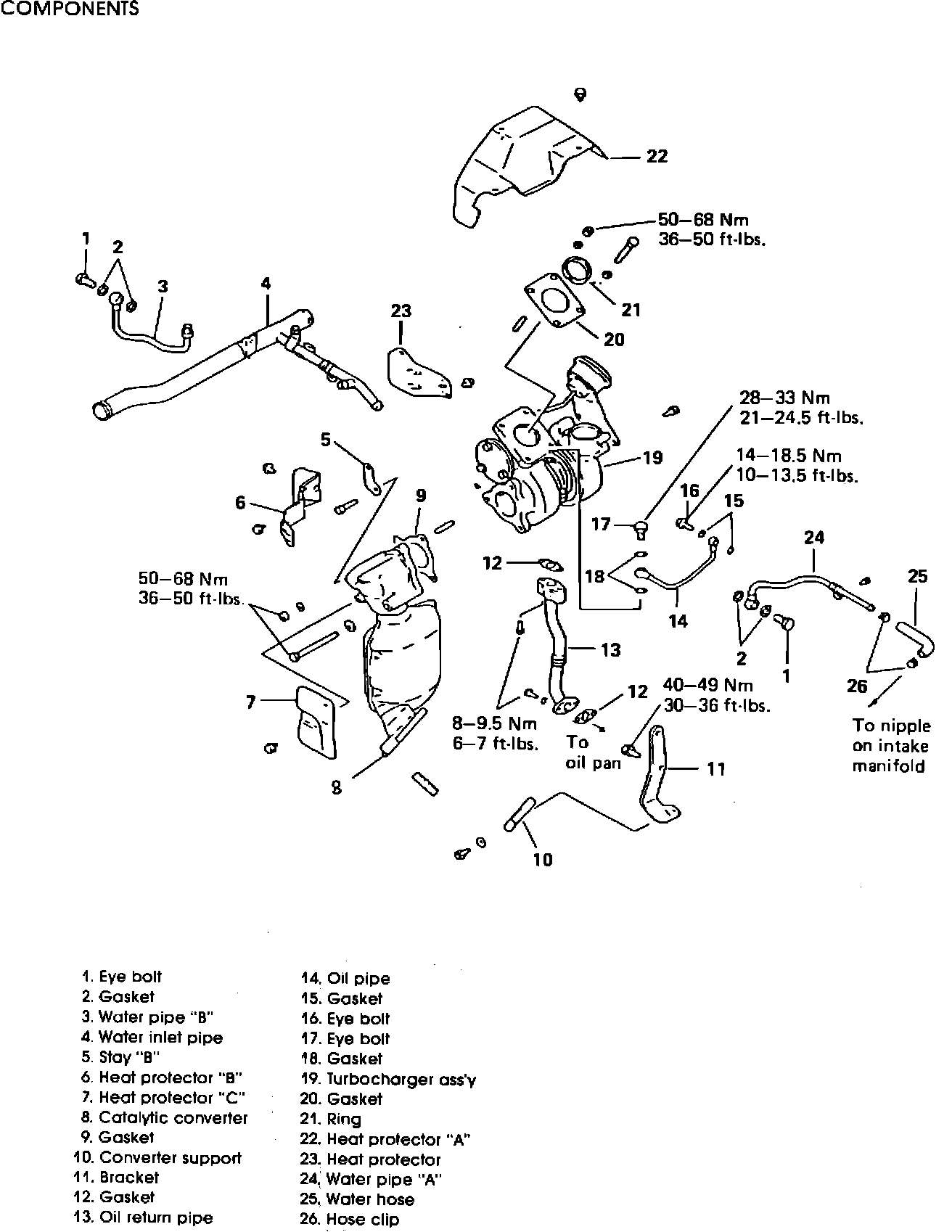

1986 STARION SERVICE MANUAL PAGE 9-56 COMPONENT SERVICE - TURBOCHARGER Replace the illustration with the revised illustration shown.
1986 STARION SERVICE MANUAL PAGE 9-57 COMPONENT SERVICE - TURBOCHARGER Replace the "Removal" procedure with the one shown.
