Paint - Color Codes and Applications
86mitsubishi03SUBJECT:
1987 EXTERIOR COLOR CODES AND APPLICATIONS
NO. STB-86-23-006
DATE August, 1986
MODEL All
Refer to service technical Bulletin STB-23-006, February 1987, for supplement information
PURPOSE
This bulletin lists the 1987 exterior color codes, vehicle applications, and paint manufacturers' stock numbers for use when ordering refinishing materials from your local automotive paint dealer. There are fourteen exterior colors for 1987; ten are carried over from 1986, and four are new colors. In Table I below, the new colors are identified by asterisks (*).
There are seven two-tone combinations. These are shown in Table II, Page 2.
Manufacturers stock numbers for all 1987 exterior colors are given in Table III, Page 2.
TABLE I: 1987 EXTERIOR SINGLE-COLOR APPLICATIONS
TABLE II: 1987 TWO-TONE EXTERIOR COLOR COMBINATIONS
Upper/Lower Code Vehicle Application
Baltic Blue/Silver B21 Montero Sport
Dakar Sand/Black C38 Montero Sport
Bright Silver/Black H15 Montero Sport
California Red/Black R06 Montero Sport
Florence Beige/Black S69 Montero Sport
Selbia Black/Kaiser Silver X30 Truck
Selbia Black/Silver X45 Montero Sport

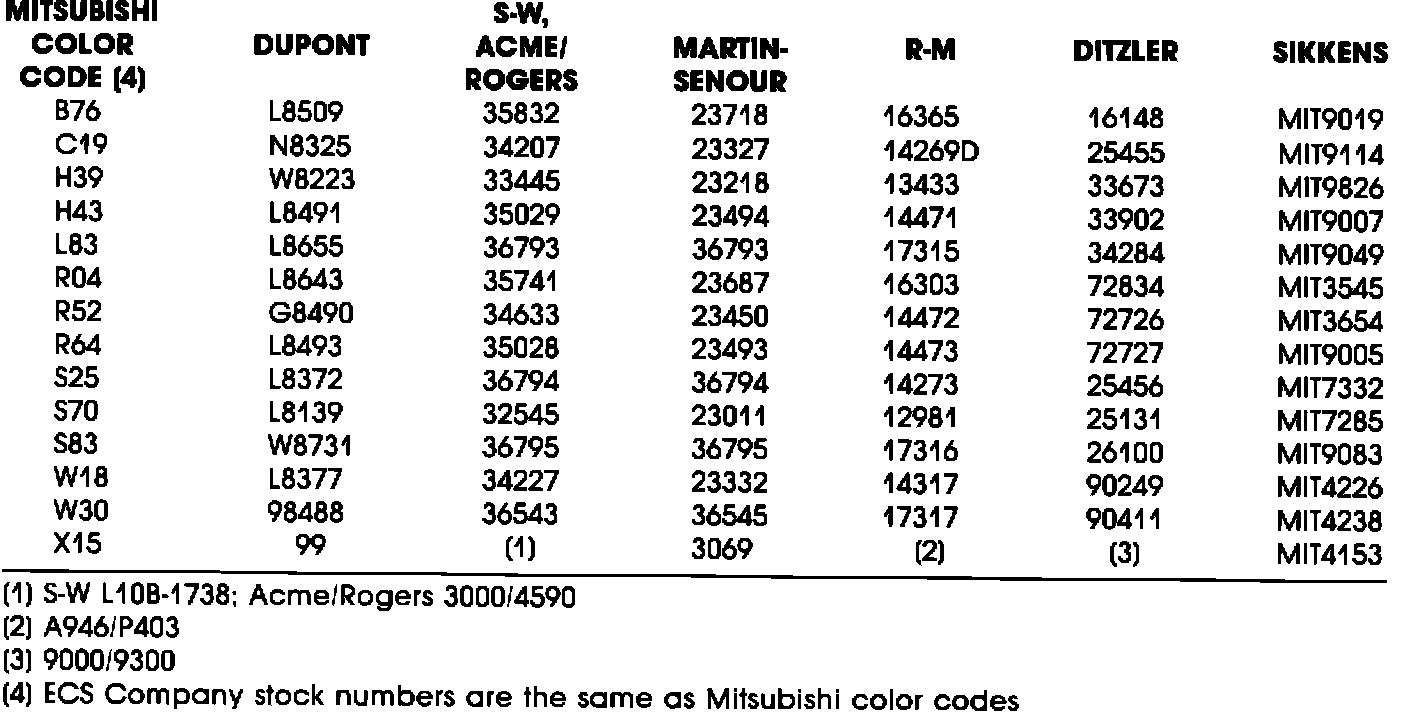

TABLE III: MANUFACTURERS' STOCK NUMBERS FOR EXTERIOR REFINISHING MATERIALS
