Engine - Service Manual Updates
86mitsubishi01SUBJECT:
1986 SERVICE MANUAL UPDATES - ENGINE
NO. STB-86-09-004
DATE February, 1986
MODEL 1986 Mirage, Cordia/
Tredia, Truck, Montero
STB Revision STB-86-09-004
PURPOSE This bulletin is issued to correct the Engine sections in 1986 Service Manuals. As reference to this bulletin, please write the STB number in the boxes on the following pages:
1986 Mirage Service Manual:
Page 9-5
1986 Cordia/Tredia Service Manual:
Page 9-5
1986 Truck Service Manual:
Page 9-4 Page 9-8
1986 Montero Service Manual:
Page 9-6

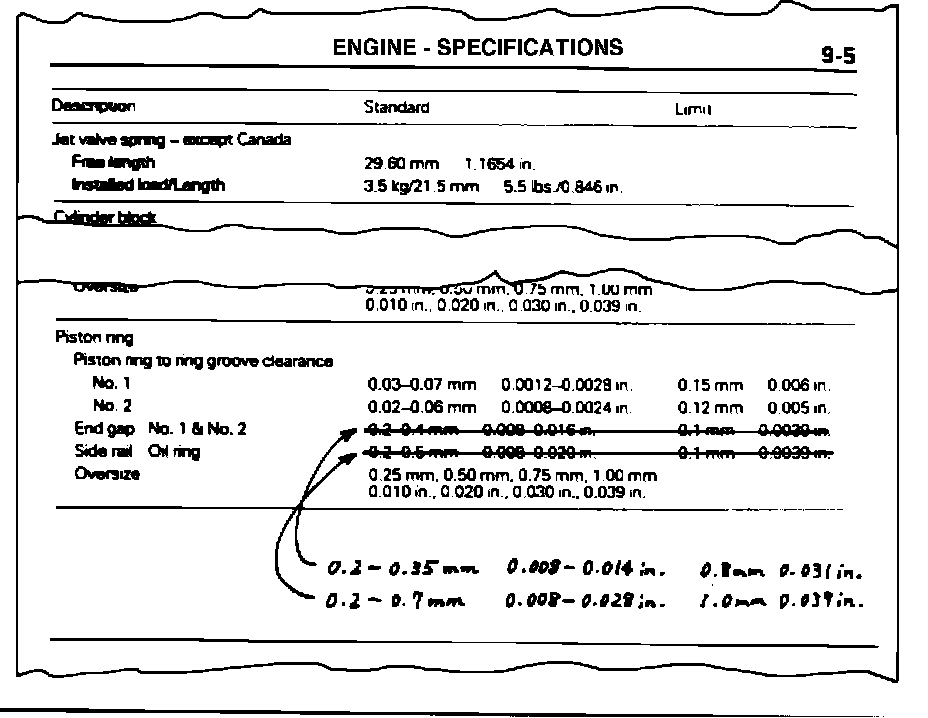

CORRECTIONS 1986 MIRAGE SERVICE MANUAL PAGE 9-5 ENGINE - SPECIFICATIONS Change the piston ring end gap specifications as illustrated below.

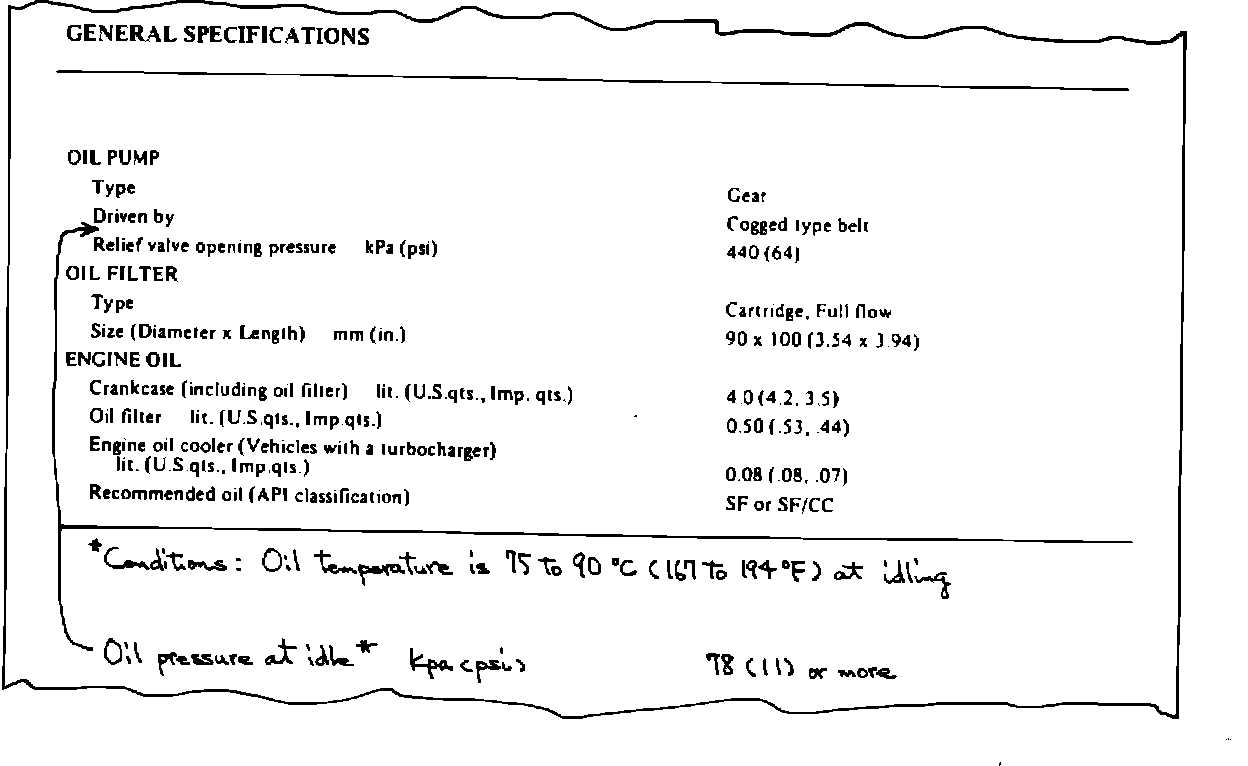

1986 CORDIA/TREDIA SERVICE MANUAL PAGE 9-5 GENERAL SPECIFICATIONS
Add a specification for engine oil pressure at idle as illustrated below.

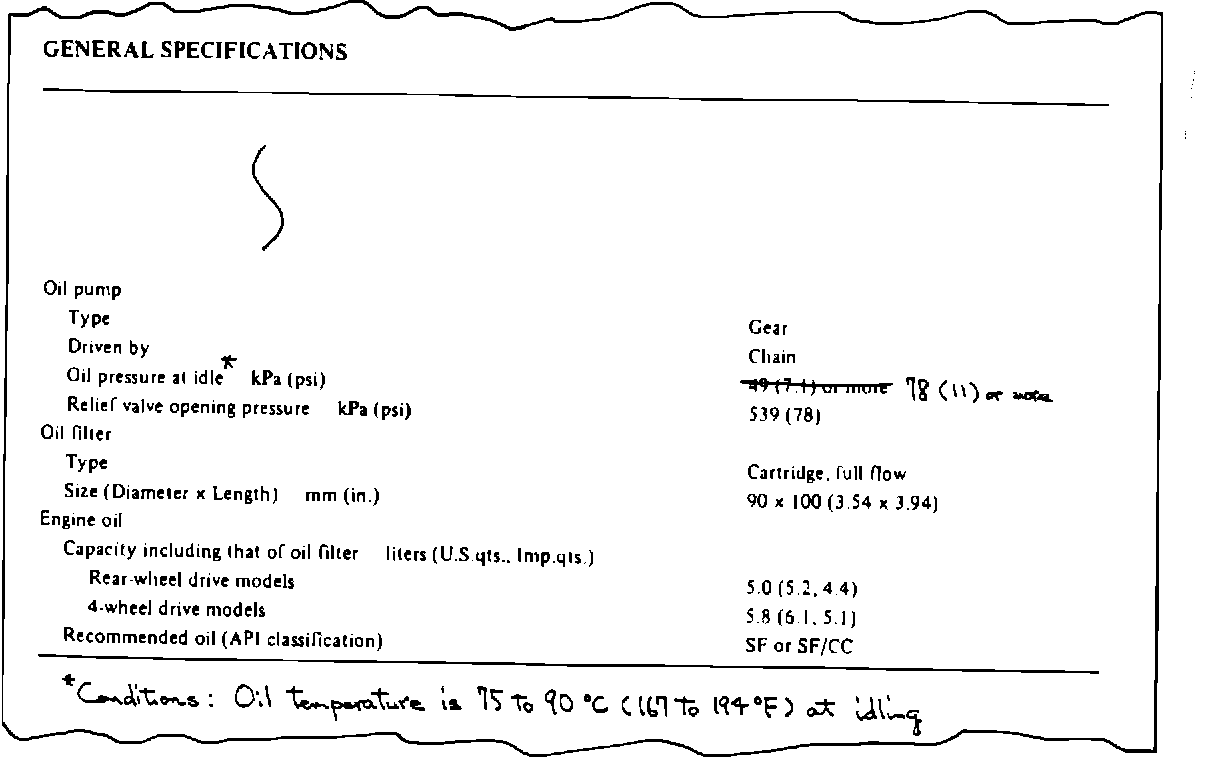

1986 MONTERO SERVICE MANUAL PAGE 9-6 GENERAL SPECIFICATIONS Change the idle oil pressure specification, and add engine temperature conditions for oil pressure specification measurement as illustrated below.

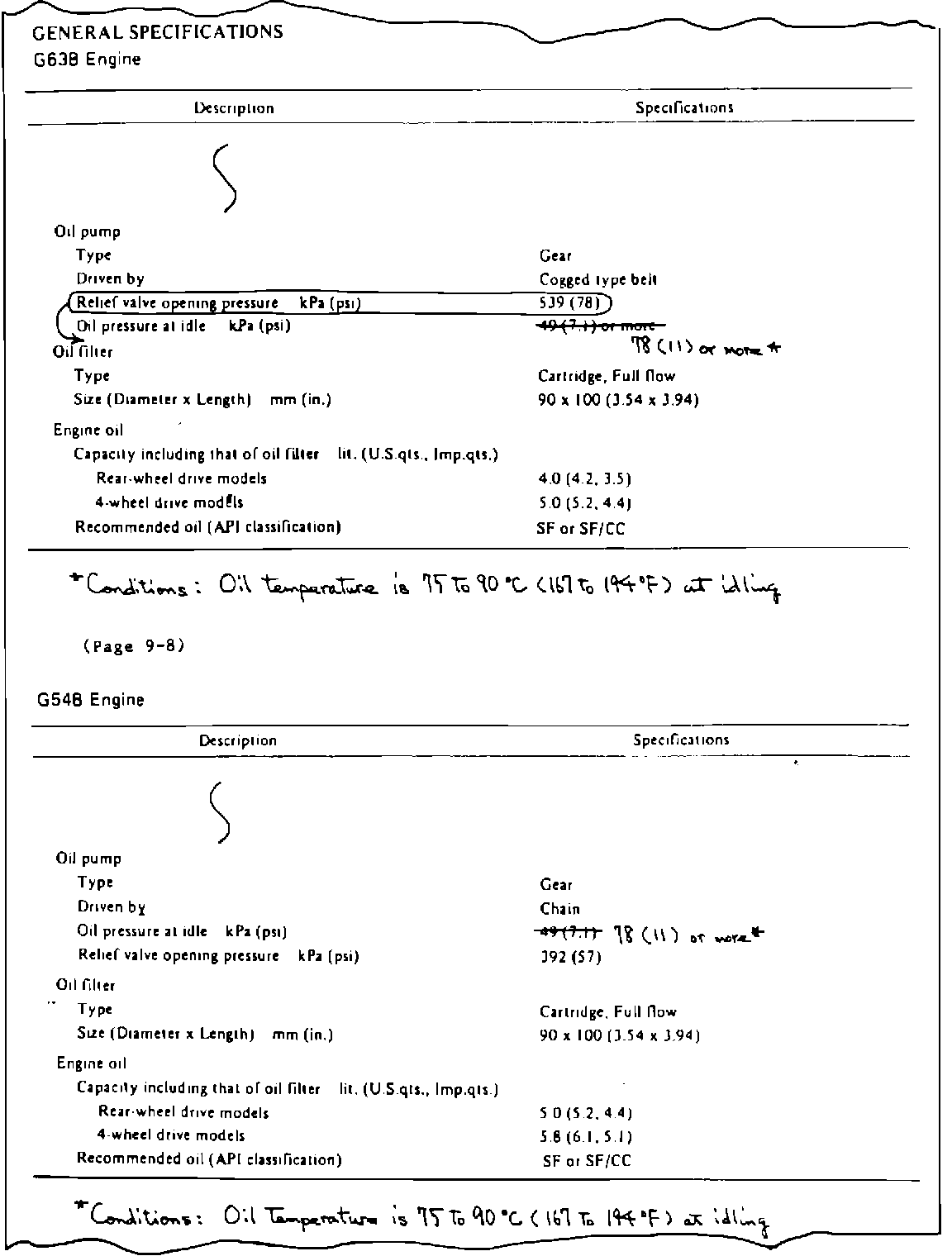

1986 TRUCK SERVICE MANUAL PAGE 9-4 GENERAL SPECIFICATIONS
Relocate the oil pump relief valve opening pressure, change the idle oil pressure specification, and add the temperature condition for idle oil pressure measurement as shown below.
