Vacuum Hose Routing Diagram (Fed. W/Man. Trans.)

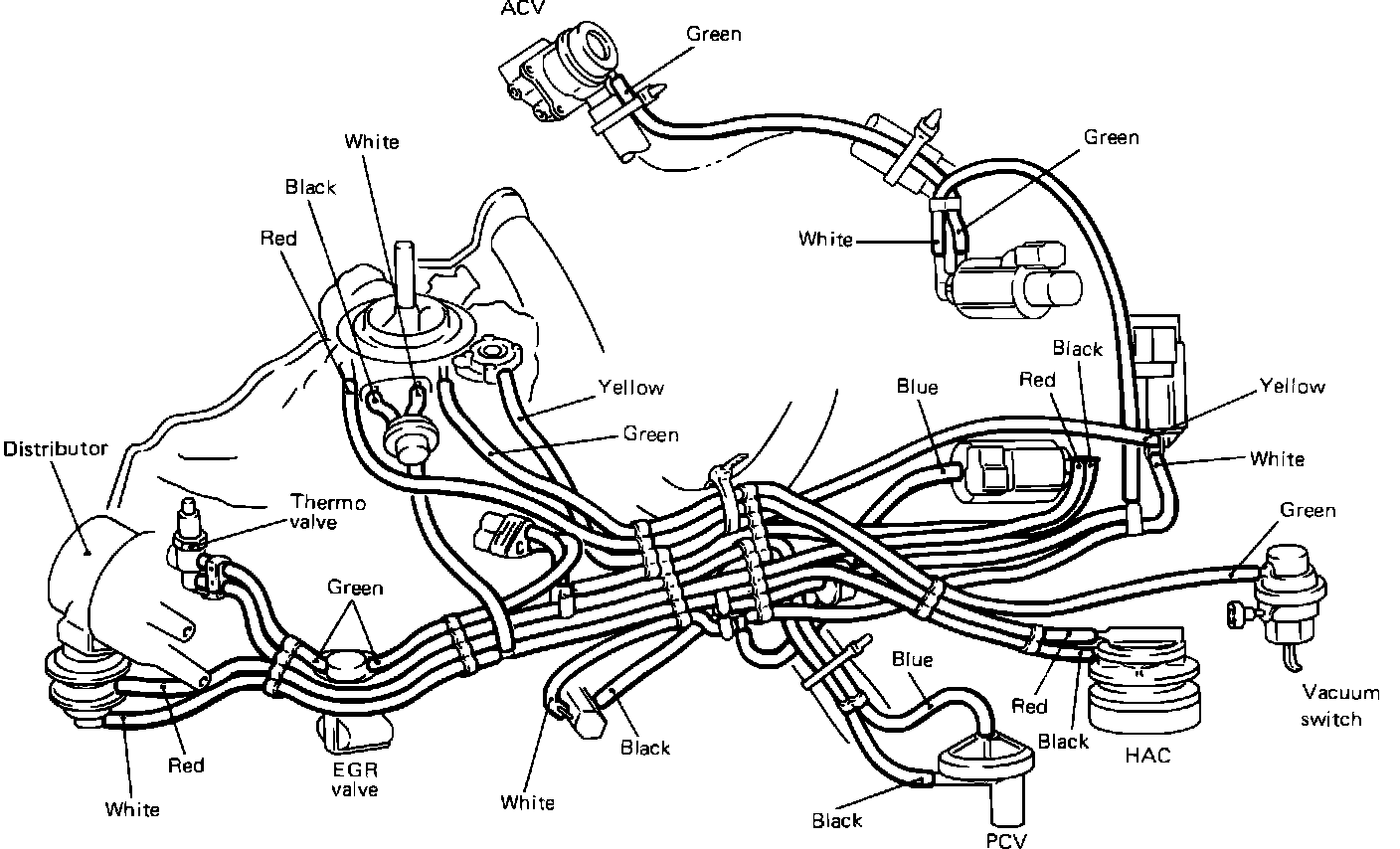

Fig. 205 Vacuum hose routing diagram (Federal, man. transaxle):
