Vacuum Hose Routing Diagram (Calif. W/Man. Trans.)
Vacuum Hose Routing Diagram (Calif. W/Man. Trans.)

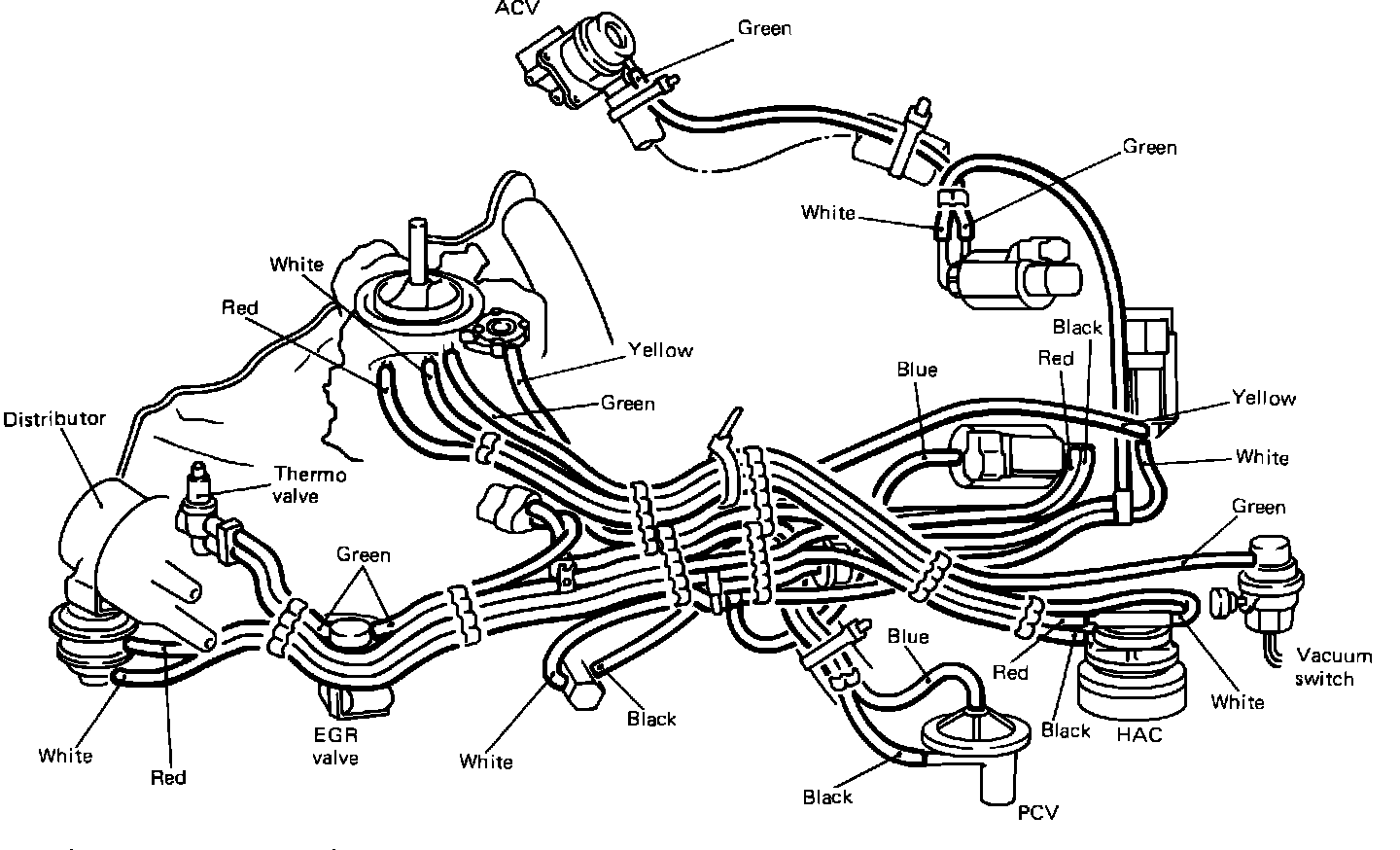

Fig. 207 Vacuum hose routing diagram (California, man. transaxle):
