Vacuum Hose Routing Diagram (Calif. W/Auto Trans.)
Vacuum Hose Routing Diagram (Calif. W/Auto Trans.)

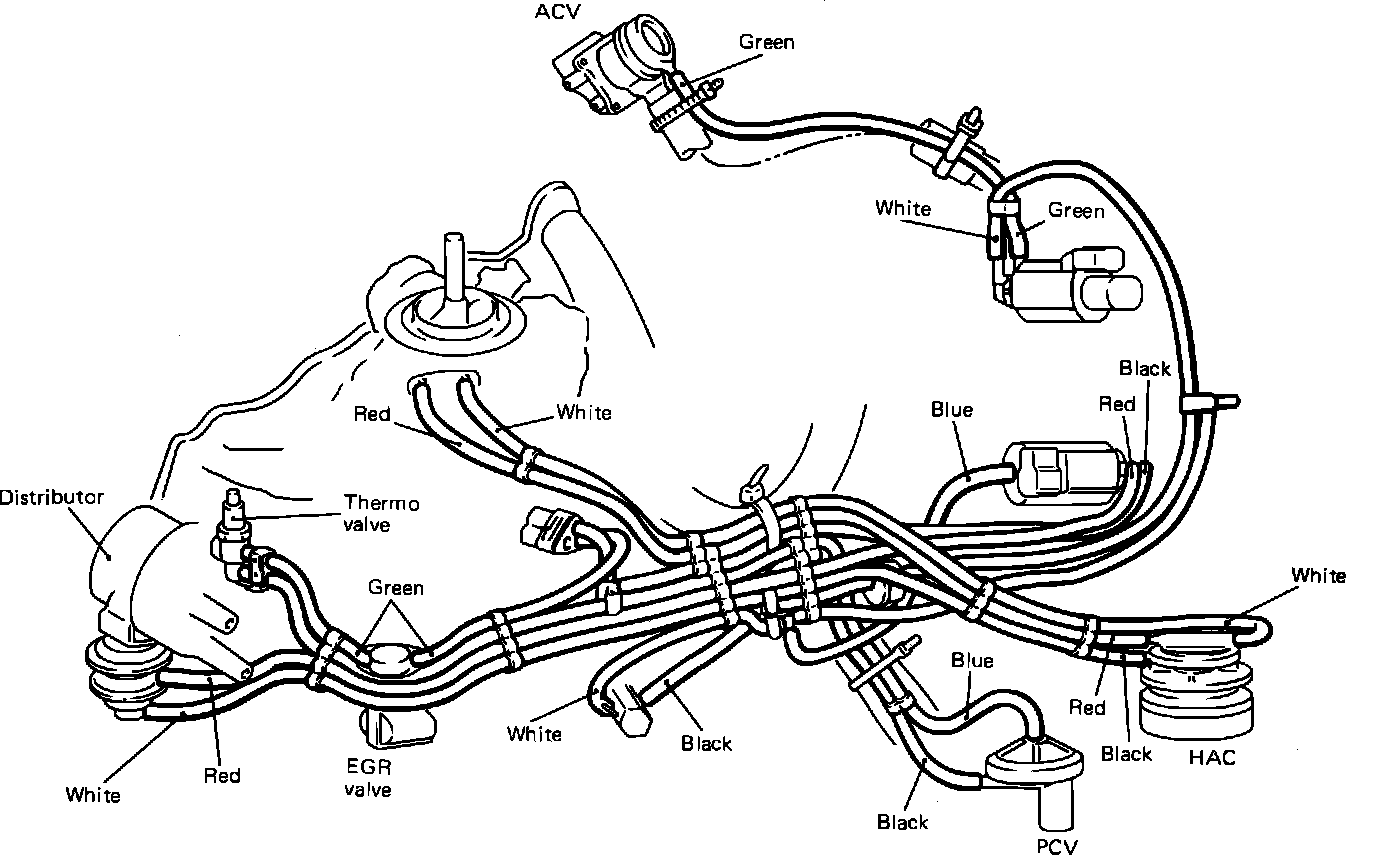

Fig. 208 Vacuum hose routing diagram (California, auto. transaxle):
