Manual Transmission/Transaxle
Manual Transmission/Transaxle

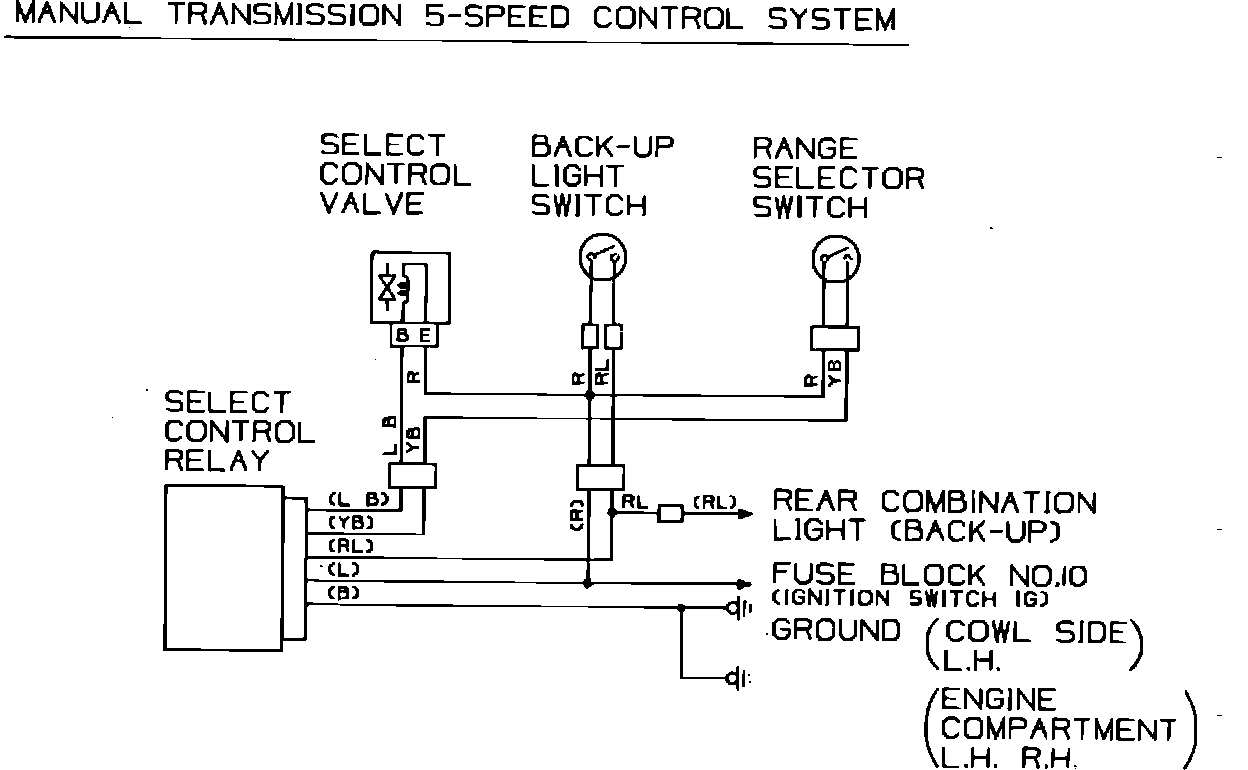

Fig. 10 Manual Transaxle Wiring W/5 Speed:
