Mitsubishi
>>
1986
>>
Tredia L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Less Turbocharger
Less Turbocharger

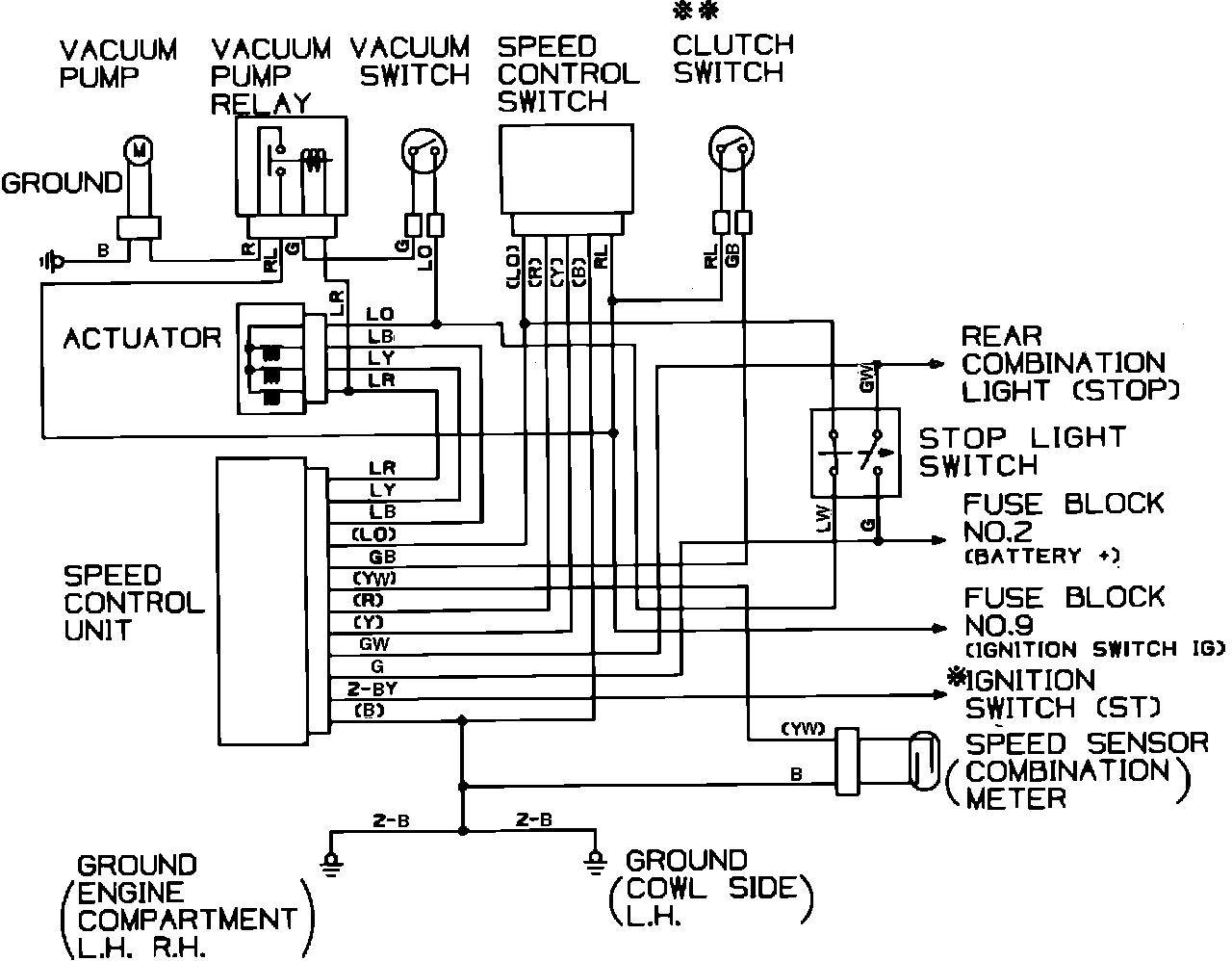

Fig. 15 Speed Control Less Turbocharger:
