Transaxle - Service Manual Update
86mitsubishi02SUBJECT: 1986 MIRAGE SERVICE MANUAL UPDATE - TRANSAXLE
NO. STB-86-21-002
DATE February, 1986
MODEL 1986 Mirage
STB Revision 86-21-002
PURPOSE This bulletin is issued to correct the Transaxle section in the 1986 Mirage Service Manual. As reference to this bulletin, please write the STB number in the revision boxes on Pages 21-25 and 21-26.

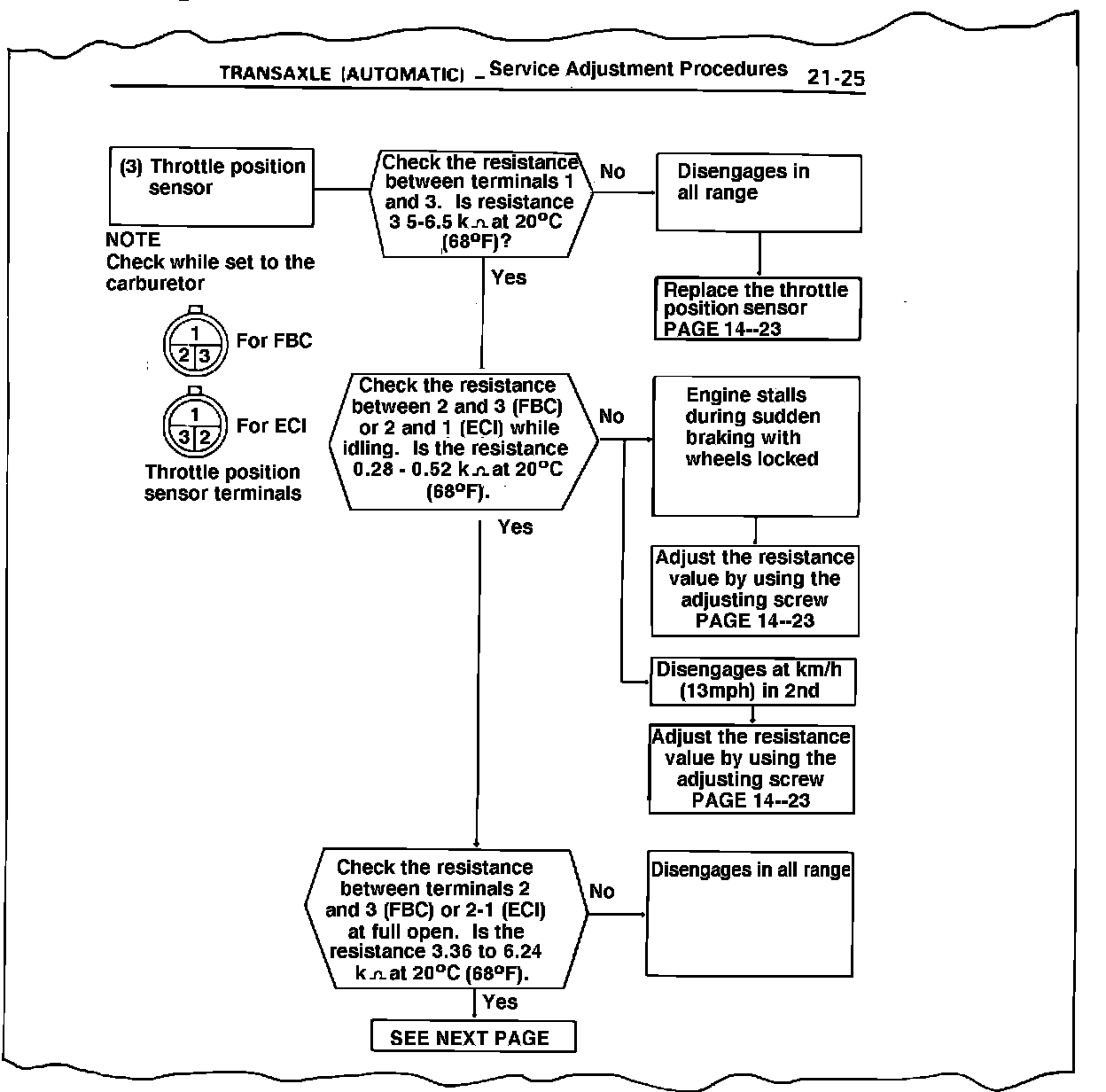

REVISION PAGE 21-25 TRANSAXLE (AUTOMATIC) - SERVICE ADJUSTMENT PROCEDURES Revise the diagnostic chart as illustrated below.

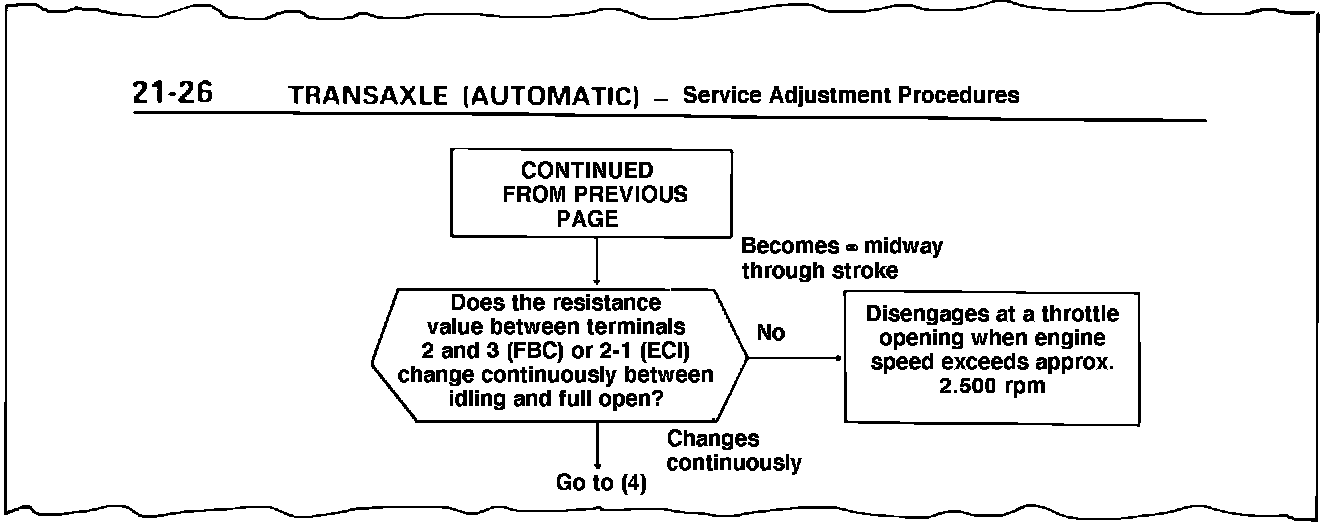

PAGE 21-26 TRANSAXLE (AUTOMATIC) - SERVICE ADJUSTMENT PROCEDURES Revise the diagnostic chart as illustrated below.
