Body - Alignment Specifications Update

87mitsubishi03

SUBJECT:
MIRAGE BODY ALIGNMENT SPECIFICATIONS - SERVICE MANUAL UPDATE
NO. STB-87-13-002

DATE May, 1987

MODEL 1986 Mirage
STB Revision 87-13-002


PURPOSE

This bulletin issued to correct a printing error in the Body group of the 1986 Mirage Service Manual. Please write the STB revision number in the STB Revision box on the affected page.

MANUAL AFFECTED

1986 Mirage Service Manual page 13-12.



CORRECTION

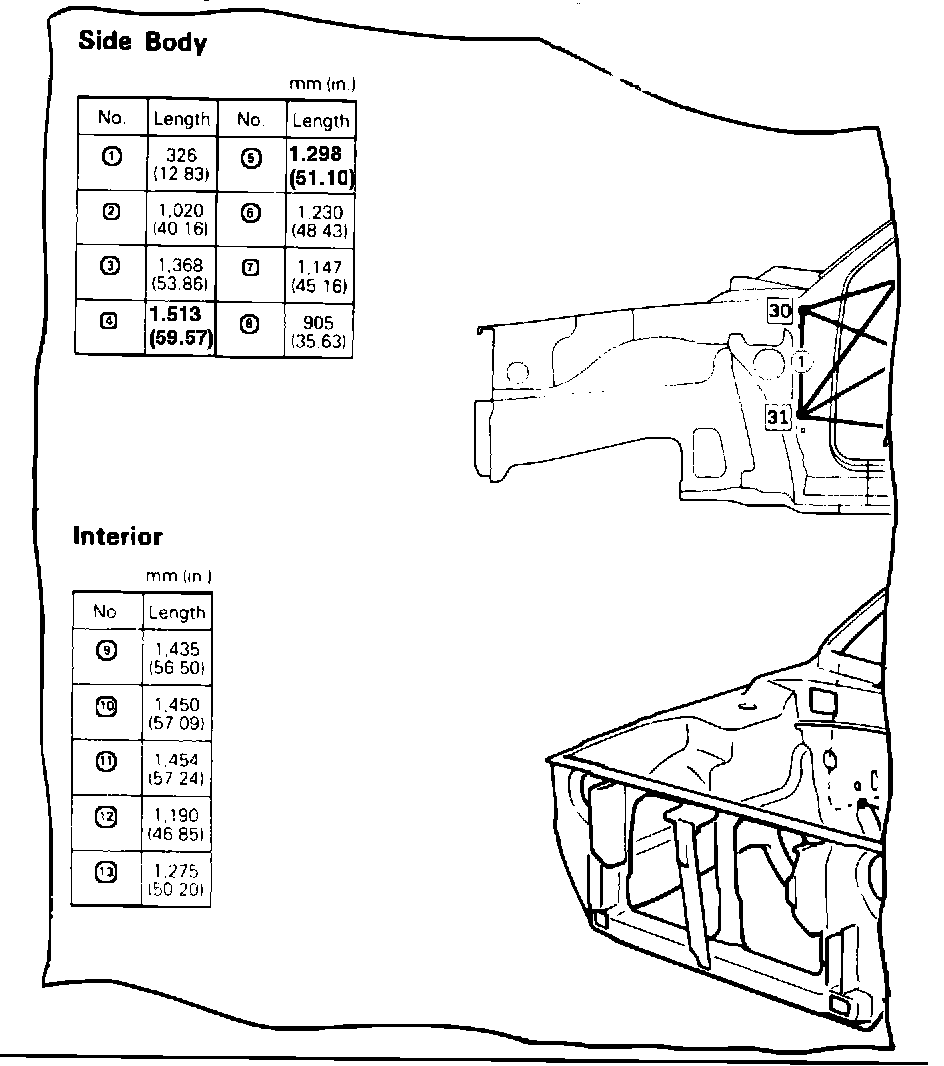

The dimensions shown in the Side Body dimension chart on page 13-12, items number 4 and 5, are incorrect and must be changed as shown below.
