A/T - Service Manual Update

87mitsubishi04

SUBJECT:

MIRAGE TRANSAXLE - SERVICE MANUAL UPDATE
NO. STB-87-21-021

DATE June, 1987

MODEL 1985-86 Mirage
STB Revision 87-21-021


PURPOSE

This bulletin is issued to update the 1985 and 1986 Mirage Service Manuals. Procedures in the disassembly and assembly of the transaxle have been altered as shown below. Please write the STB number in the STB revision box on each of the pages affected.

MANUALS AFFECTED

1985 Mirage Service Manual pages 21-127 and 21-129. 1986 Mirage Service Manual pages 21-115 and 21-117.



CHANGE

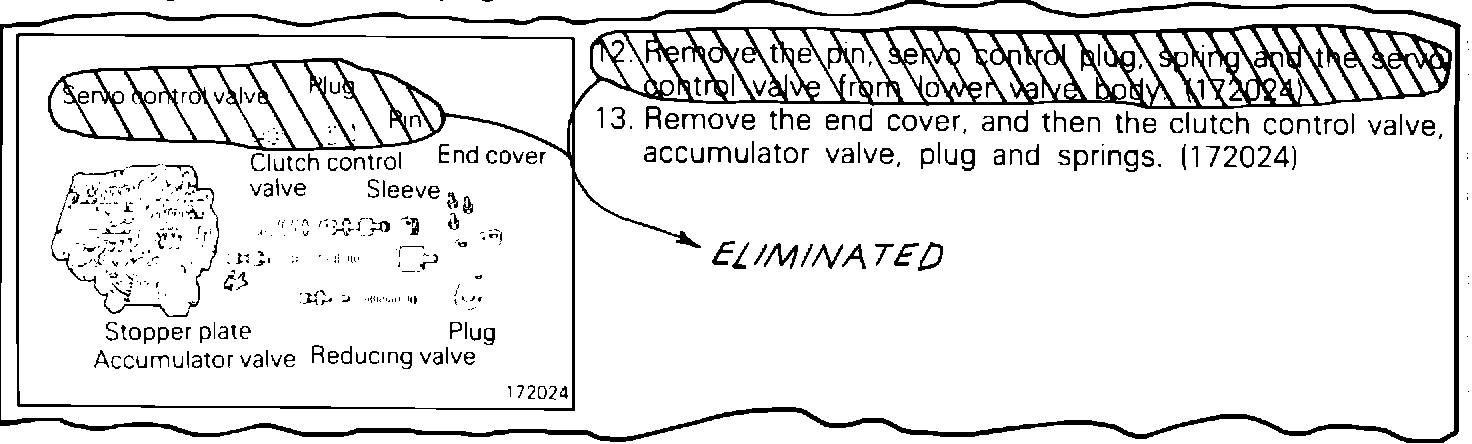

1985 Mirage Service Manual page 21-127. 1986 Mirage Service Manual page 21-115.

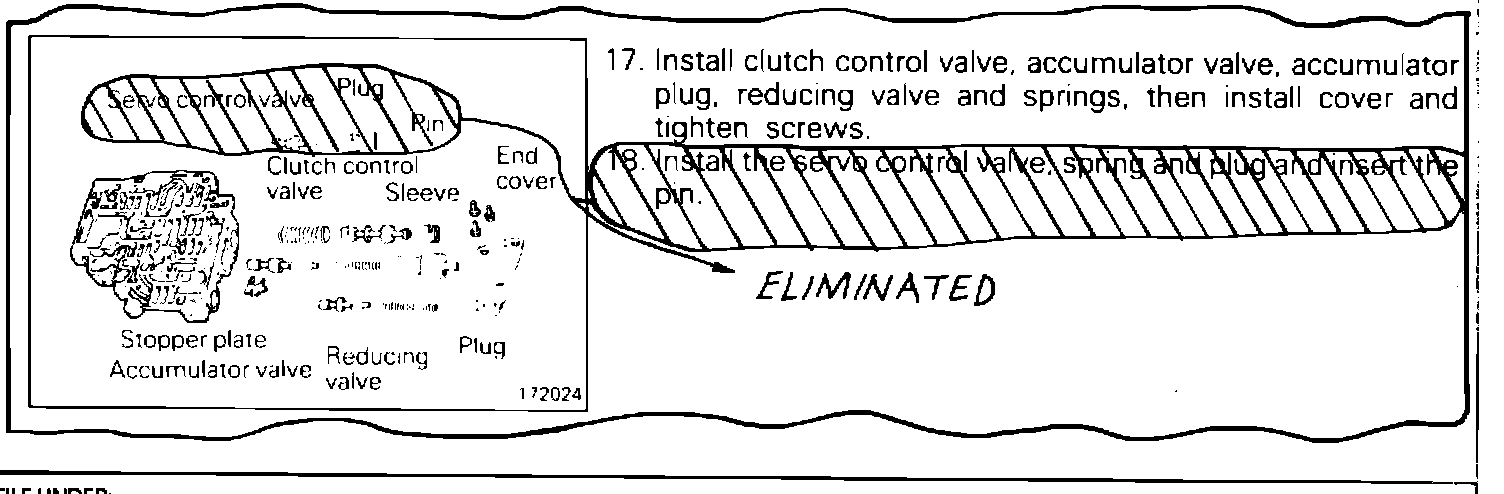

1985 Mirage Service Manual page 21-129. 1986 Mirage Service Manual page 21-117.
