Fuel System - Service Manual Updates
86mitsubishi01SUBJECT: 1986 SERVICE MANUAL UPDATES - FUEL SYSTEM
NO. STB-86-14-001
DATE February, 1986
MODEL 1986 Mirage
STB Revision 86-14-001
PURPOSE This bulletin is issued to update the Fuel System Section of the 1986 Mirage Service Manual. As reference to this bulletin, please write the STB number in the revision boxes on the following pages.
Page 14-6 Pages 14-39 through 14-43

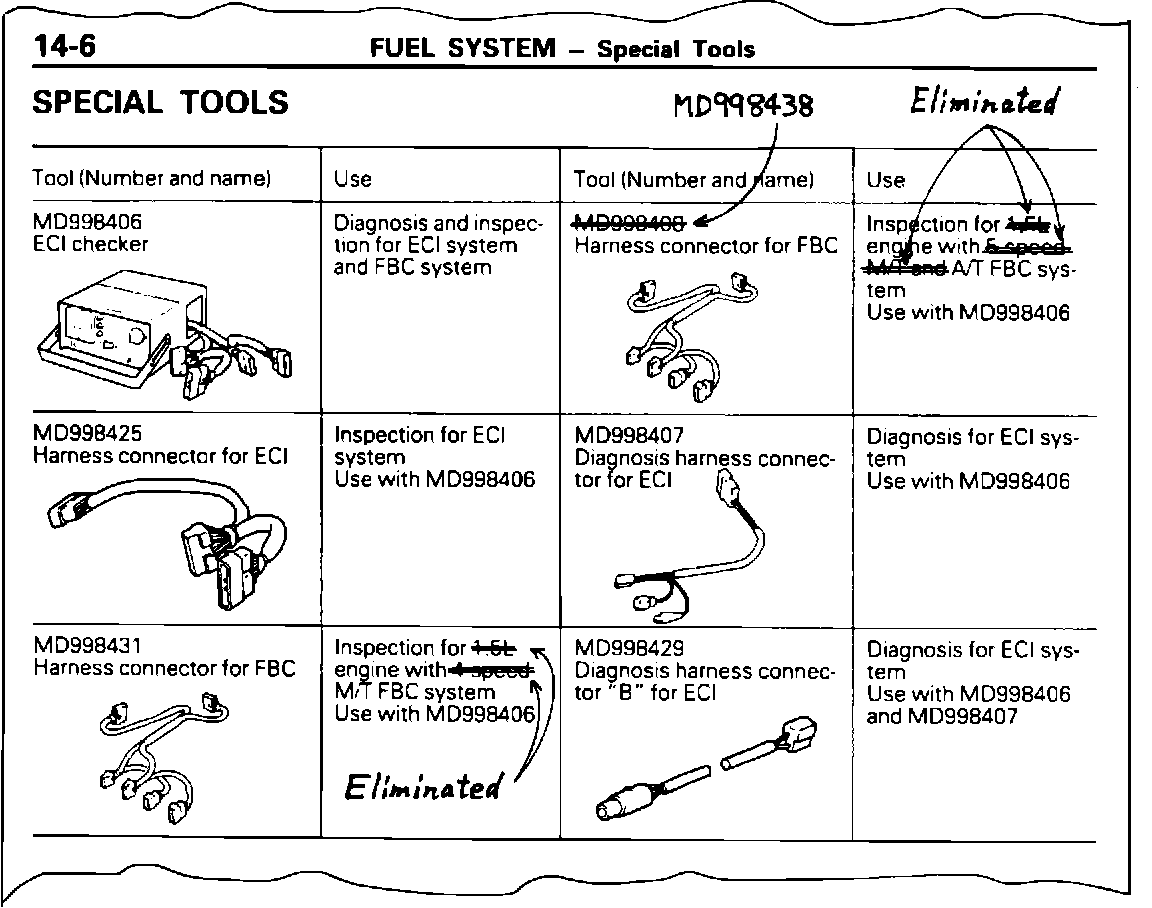

CORRECTION PAGE 14-6 FUEL SYSTEM - SPECIAL TOOLS Change part numbers and applications as indicated in the illustration below.

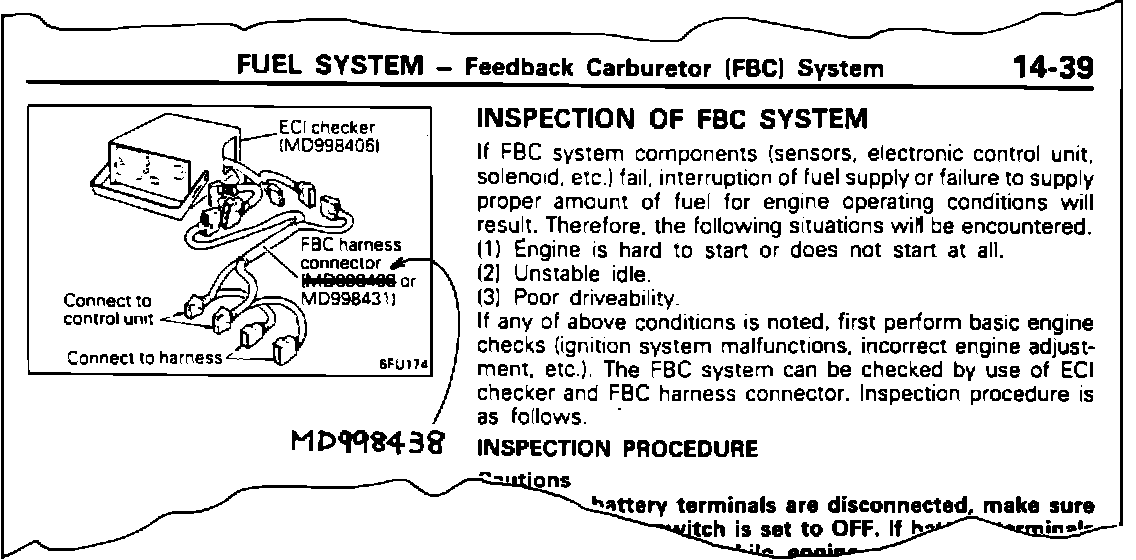

1986 MIRAGE SERVICE MANUAL PAGE 14-39 FUEL SYSTEM - FEEDBACK CARBURETOR (FBC) SYSTEM Change the special tool number in the illustration as shown below.
PAGES 14-40 THROUGH 14-43 FBC SYSTEM CHECK PROCEDURE CHARTS Revise certain voltage specifications to indicate System Voltage as illustrated on Pages 3, 4, 5, and 6.

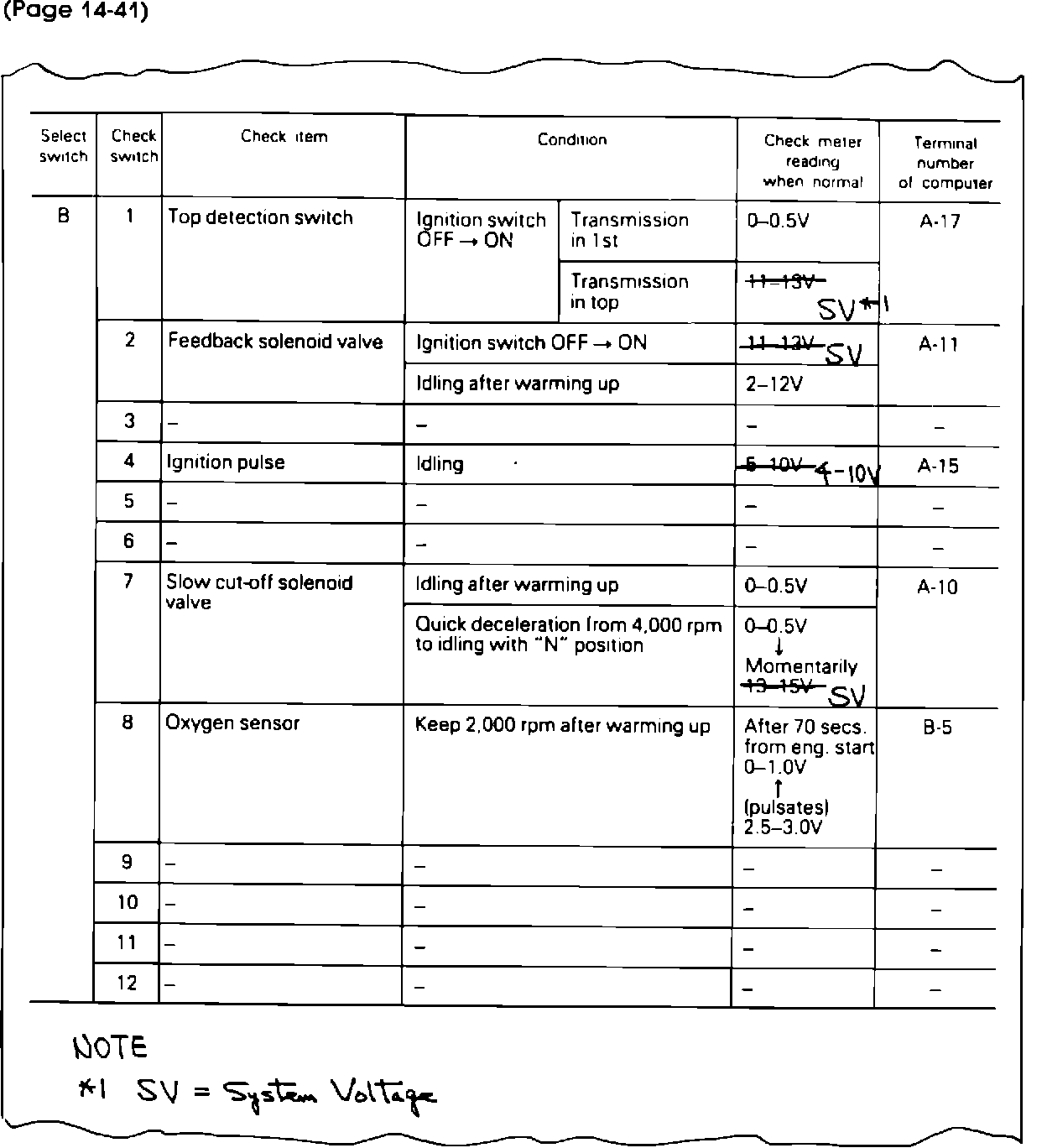

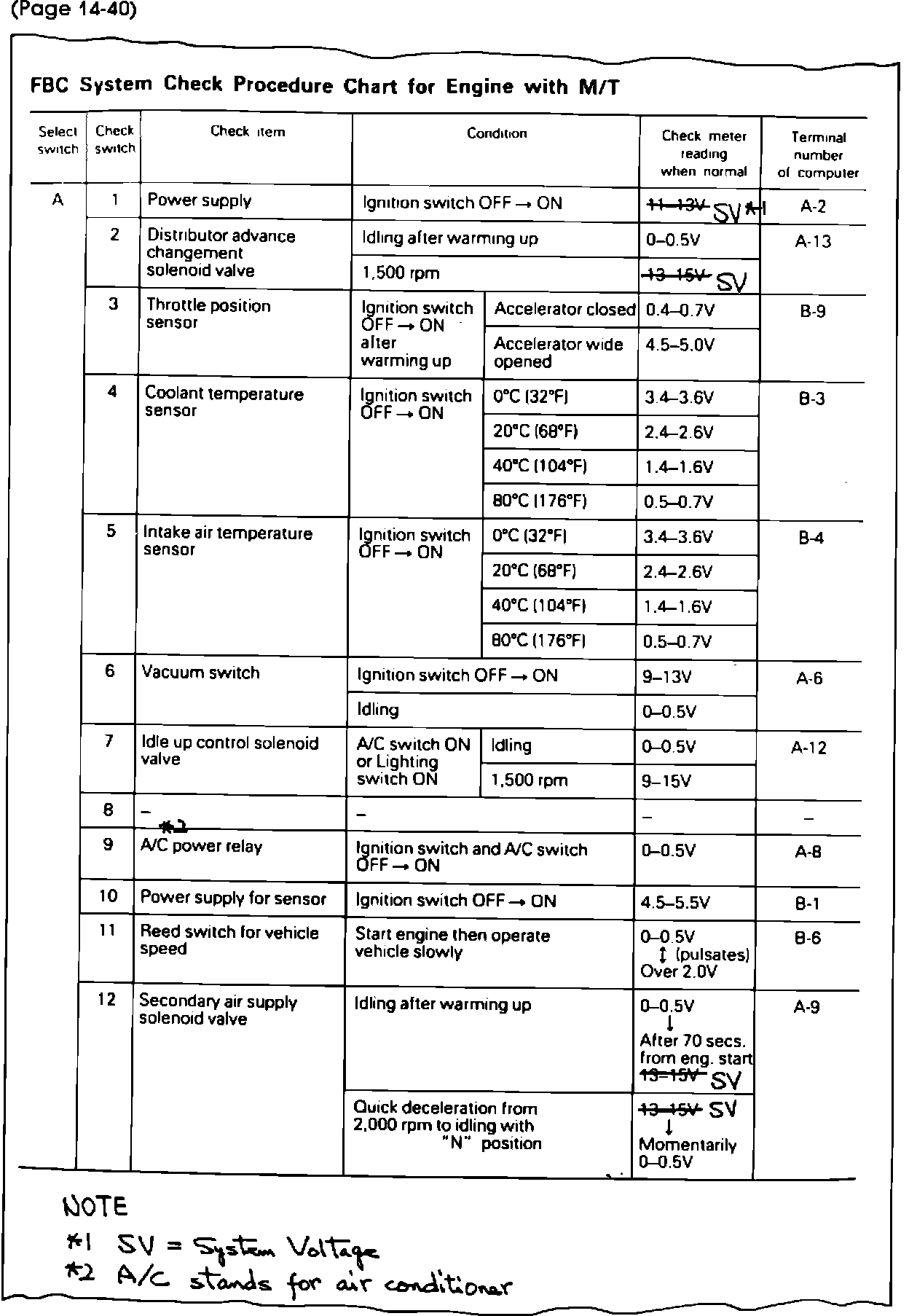

1986 MIRAGE SERVICE MANUAL PAGES 14-40 and 14-41 FUEL SYSTEM - Feedback Carburetor (FBC) System
Change the System Check Procedure Chart as shown below and on Page 4.

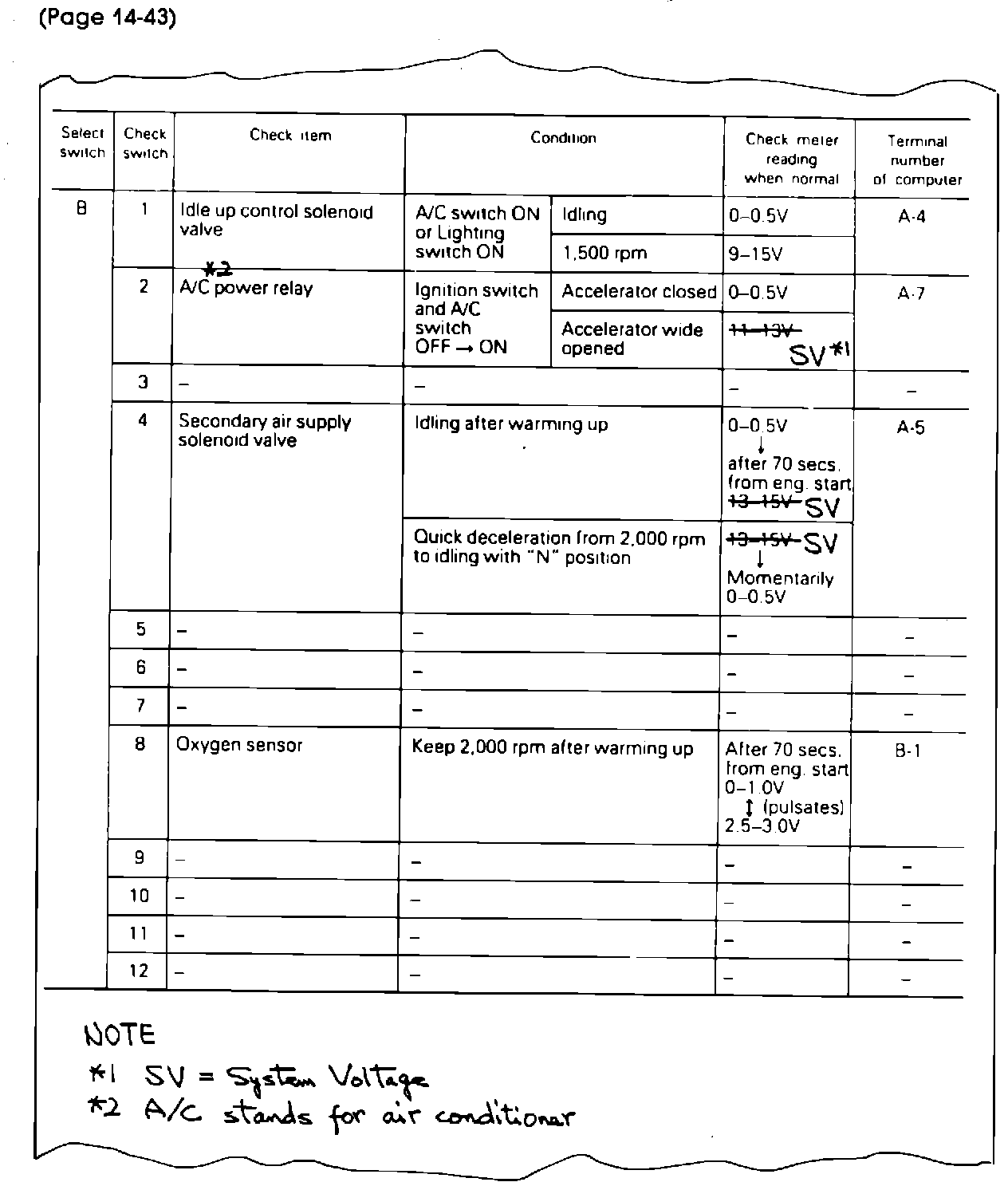

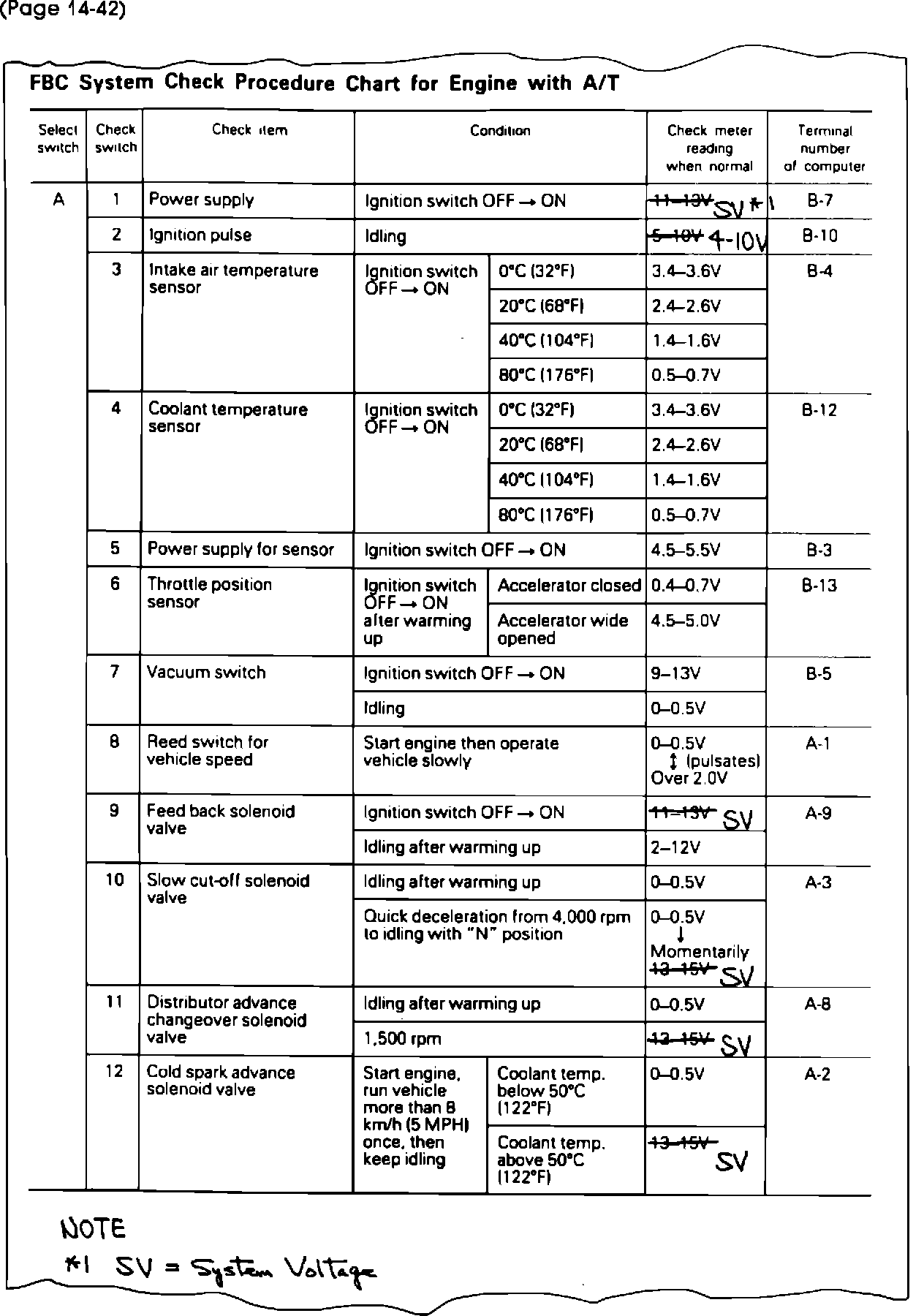

1986 MIRAGE SERVICE MANUAL PAGES 14-42 and 14-43 FUEL SYSTEM - Feedback Carburetor (FBC) System Revise the FBC System Check Procedure Chart for Engine With A/T as shown below and on page 6.
