FBC System - Service Manual Update
85mitsubishi03SUBJECT:
MIRAGE FBC SYSTEM - SERVICE MANUAL UPDATE
NO. STB-85-14-012
DATE December, 1985
MODEL 1986 Mirage
PURPOSE STB Revision STB 85-14-012
This bulletin is issued to correct the illustration of the Feedback Carburetor (FBC) System in the 1986 Mirage Service Manual. As reference to this bulletin, please write the STB number in the revision box on Page 14-36.
DESCRIPTION

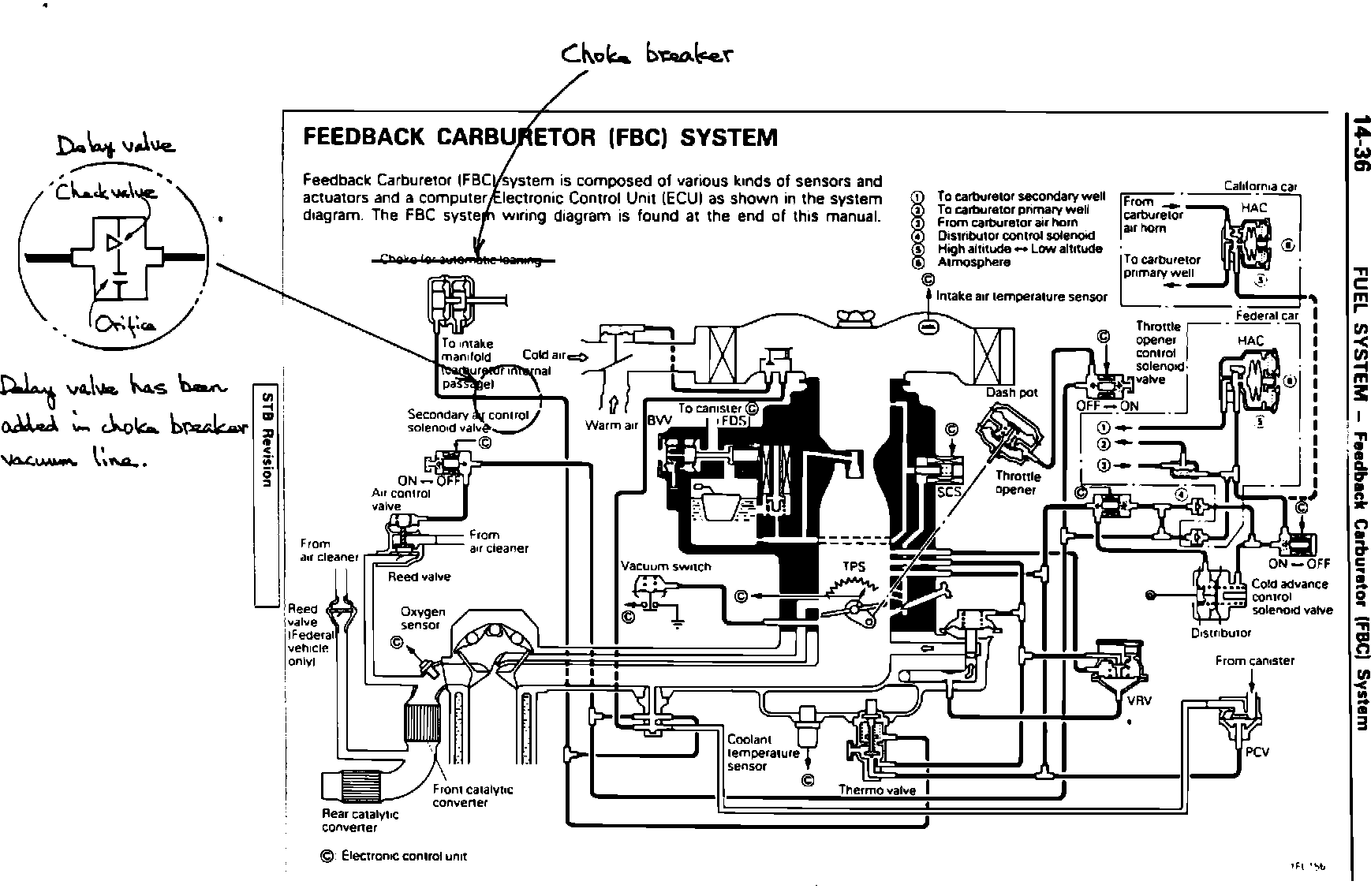

PAGE 14-36 FEEDBACK CARBURETOR (FBC) SYSTEM
A delay valve has been added in the choke breaker vacuum line as illustrated on Page 2 of this bulletin.
