Emission System - EGR Update
86mitsubishi03SUBJECT: 1986 MIRAGE SERVICE MANUAL UPDATE - EMISSION CONTROL SYSTEM
NO. STB-86-25-001
DATE February, 1986
MODEL 1986 Mirage
STB Revision 86-25-001
PURPOSE This bulletin is issued to update the EGR Valve illustration in the 1986 Mirage Service Manual. As reference to this bulletin, please write the STB number in the revision box on Page 25-12.

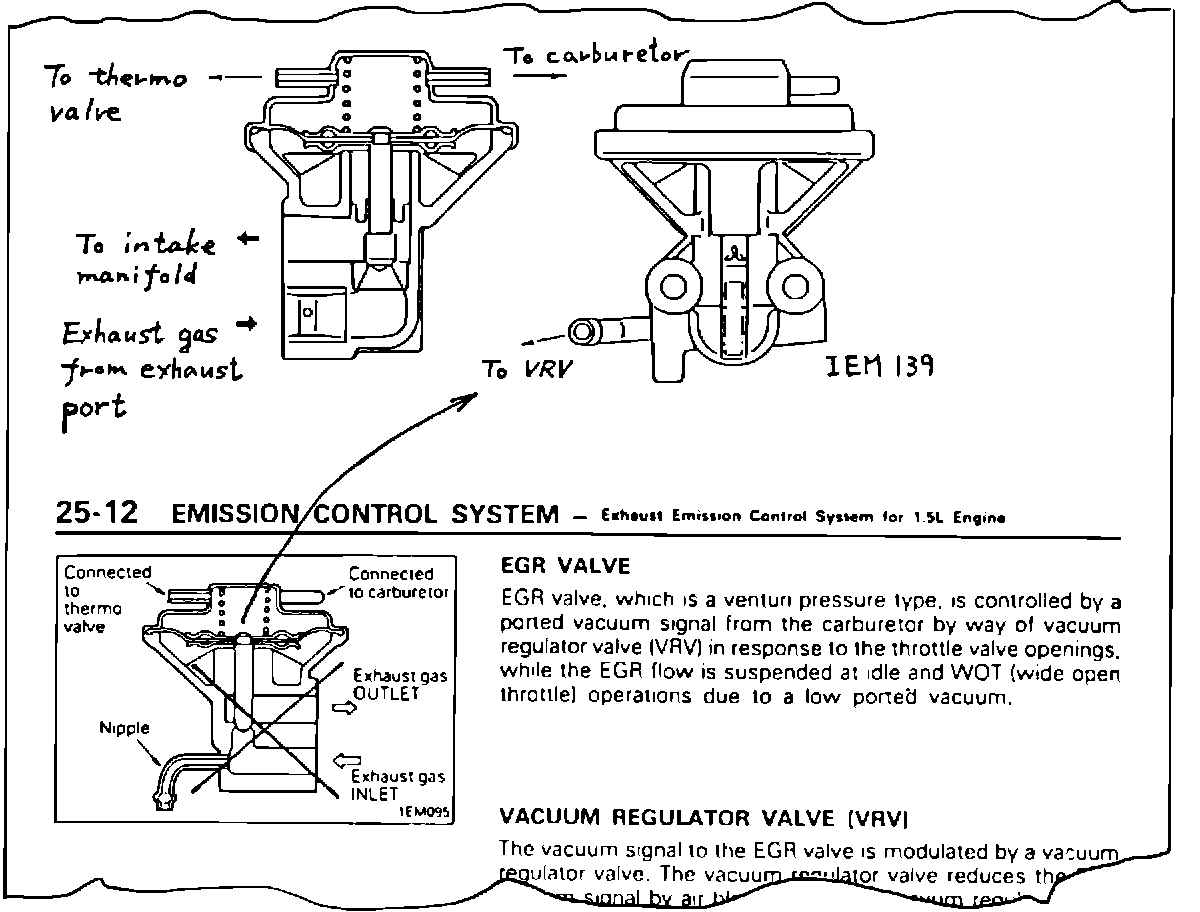

PAGE 25-12 EMISSION CONTROL SYSTEM Callouts for exhaust gas flow and VRV nipple have been revised, and a second view of the EGR valve has been added as illustrated below.
