Home
>>
Mitsubishi
>>
1986
>>
Mirage L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Feedback Carburetor
Feedback Carburetor

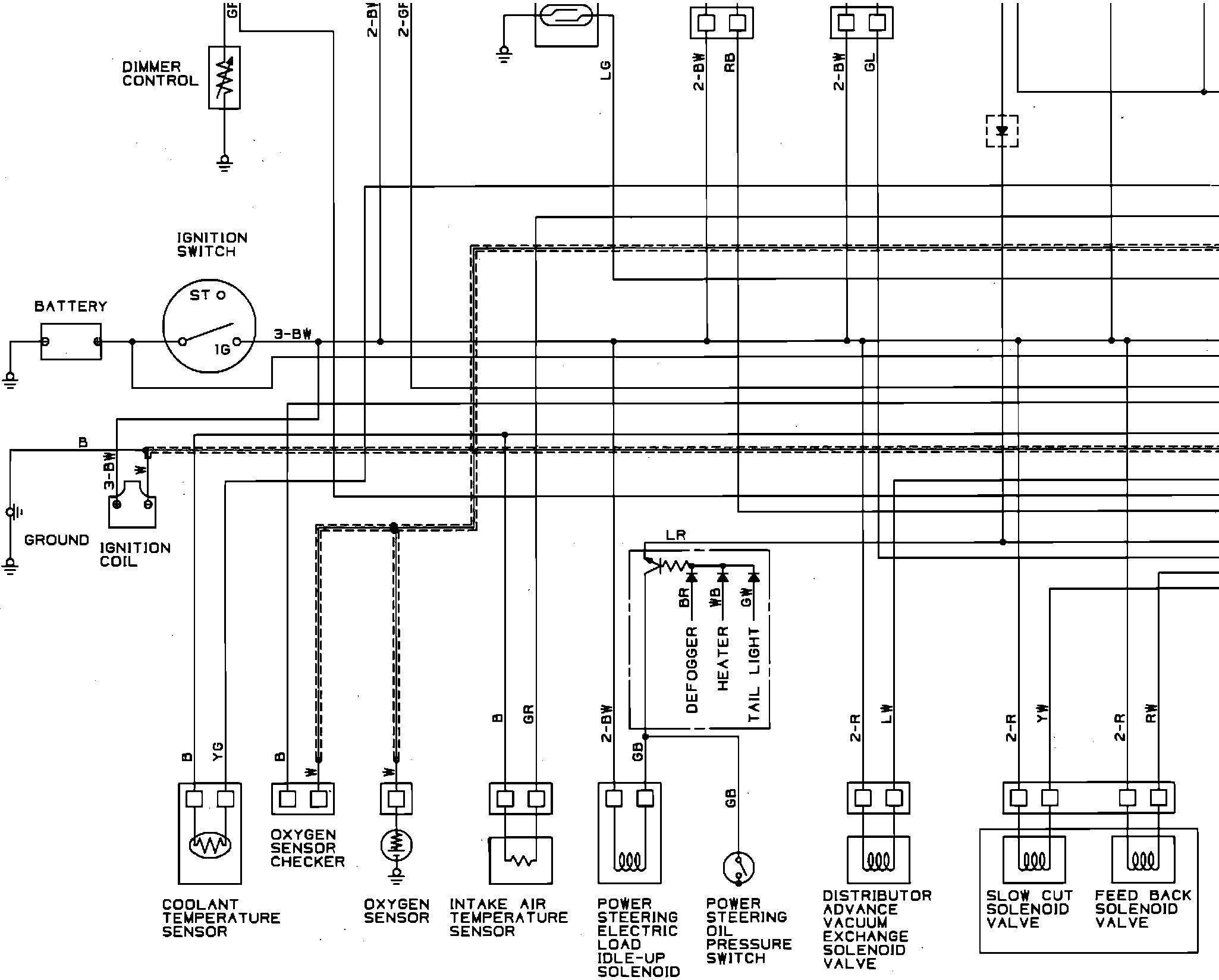

�nb/��b/W�b/Fig. 35d Feedback Carburetor.:
