Blower Motor: Service and Repair

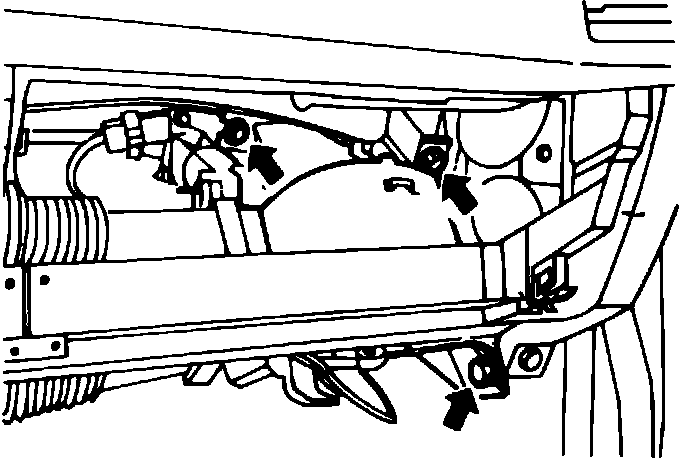

Fig. 37 Blower assembly attaching bolt locations.:

1. Disconnect battery ground cable
2. Remove glove compartment from instrument panel.
3. Remove parcel tray attaching screws and parcel tray.
4. Remove blower assembly attaching screws and blower assembly, Fig. 37.
5. Remove blower motor to mounting attaching screws, then remove blower motor.
