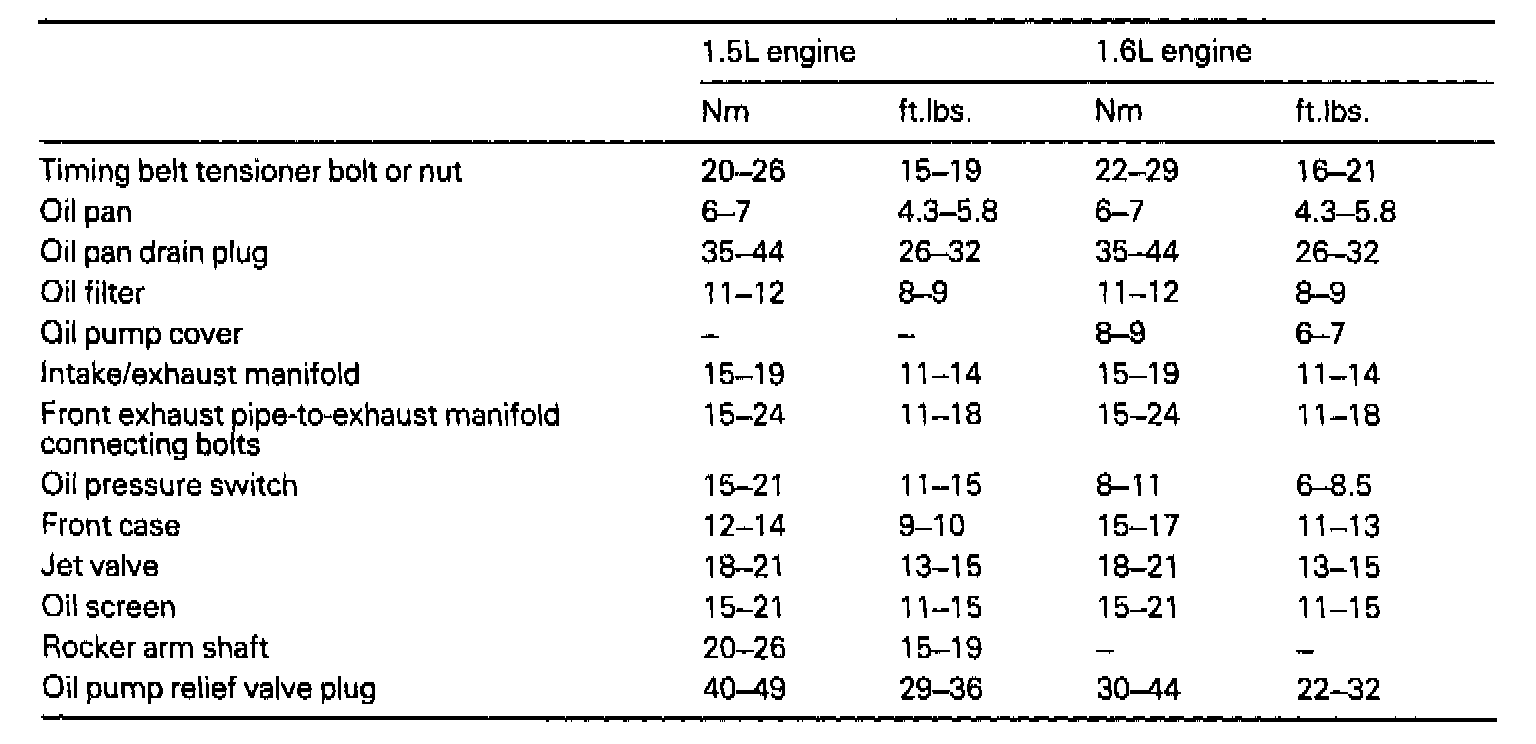

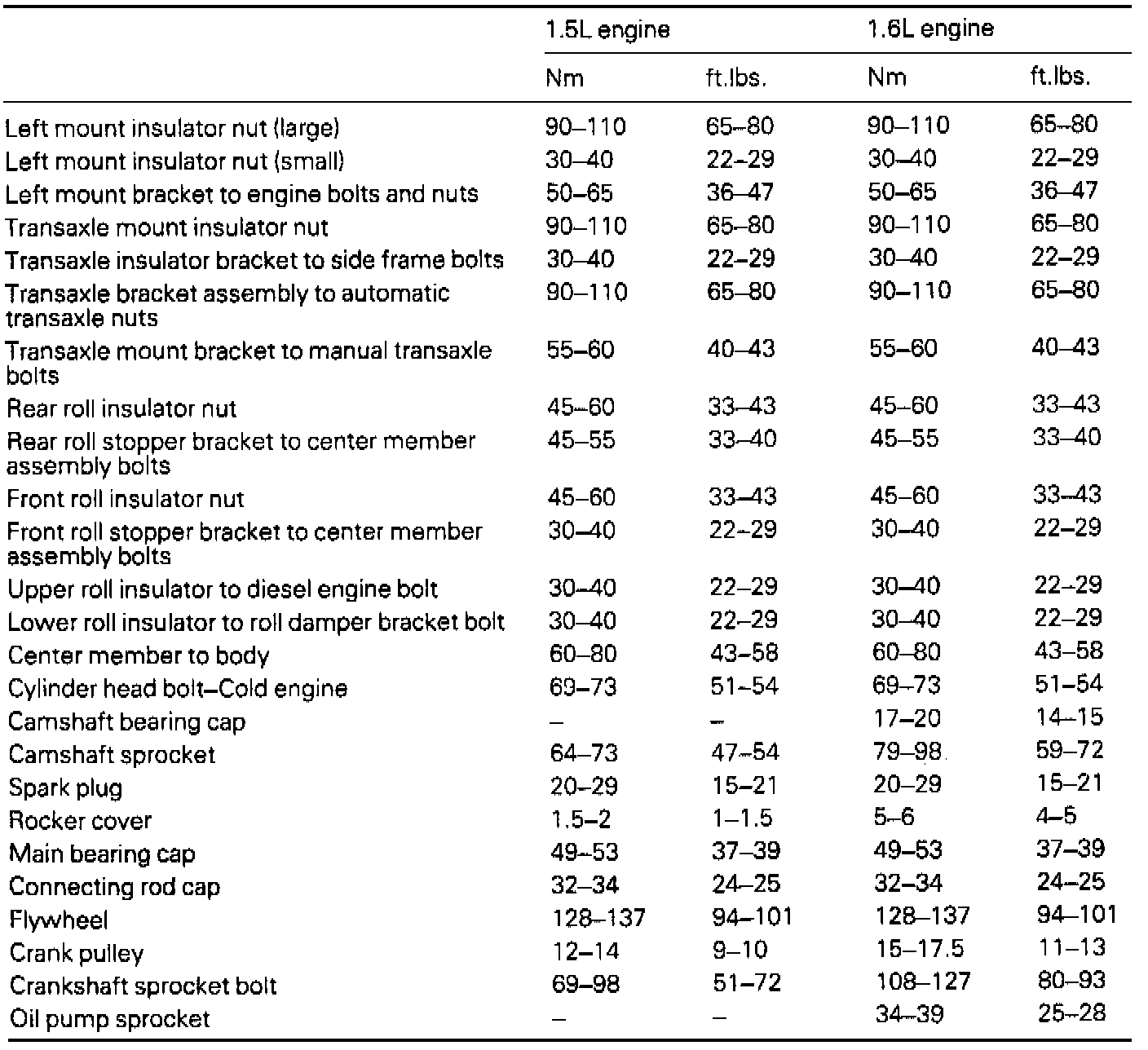

Torque Specifications







Cylinder Head Bolt Removal Sequence - 1.5 Engine:




Cylinder Head Bolt Torque Sequence - 1.5 Engine:




Cylinder Head Bolt Removal Sequence - 1.6 Engine:




Cylinder Head Bolt Torque Sequence - 1.6 Engine:
