License Plate Fasteners - Missing

86mitsubishi03

SUBJECT:

MIRAGE/GALANT LICENSE PLATE FASTENERS
No. STB-86-23-005

DATE June, 1986

MODEL 1986 Mirage and Galant

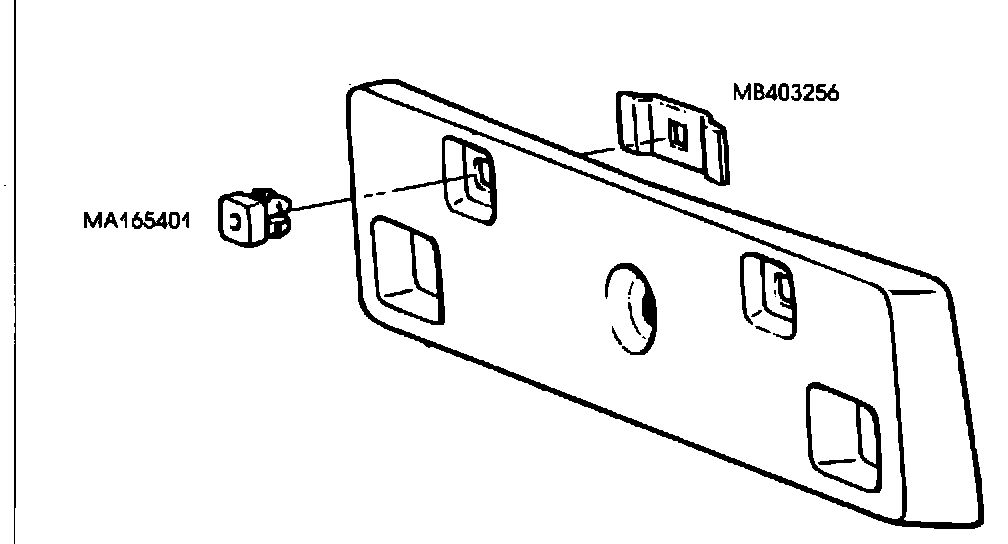

FIGURE 1:

PURPOSE

If you should find that the license plate fasteners are missing on a new Mirage or Galant, they should be replaced with parts available through the Parts channel. See Fig. 1.
PARTS AVAILABLE

Plate, Garnish (Nut Retainer) MB403256 (2 pcs)
Nut MA165401 (2 pcs)

WARRANTY INFORMATION

Labor Operation Code: 23 40 32 01

Time Allowance: 0.2 hr.
