A/T - KM175 Service Manual Update

85mitsubishi05

SUBJECT:

KM175 A/T SERVICE MANUAL UPDATE

NO.

STB-85-21-008

DATE

December, 1985

MODEL 1986 Galant

STB Revision
PURPOSE STB-85-21-008

This bulletin is issued to add to the transaxle adjustment procedure in the 1986 Galant Service Manual. As reference to this bulletin, please write the STB number on Page 21-103 of the 1986 Galant Service Manual.




PAGE 21-103 COMPONENT SERVICE - VALVE BODY

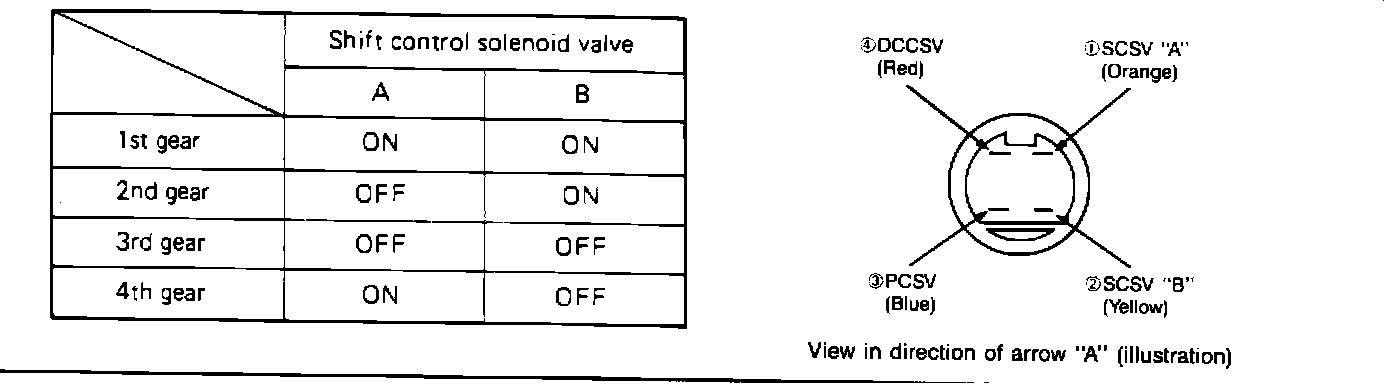

In the chart at the top of the page, change the wire colors as indicated in the chart and illustration reproduced below.




DIAGNOSTIC TIP

The chart below may be helpful in determining the correct duty cycle for the shift control solenoid valves, and the illustration of the end of the connector shows the locations of the terminals.
