A/T - KM175 Reducing Pressure Update
86mitsubishi03SUBJECT:
KM175 REDUCING PRESSURE - SERVICE MANUAL UPDATE
NO. STB-86-21-010
DATE October, 1986
MODEL 1986 Galant
STB Revision
STB-86-21-010
PURPOSE
This bulletin corrects an error in the 1986 Galant Service Manual. The automatic transmission reducing pressure specification has been changed. As reference to this bulletin, please write the STB number in the revision box on Page 21-37.
REVISION PAGE 21-37 SERVICE ADJUSTMENT PROCEDURES - MAINTENANCE AND ADJUSTMENT

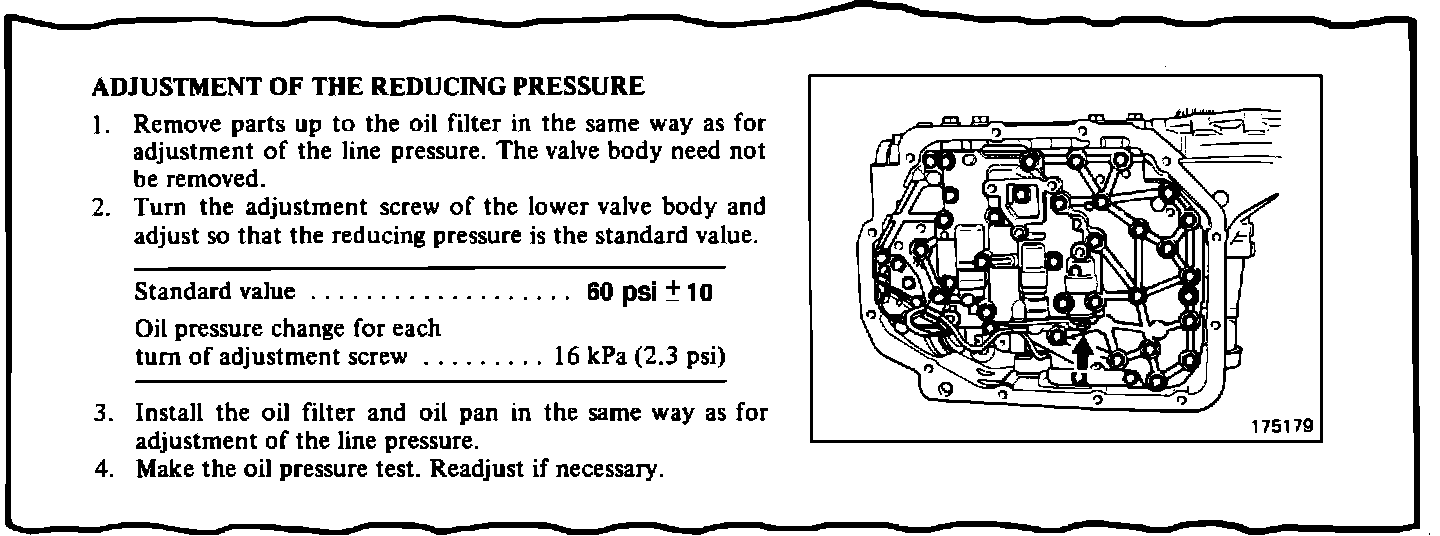

In the specifications table under step 2, "Adjustment of Reducing Pressure", change the reducing pressure to 60 psi +/- 10 psi as indicated in the illustration below.

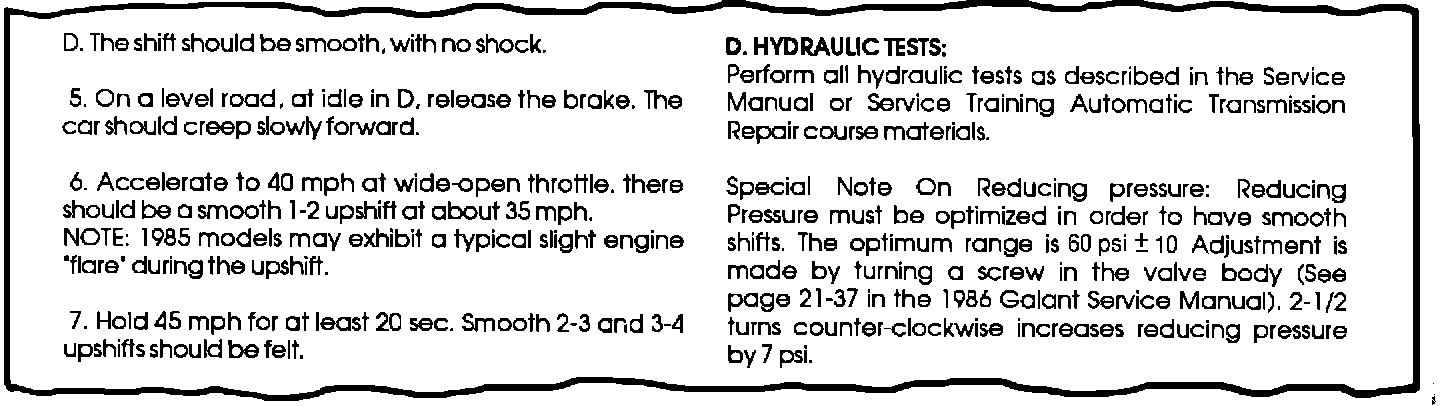

This change also affects Page 6 of STB-86-21-006 as illustrated below.
