Fuel Injector - Resistance Specification Manual Update
86mitsubishi02SUBJECT:
GALANT FUEL INJECTOR RESISTANCE SPECIFICATIONSERVICE MANUAL UPDATE
NO. STB-86-14-006
DATE August, 1986
MODEL 1986 Galant
STB Revision
STB-86-14-006
PURPOSE This bulletin is issued to alter the Fuel Injector resistance specification in the 1986 Galant Service Manual. As reference to this bulletin, please write the STB number in the revision box on Page 14-53.
SERVICE MANUAL AFFECTED
1986 Galant, Group 14, Fuel System, Page 14-53.
SPECIFICATION CHANGE
The fuel injector resistance value shown in the service manual as 1.5-2.5 ohms must be changed to 2-3 ohms (at 20~C/68~F) as shown below.

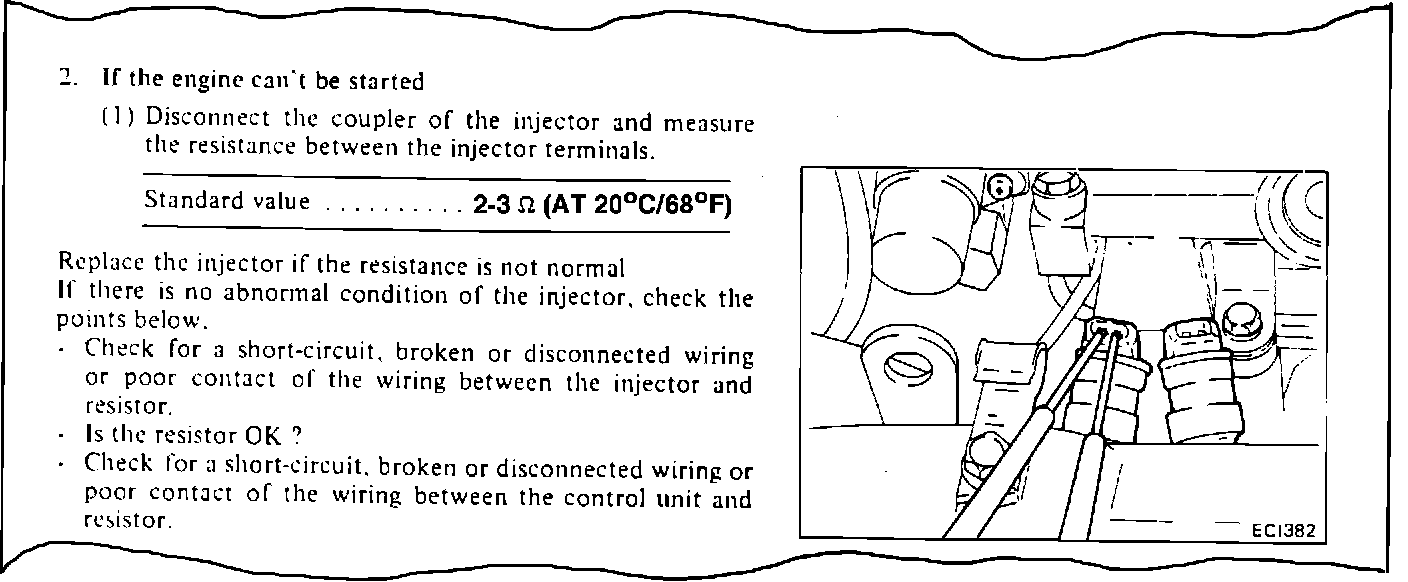

PAGE 14-53, 1986 GALANT SERVICE MANUAL.
