Complete Emission Control System Diagram
Complete Emission Control System Diagram

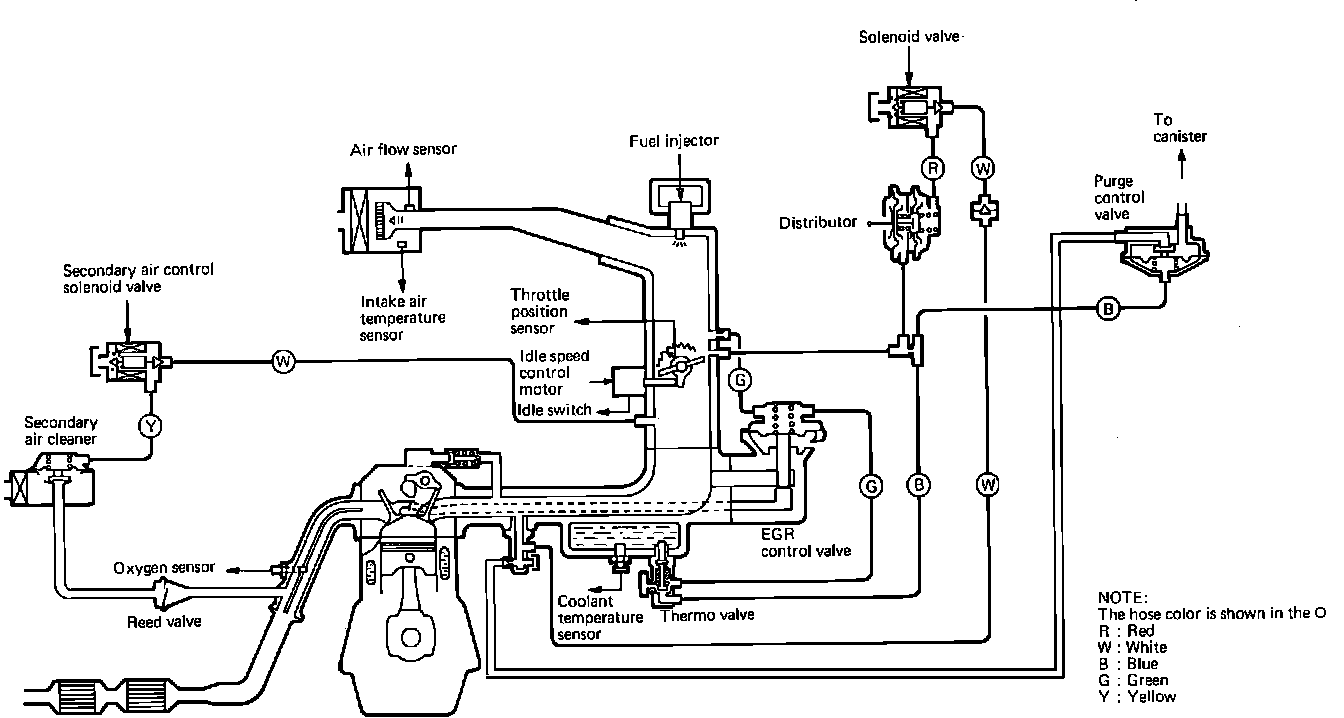

Fig. 6 Complete emission control system diagram:
