SUBJECT: 1985-1986 GALANT VALVE SPECIFICATION

SERVICE MANUAL UPDATE
NO. TSB-89-11-009

DATE December, 1989

MODEL Galant
TSB Revision TSB-89-11-009






PURPOSE

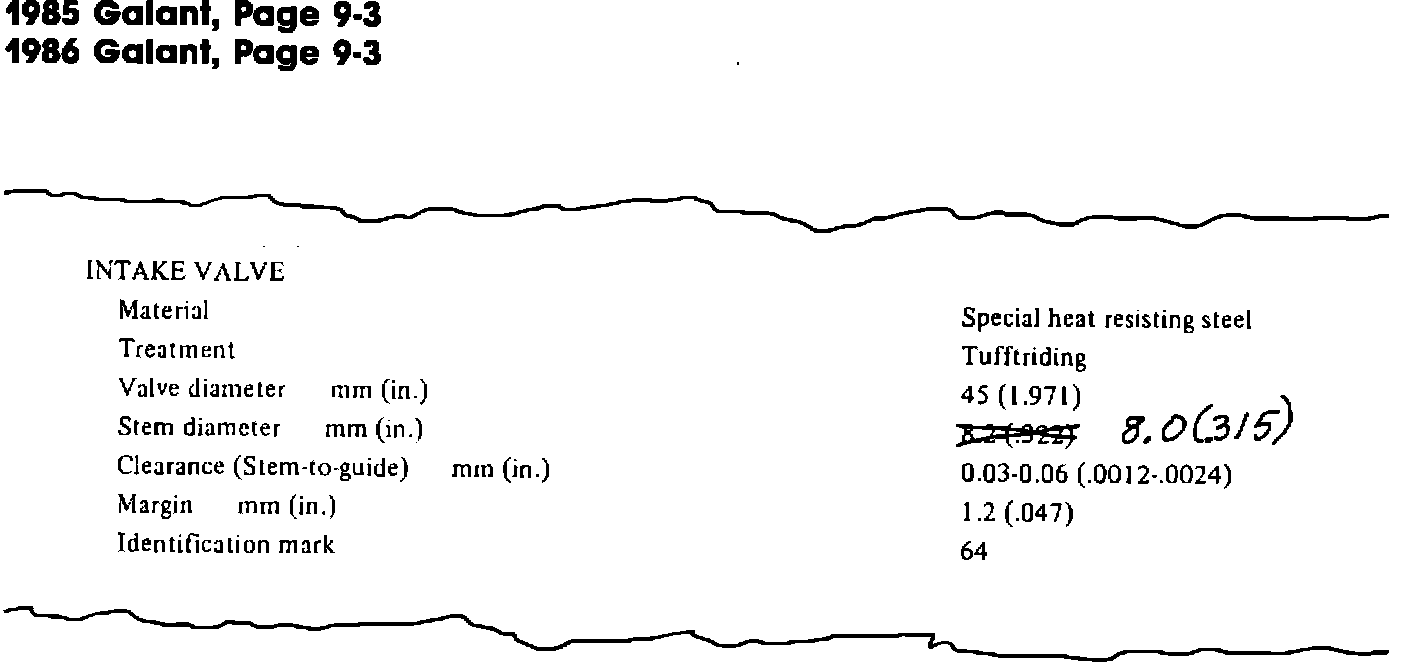

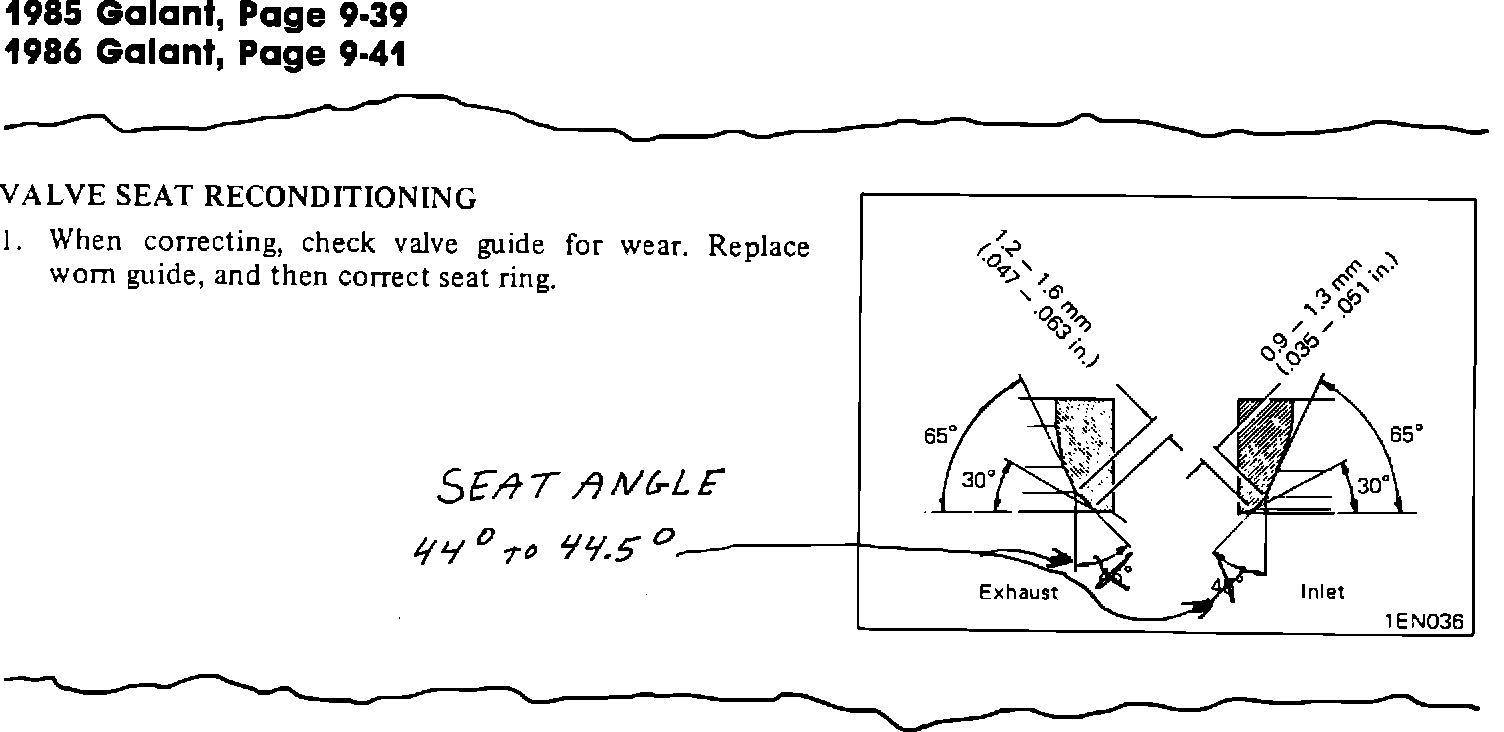

References in the affected Service Manuals indicate that the intake valve stem diameter as 8.2 mm (.322 in.). The correct stem diameter is 8.0 mm (.315 in.). The valve seat angle has also been updated from 45 degrees to 44-44.5 degrees. Please make the indicated corrections to the affected Service Manual pages and write this Technical Service Bulletin number in the TSB Revision boxes.

MANUALS AFFECTED

MANUAL PAGE

1985 Galant 9-3, 9-39

1986 Galant 9-3, 9-41
