Mitsubishi
>>
1986
>>
Galant L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
Steering

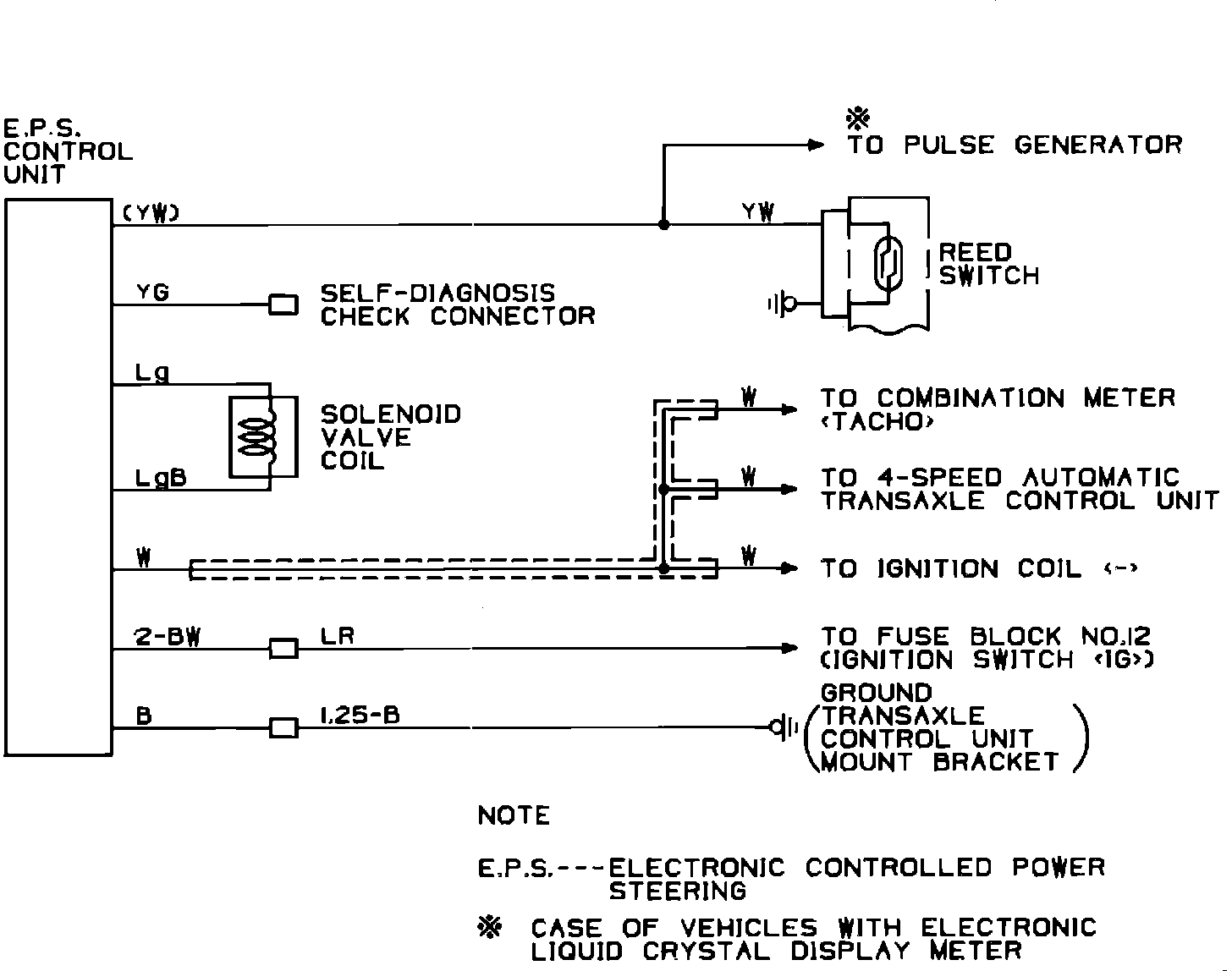

Fig. 25 Power Steering Control (EPS):
